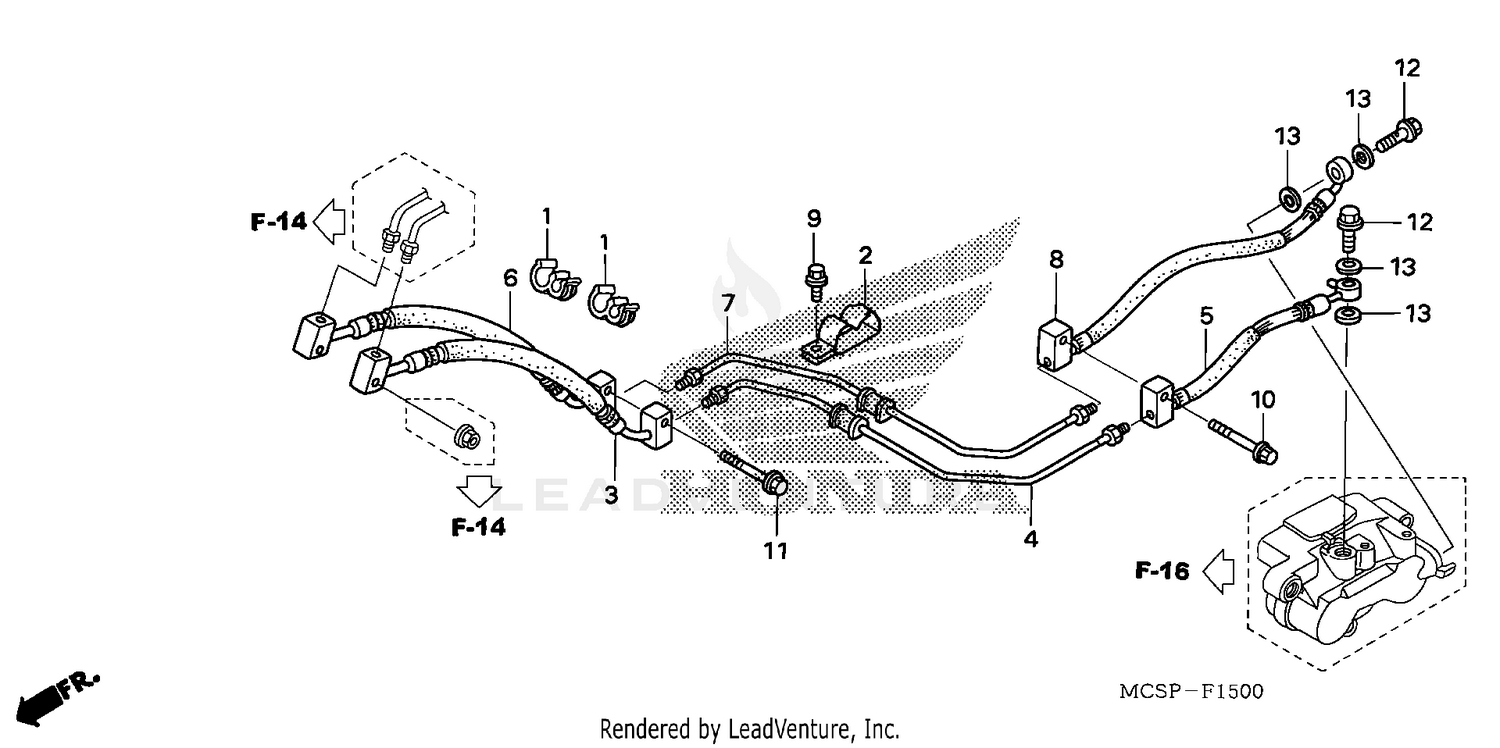

Rear Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, PIPE
17368-KV7-671
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, RR. BRAKE PIPE
43155-MCS-G00
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE B, RR. BRAKE
43313-MCS-G01
|
$43.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE C, RR. BRAKE
43314-MCS-G00
|
$26.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE C, RR. BRAKE
43315-MCS-G01
|
$41.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE B, SECOND BRAKE MASTER CYLINDER
43335-MCS-G02
|
$45.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE E, SECOND BRAKE MASTER CYLINDER
43336-MCS-G00
|
$20.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE C, SECOND BRAKE MASTER CYLINDER
43337-MCS-G01
|
$41.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X12)
90103-MCS-G00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X38)
90106-MCS-G00
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X42)
90111-MCS-G01
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
