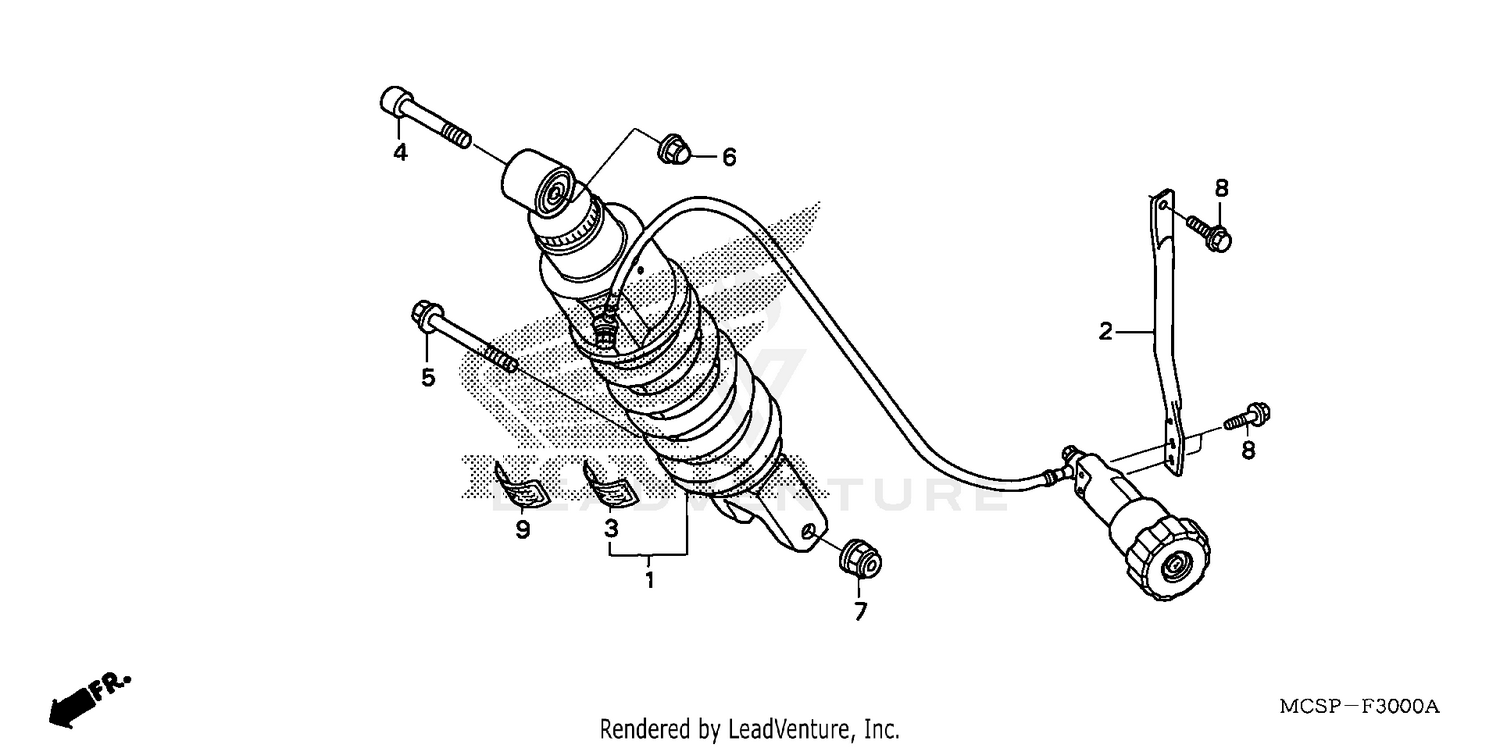

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR.
52400-MCS-A31
|
$1,158.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, RR. CUSHION PRELOAD ADJUSTER
80113-MCS-G00
Superseded by 80113-MCS-D90
|
$18.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, RR. CUSHION PRELOAD ADJUSTER
80113-MCS-D90
|
$18.04 | ||
|
Unavailable |
|||
|
#3
LABEL, RR. DAMPER
87516-MBL-610
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SOCKET (10X55)
90101-MCS-G00
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE (10X66)
90182-MB2-003
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE CAP (10MM)
90201-HA0-000
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CAP (10MM)
90202-HA0-000
Superseded by 90201-HA0-000
|
$7.75 | ||
|
Unavailable |
|||
|
#7
NUT U, FLANGE (10MM)
90304-MCS-G00
Superseded by 90304-MCS-G01
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT U, FLANGE (10MM)
90304-MCS-G01
|
$3.51 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6X14)
95701-06014-07
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
