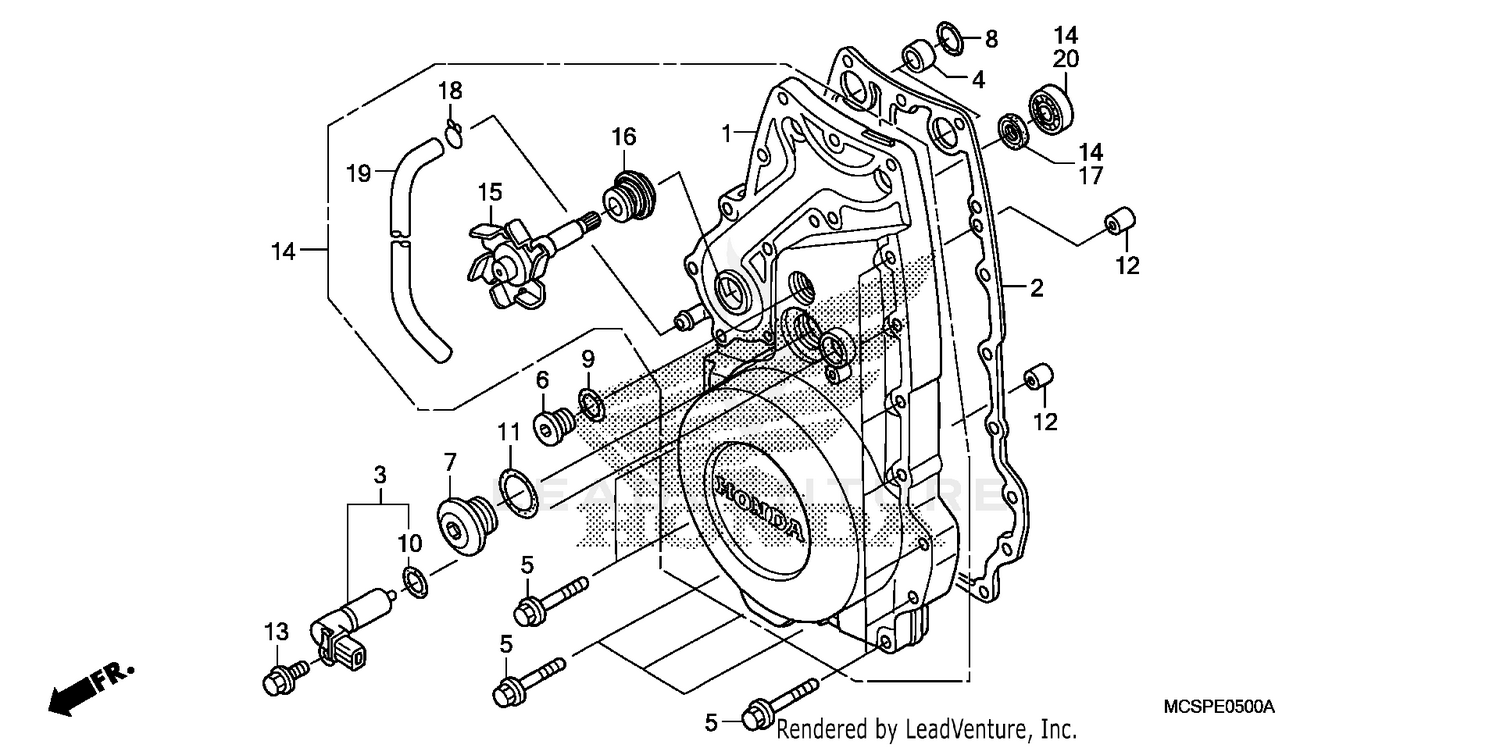

Front Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FR. CRANKCASE
11300-MCS-305
|
$522.25 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, FR. CRANKCASE
11341-MCS-010
Superseded by 11300-MCS-305
|
$522.25 | ||
|
Unavailable |
|||
|
#2
GASKET, FR. COVER
11394-MCS-000
Superseded by 11394-MCS-020
|
$24.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, FR. COVER
11394-MCS-010
Superseded by 11394-MCS-020
|
$24.29 | ||
|
Unavailable |
|||
|
#3
GENERATOR ASSY., PULSE
30300-MCS-003
|
$85.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. FORK (OUTER)
51486-087-711
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE (6X40) (NSHF)
90004-GHB-710
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP (14MM)
90084-KY2-000
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP (30MM)
90087-KT7-000
|
$22.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (19.9X3.1)
91301-MCS-A10
Superseded by 91301-MCS-A11
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (19.9X3.1)
91301-MCS-A11
|
$4.15 | ||
|
Unavailable |
|||
|
#9
O-RING (13.8X2.5)
91303-377-000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (16X2.1) (NOK) (Honda Code 3301793)
91309-PX4-003
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (29.7X2.4) (NOK)
91356-425-003
Superseded by 91356-425-005
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (29.7X2.4) (NOK)
91356-425-005
|
$3.34 | ||
|
Unavailable |
|||
|
#12
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
IMPELLER, WATER PUMP
19210-MCS-000
|
$66.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, MECHANICAL
19217-MAL-300
|
$61.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (12X22X5)
91201-148-003
Superseded by 91201-965-000
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (12X22X5)
91201-965-000
|
$4.87 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6200)
96100-62003-00
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
