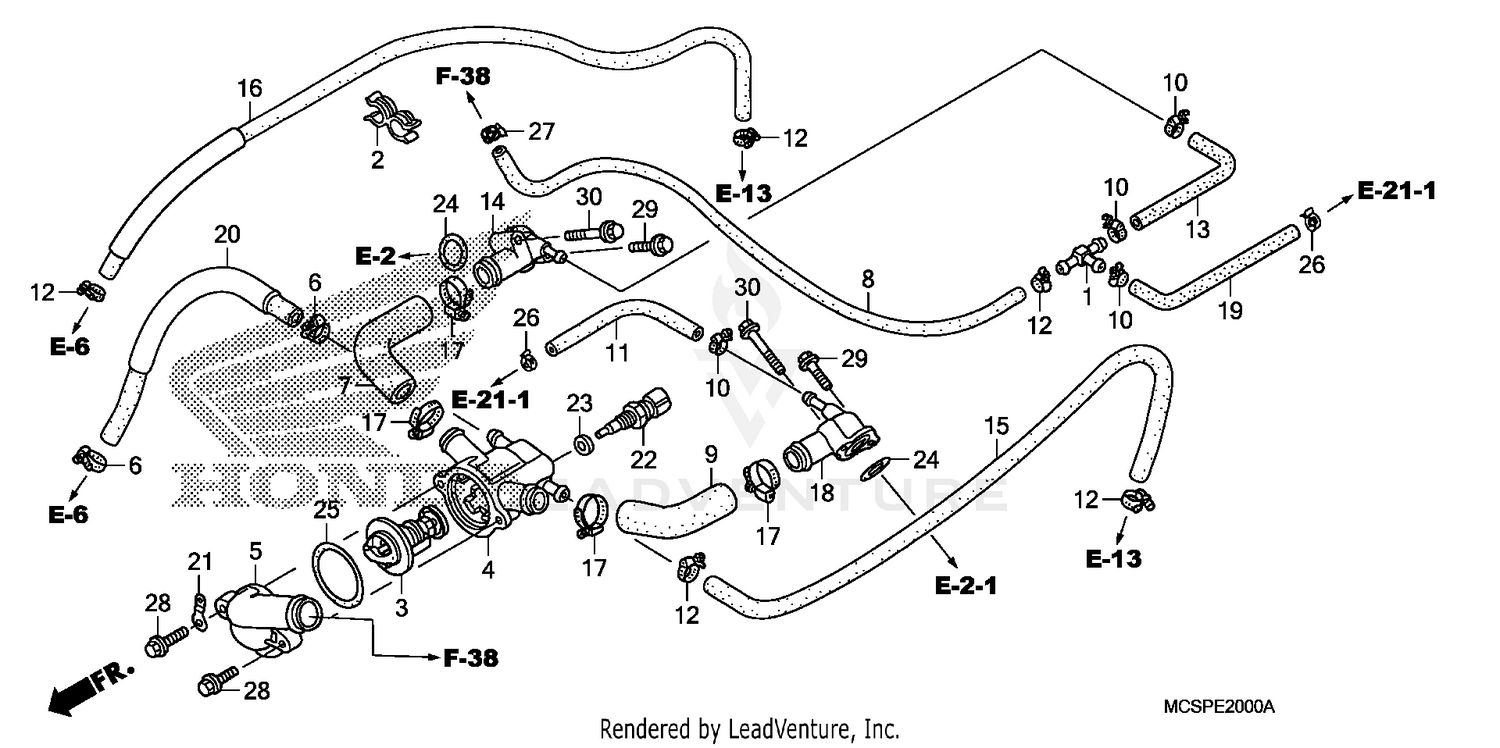

Water Pipe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, FUEL TUBE
16961-MK7-000
|
$25.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, TUBE
17450-KY7-740
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
THERMOSTAT
19300-MBT-003
|
$57.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
CASE, THERMOSTAT
19310-MCS-010
Superseded by 19310-MCS-D80
|
$97.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
CASE, THERMOSTAT
19310-MCS-D80
|
$97.09 | ||
|
Unavailable |
|||
|
#5
COVER, THERMOSTAT
19315-MCS-010
|
$24.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, HOSE (25MM)
19504-KT7-751
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, R. WATER
19504-MCS-010
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE A, WATER
19505-MCS-010
|
$7.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, L. WATER
19506-MCS-010
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, RADIATOR HOSE
19507-MAT-000
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE B, WATER
19507-MCS-000
|
$14.86 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, BREATHER HOSE
19507-MK4-620
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE C, WATER
19508-MCS-010
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, R. WATER
19510-MCS-000
|
$25.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE F, WATER
19512-MCS-000
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE E, WATER
19513-MCS-000
|
$28.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT, L. WATER
19520-MCS-000
|
$25.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE B, IN. MANIFOLD
19522-MZ8-H00
|
$11.92 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE G, WATER
19528-MCS-000
|
$58.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
CONNECTOR, GROUND
32152-MB3-000
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
SENSOR ASSY., WATER TEMPERATURE
37870-MBG-003
|
$96.59 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPECIAL (12MM)
90454-MC7-000
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (21.2X2.4) (ARAI)
91331-MCP-900
Superseded by 91331-PC9-003
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (43.5X2)
91361-MCS-A10
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP, FUEL HOSE (D10.5)
91406-SL4-931
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP, TUBE (D12.5)
95002-41250-08
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
