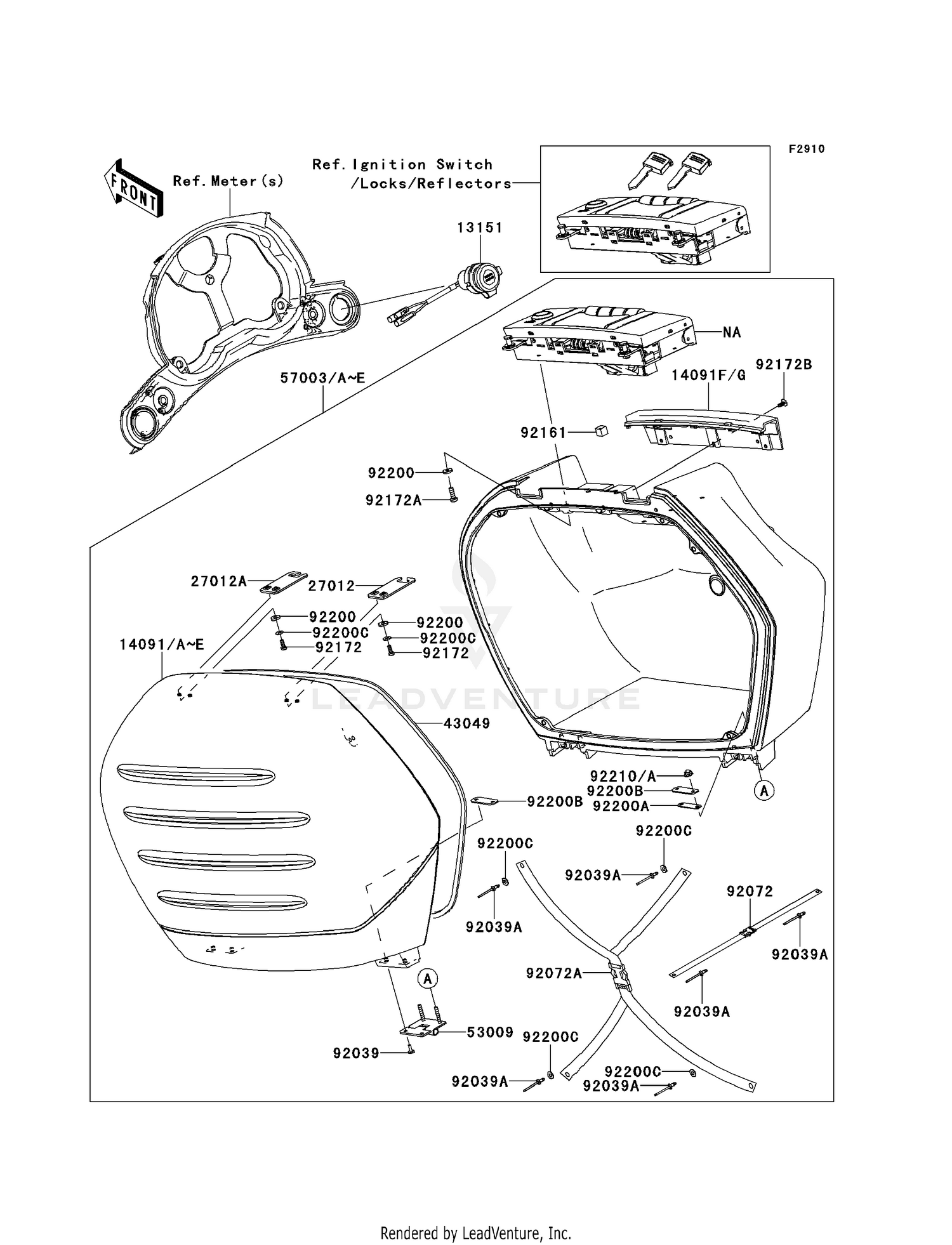

Accessory Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13151
SWITCH-COMP
13151-0040
|
$135.30 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,SIDE BAG,LH,M.B
14091-0919-17K
|
$530.97 | ||
|
Available to order. Add to View Price |
|||
|
#14091B
COVER,SIDE BAG,LH,N.C
14091-0919-25T
|
$532.17 | ||
|
Available to order. Add to View Price |
|||
|
#14091C
COVER,SIDE BAG,RH,M.B
14091-0920-17K
|
$530.97 | ||
|
Available to order. Add to View Price |
|||
|
#14091E
COVER,SIDE BAG,RH,N.C
14091-0920-25T
|
$532.17 | ||
|
Available to order. Add to View Price |
|||
|
#14091G
COVER,SIDE BAG,LID
14091-1688
|
$127.75 | ||
|
Available to order. Add to View Price |
|||
|
#27012
HOOK
27012-0110
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
|
#27012A
HOOK
27012-0111
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING
43049-0010
|
$16.12 | ||
|
Available to order. Add to View Price |
|||
|
#53009
HINGE
53009-0020
|
$29.28 | ||
|
Available to order. Add to View Price |
|||
|
#57003A
BAG-ASSY,LH,BODY BLK+
57003-0034-18P
|
$924.36 | ||
|
Available to order. Add to View Price |
|||
|
#57003B
BAG-ASSY,LH,BODY BLK+
57003-0034-26A
|
$976.55 | ||
|
Available to order. Add to View Price |
|||
|
#57003D
BAG-ASSY,RH,BODY BLK+
57003-0035-18P
|
$924.36 | ||
|
Available to order. Add to View Price |
|||
|
#57003E
BAG-ASSY,RH,BODY BLK+
57003-0035-26A
Superseded by 57003-0104-26A
|
$829.78 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0063
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92039A
RIVET
92039-0072
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND
92072-0082
|
$23.00 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND
92072-1368
|
$47.87 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0573
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,4X12
92172-0303
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW,5X15
92172-0304
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#92172B
SCREW,4X8
92172-0306
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,5MM
92200-0373
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-0374
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER
92200-0375
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92200C
WASHER
92200-0416
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,CAP,4MM
92210-0434
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
