2009 Kawasaki CONCOURS 14 Fuel Tank OEM Parts

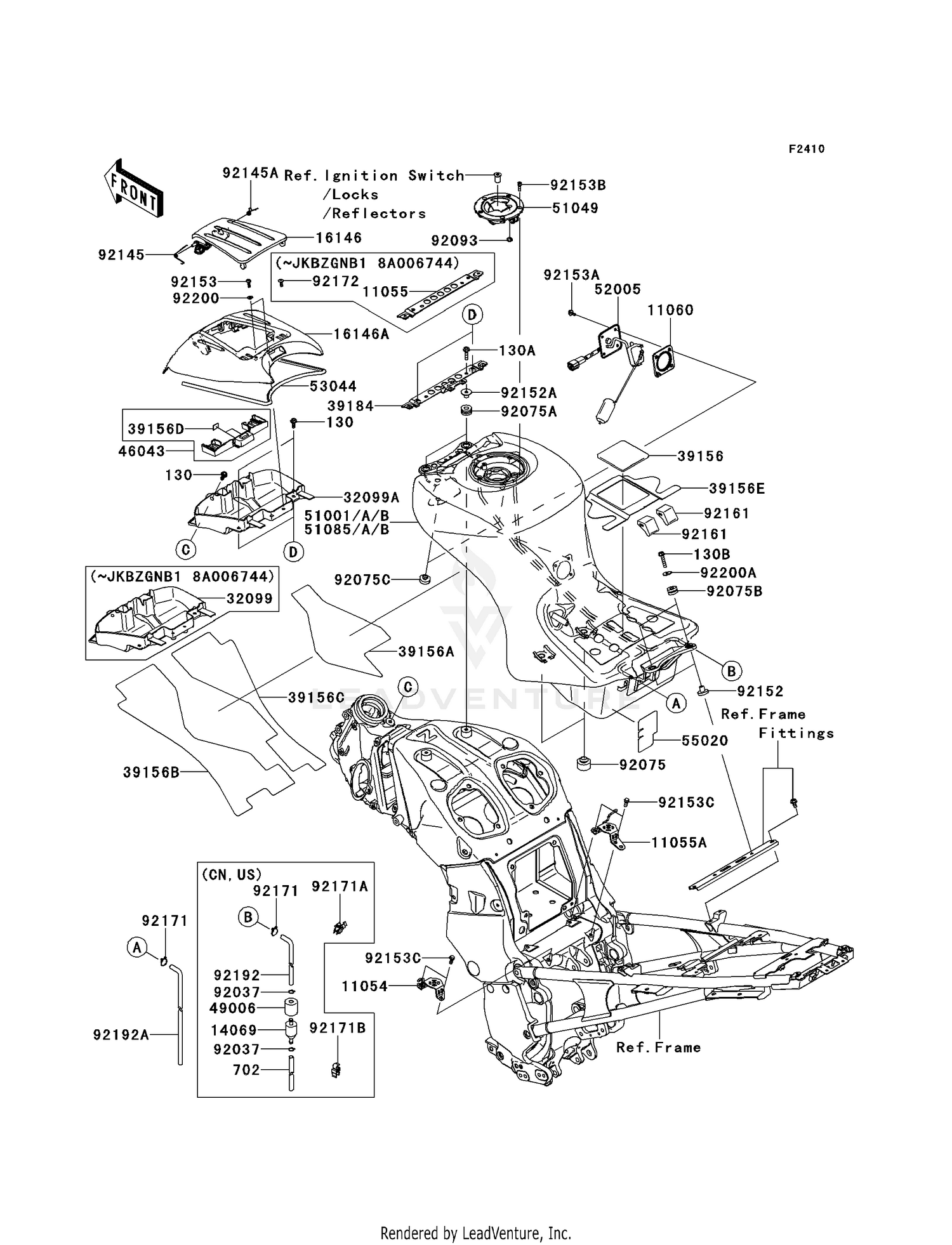

Fuel Tank Diagram

Item	MSRP	Qty
#11054 BRACKET,FUEL TANK,CNT,LH 11054-0681	$9.33
Available to order. Add to View Price
#11055A BRACKET,FUEL TANK,CNT,RH 11055-0348	$15.67
Available to order. Add to View Price
#11060 GASKET,FUEL GAUGE 11060-1952	$20.44
Available to order. Add to View Price
#14069 BREATHER 14069-1051	$9.83
Available to order. Add to View Price
#16146 COVER-ASSY 16146-0081	$33.91
Available to order. Add to View Price
#16146A COVER-ASSY 16146-0084	$112.52
Available to order. Add to View Price
#32099A CASE 32099-0039	$90.06
Available to order. Add to View Price
#39156 PAD,SEAT 39156-0129	$5.79
Available to order. Add to View Price
#39156A PAD,FUEL TANK,RH 39156-0147	$8.69
Available to order. Add to View Price
#39156B PAD,FUEL TANK,LH 39156-0173	$42.51
Available to order. Add to View Price
#39156C PAD,FUEL TANK,RH 39156-0174	$42.51
Available to order. Add to View Price
#39156D PAD,SEAT COVER 39156-0176	$2.24
Available to order. Add to View Price
#39156E PAD,FUEL TANK 39156-0373 Superseded by 39156-0592	$8.23
Available to order. Add to View Price
#39184 BRACKET-ASSY,CASE 39184-0012	$29.57
Available to order. Add to View Price
#46043 KNOB-ASSY 46043-0005	$40.29
Available to order. Add to View Price
#51001 TANK-COMP-FUEL,M.D.BL 51001-0216-17K Superseded by 51001-0753-17K	$1,428.70
Available to order. Add to View Price
#51001B TANK-COMP-FUEL,N.C.RE 51001-0216-25T	$1,050.29
Available to order. Add to View Price
#51049 CAP-TANK,FUEL 51049-0012 Superseded by 51049-0744	$130.51
Available to order. Add to View Price
#51085 TANK-COMP-FUEL,M.D,BL 51085-5280-17K	$1,198.28
Available to order. Add to View Price
#51085B TANK-COMP-FUEL,N.C.RE 51085-5280-25T	$1,198.28
Available to order. Add to View Price
#52005 GAUGE,FUEL 52005-0026	$201.05
Available to order. Add to View Price
#53044 TRIM 53044-0028	$40.66
Available to order. Add to View Price
#55020 GUARD,FUEL TANK 55020-0290	$16.83
Available to order. Add to View Price
#92037 CLAMP,TUBE 92037-147	$7.09
Available to order. Add to View Price
#92075 DAMPER 92075-015	$4.84
Available to order. Add to View Price
#92075A DAMPER,10X24X12 92075-1690	$4.84
Available to order. Add to View Price
#92075B DAMPER 92075-209	$4.54
Available to order. Add to View Price
#92075C DAMPER,9X24X14 92075-281	$6.02
Available to order. Add to View Price
#92093 SEAL,FUEL TANK CAP 92093-1030	$7.50
Available to order. Add to View Price
#92145 SPRING 92145-0474	$6.06
Available to order. Add to View Price
#92145A SPRING 92145-0475	$6.06
Available to order. Add to View Price
#92152 COLLAR 92152-0364	$10.90
Available to order. Add to View Price
#92152A COLLAR 92152-0365	$1.31
Available to order. Add to View Price
#92153 BOLT,SOCKET,5X16 92153-1244	$2.34
Available to order. Add to View Price
#92153A BOLT,FLANGED,5X12 92153-1421 Superseded by 92154-1856	$1.73
Available to order. Add to View Price
#92153B BOLT,SOCKET,5X16 92153-1616	$1.31
Available to order. Add to View Price
#92153C BOLT,FLANGED,6X20 92153-1694	$2.09
Available to order. Add to View Price
#92161 DAMPER 92161-0458	$8.77
Available to order. Add to View Price
#92171 CLAMP 92171-0573	$1.31
Available to order. Add to View Price
#92171 CLAMP 92171-0573	$1.31
Unavailable
#92171A CLAMP 92171-1708	$4.50
Available to order. Add to View Price
#130 BOLT-FLANGED,6X16 130BA0616	$1.17
Available to order. Add to View Price
#130A BOLT-FLANGED,6X25 130BA0625	$1.17
Available to order. Add to View Price
#130B BOLT-FLANGED,6X30 130BA0630	$1.42
Available to order. Add to View Price
#702 TUBE-RUBBER,7X10X800 702A07200 Superseded by 702A07800	$9.76
Available to order. Add to View Price
#92171B CLAMP 92171-1709	$4.57
Available to order. Add to View Price
#92192 TUBE 92192-0611	$16.12
Available to order. Add to View Price
#92192A TUBE,DRAIN 92192-0693	$19.32
Available to order. Add to View Price
#92200 WASHER,NYLONE,5.3X11.5X0.5 92200-0006	$1.81
Available to order. Add to View Price
#92200A WASHER,6.5X20X1.6 92200-0283	$1.36
Available to order. Add to View Price
