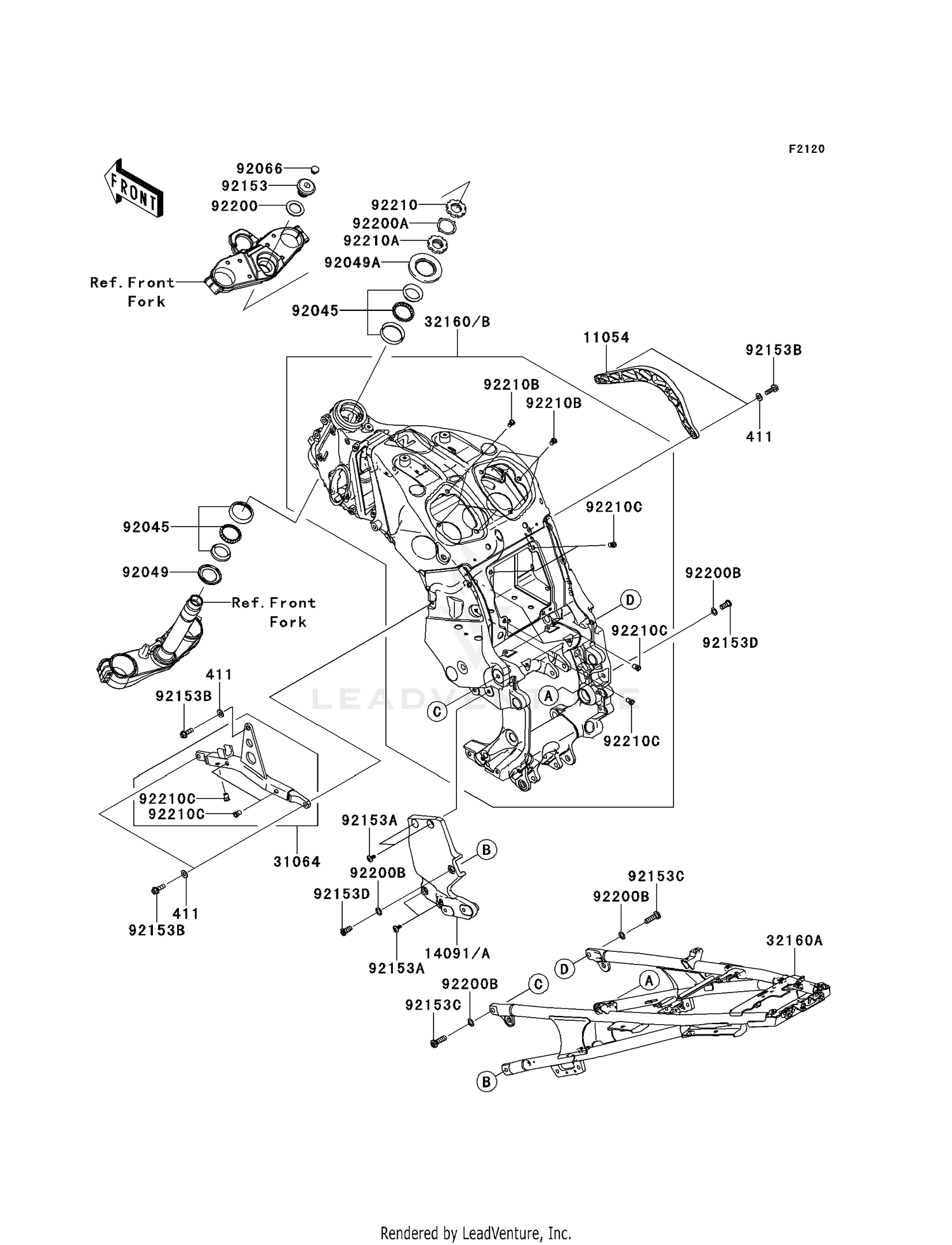

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#411
WASHER-PLAIN,8MM
411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#11054
BRACKET,SUB FRAME,RH
11054-1183
|
$130.35 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,FRONT FRAME SHAFT,BLACK
14091-1709-18R
Superseded by 14092-0089-18R
|
$189.33 | ||
|
Available to order. Add to View Price |
|||
|
#31064
PIPE-COMP,SUB FRAME,L
31064-0109
|
$184.34 | ||
|
Available to order. Add to View Price |
|||
|
#32160A
FRAME-COMP,RR,BLACK
32160-0294-18R
|
$1,061.10 | ||
|
Available to order. Add to View Price |
|||
|
#32160B
FRAME-COMP,FR,BLACK
32160-0314-18R
Superseded by 32160-0428-18R
|
$3,408.96 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,SF07A17PX1V1
92045-1384
|
$43.92 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,DS35X55X4
92049-0022
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MX043N3
92049-0091
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-0071
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,26MM
92153-0474
Superseded by 92154-3818
|
$27.65 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,8X20
92153-1621
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,FLANGED,8X25
92153-1768
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,SOCKET,10X35
92153-1904
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92153D
BOLT,SOCKET,10X22
92153-1905
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,27X42X2.3
92200-0081
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-0281
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,11X18X1
92200-0324
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,35MM
92210-0095
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,35MM
92210-0096
|
$19.12 | ||
|
Available to order. Add to View Price |
|||
|
#92210B
NUT,POP,6MM,L=16.5
92210-0324
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92210C
NUT,POP,6MM,L=15
92210-1397
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
