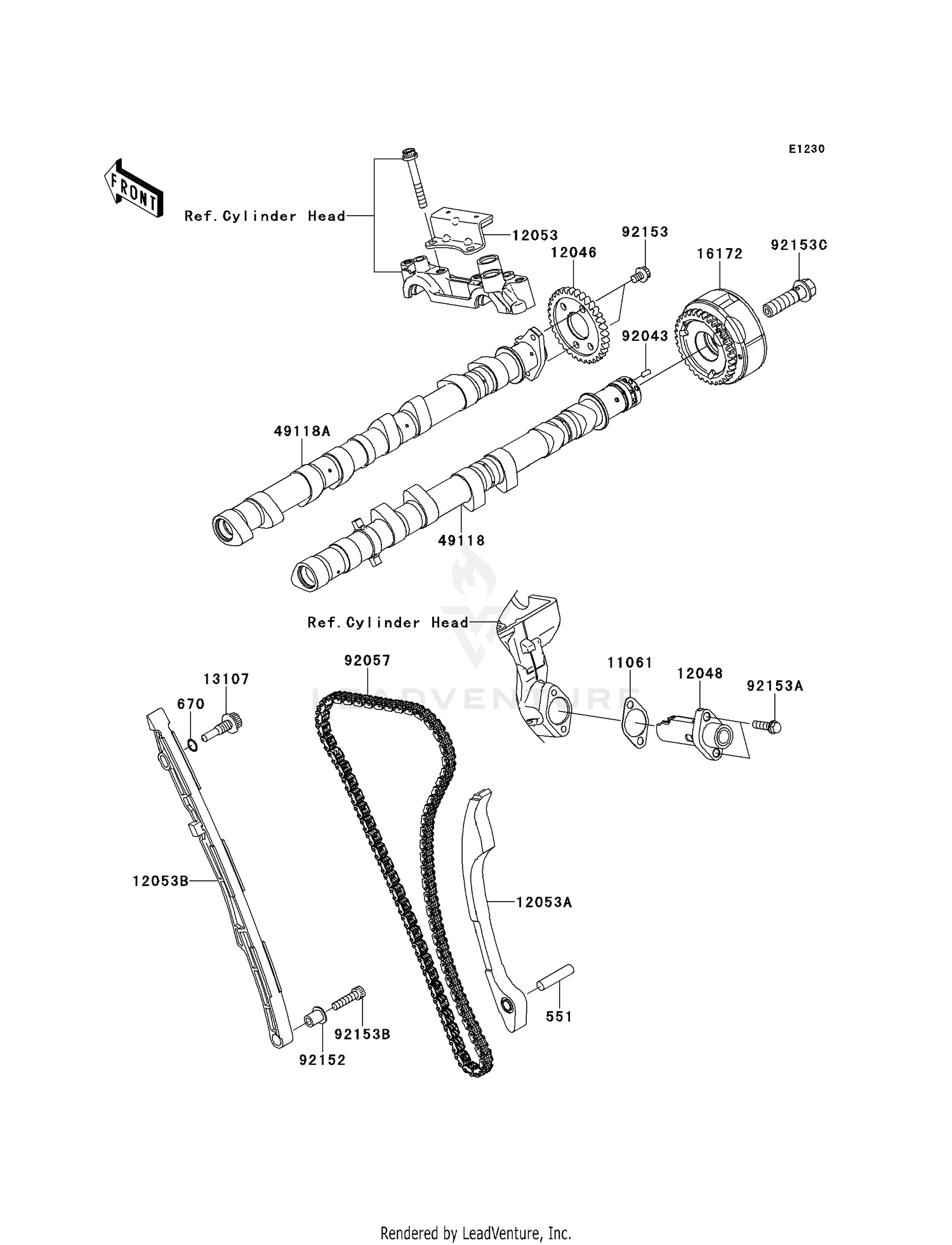

Camshaft(s)/tensioner Diagram

Item MSRP Qty
#551 PIN-DOWEL
551A0835
 $4.54
Available to order.
Add to View Price
#670 O RING,9MM
670D1509
 $4.54
Available to order.
Add to View Price
#11061 GASKET,TENSIONER
11061-0299
 $7.42
Available to order.
Add to View Price
#12046 SPROCKET,34T
12046-0057
 $87.27
Available to order.
Add to View Price
#12048 TENSIONER-ASSY,HYDRAULIC
12048-0047
 $129.21
Available to order.
Add to View Price
#12053 GUIDE-CHAIN,UPP
12053-0067
 $19.32
Available to order.
Add to View Price
#12053A GUIDE-CHAIN,RR
12053-0093
 $72.00
Available to order.
Add to View Price
#12053B GUIDE-CHAIN,FR
12053-0128
 $51.36
Available to order.
Add to View Price
#13107 SHAFT,CHAIN GUIDE
13107-0157
 $10.28
Available to order.
Add to View Price
#16172 ACTUATOR,VVT
16172-0011
 $484.22
Available to order.
Add to View Price
#49118 CAMSHAFT-COMP,INTAKE
49118-0092
 $731.96
Available to order.
Add to View Price
#49118A CAMSHAFT-COMP,EXHAUST
49118-0093
 $731.96
Available to order.
Add to View Price
#92043 PIN,3.665X7.8
92043-0119
 $2.09
Available to order.
Add to View Price
#92057 CHAIN,92RH2015-130M
92057-0109
Superseded by 92057-0649
 $108.84
Available to order.
Add to View Price
#92152 COLLAR
92152-0413
 $8.38
Available to order.
Add to View Price
#92153 BOLT,FLANGED,6X8
92153-0455
 $2.48
Available to order.
Add to View Price
#92153A BOLT,FLANGED-SMALL,6X22
92153-1560
 $2.09
Available to order.
Add to View Price
#92153B BOLT,SOCKET,6X25
92153-1561
 $2.37
Available to order.
Add to View Price
#92153C BOLT,FLANGED,11X40
92153-3733
 $24.56
Available to order.
Add to View Price
