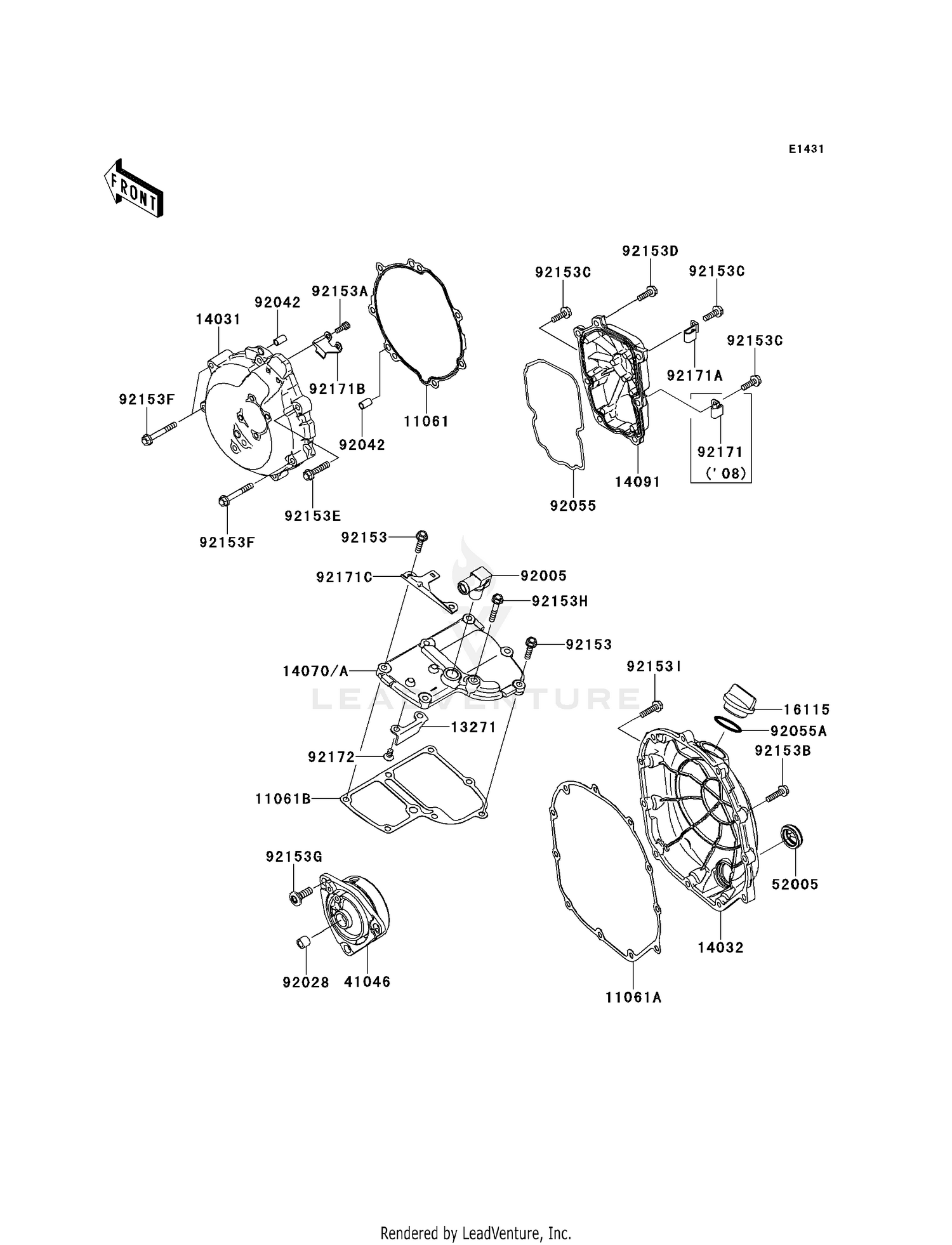

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET,GENERATOR COVER
11061-0197
|
$15.79 | ||
|
Available to order. Add to View Price |
|||
|
#11061A
GASKET,CLUTCH COVER
11061-0198
Superseded by 11061-0810
|
$21.38 | ||
|
Available to order. Add to View Price |
|||
|
#11061B
GASKET,BREATHER BODY
11061-0200
Superseded by 11061-0808
|
$8.77 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-0768
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-0083
|
$249.71 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-0110
Superseded by 14032-0570
|
$247.16 | ||
|
Available to order. Add to View Price |
|||
|
#14070A
BODY-BREATHER
14070-0004
|
$116.56 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,PULSER
14091-0896
|
$90.67 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-1009
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#41046
HOUSING-BEARING
41046-0020
|
$119.71 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE
52005-0024
|
$24.34 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-0044
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,8X12X10
92028-1750
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,PULSER COVER
92055-0086
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X25
92153-1071
Superseded by 92154-1847
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,5X14
92153-1286
Superseded by 92154-1841
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,FLANGED,6X25
92153-1569
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,FLANGED,6X20
92153-1572
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92153D
BOLT-FLANGED,6X20
92153-1573
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#92153E
BOLT,FLANGED,6X30
92153-1574
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153F
BOLT,FLANGED,6X45
92153-1575
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153G
BOLT,SOCKET,8X25
92153-1578
Superseded by 92154-1840
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#92153H
BOLT,FLANGED,6X35
92153-1579
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153I
BOLT,FLANGED,6X25
92153-1719
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-0761
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#92171B
CLAMP
92171-0768
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92171C
CLAMP
92171-0769
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW-CSK-CROS,6X12
92172-0263
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
