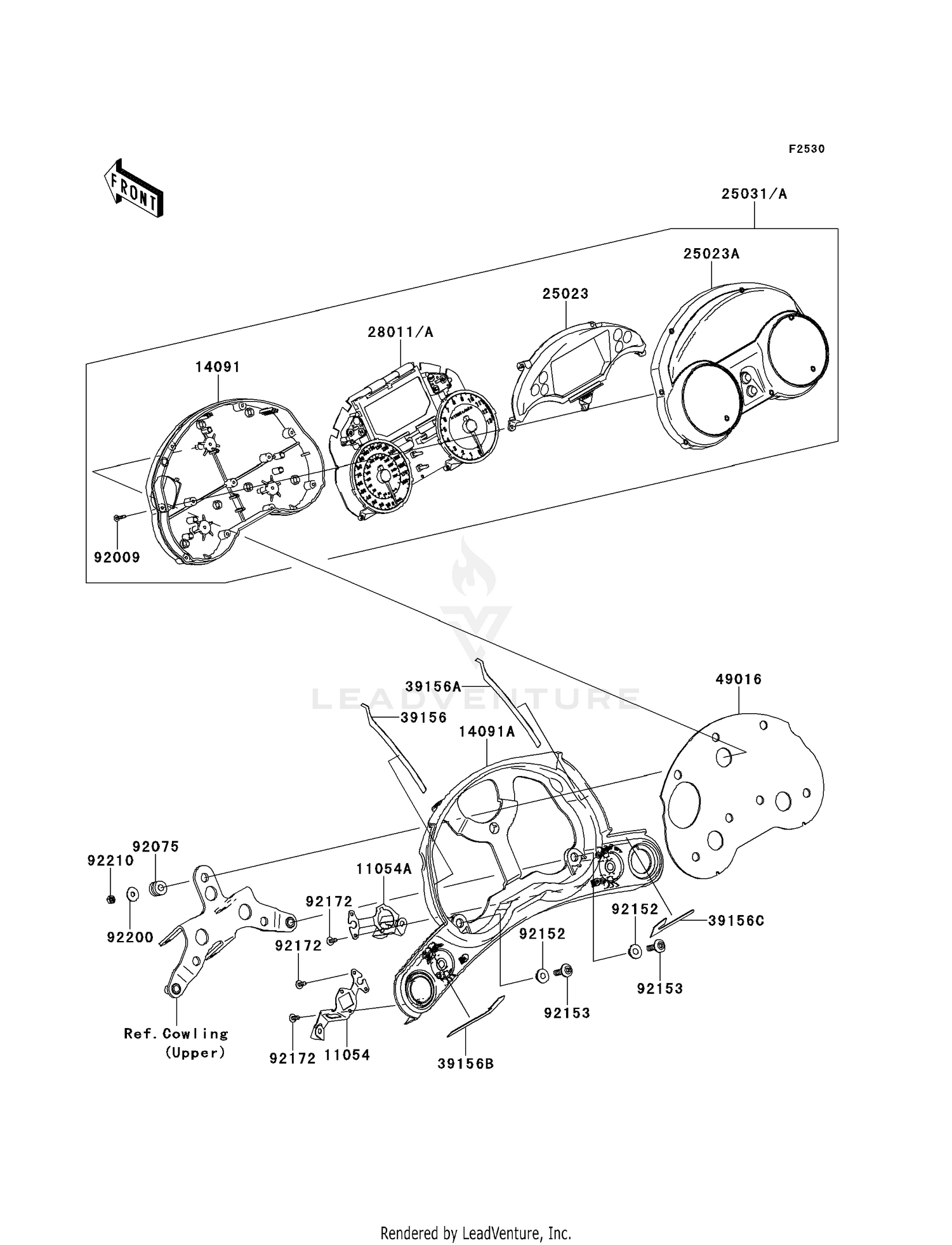

Meter(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11054
BRACKET,METER COVER,LH
11054-1786
|
$16.37 | ||
|
Available to order. Add to View Price |
|||
|
#11054A
BRACKET,METER COVER,RH
11054-1787
|
$16.37 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,METER,LWR
14091-0546
|
$127.75 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,METER
14091-0890
|
$78.45 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER-METER CASE,VISO
25023-0021
|
$121.08 | ||
|
Available to order. Add to View Price |
|||
|
#25023A
COVER-METER CASE,UPP
25023-0034
|
$133.84 | ||
|
Available to order. Add to View Price |
|||
|
#25031
METER-ASSY,SPEED&TACH
25031-0199
|
$1,356.49 | ||
|
Available to order. Add to View Price |
|||
|
#25031A
METER-ASSY,SPEED&TACHO&LCD
25031-0200
|
|||
|
Unavailable |
|||
|
#28011
METER,SPEED&TACHO&LCD
28011-0080
|
$1,007.67 | ||
|
Available to order. Add to View Price |
|||
|
#28011A
METER,SPEED&TACHO&LCD
28011-0081
|
|||
|
Unavailable |
|||
|
#39156
PAD,METER COVER,LH
39156-0374
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,METER COVER,RH
39156-0375
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,METER COVER,LH
39156-0376
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#39156C
PAD,METER COVER,RH
39156-0377
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,SPEEDOMETER
49016-0046
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,3X16
92009-1164
Superseded by 92009-1391
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1435
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.5X10X5.6
92152-0445
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X22
92153-0574
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING,4X10
92172-0172
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0288
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,5MM
92210-0290
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
