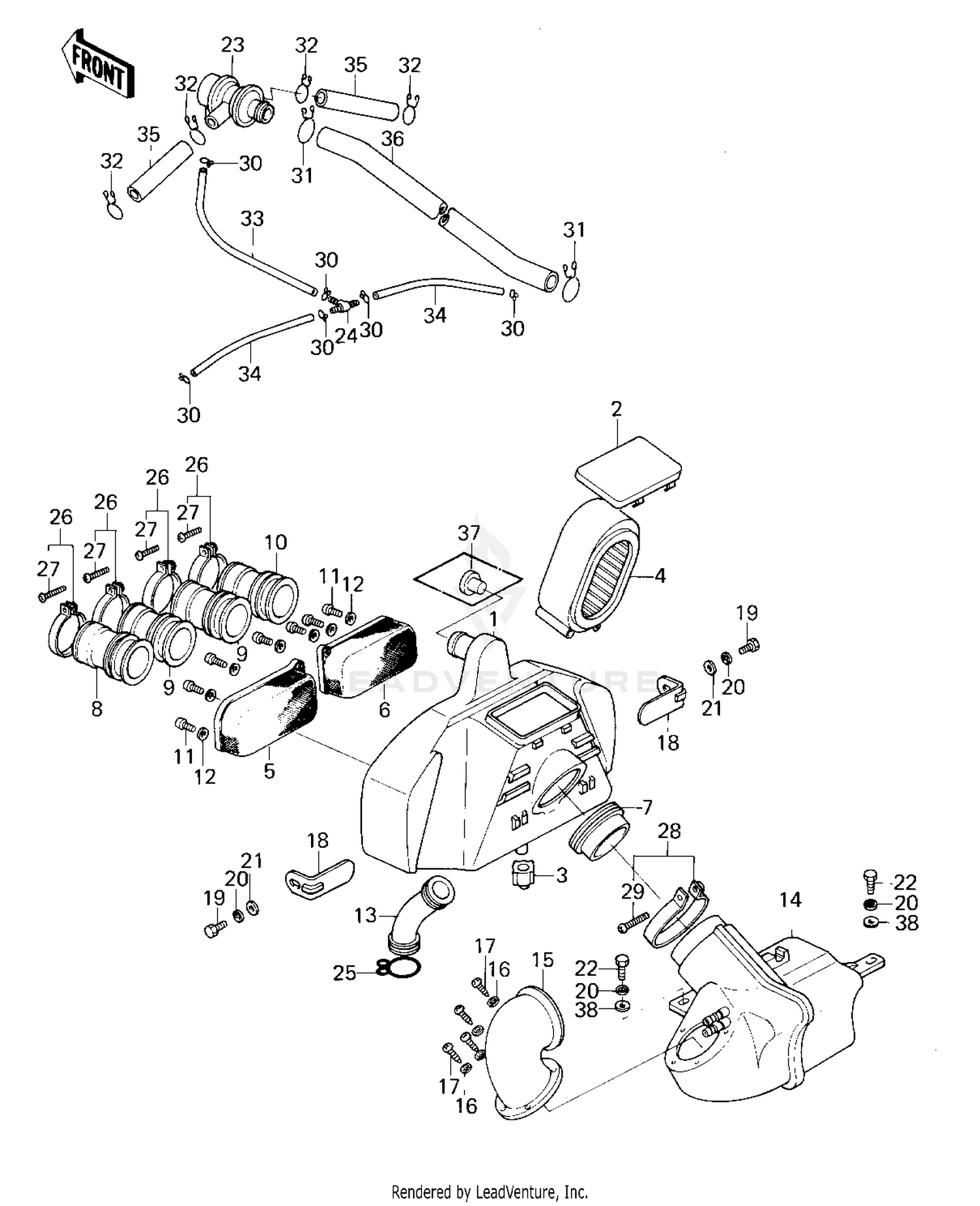

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY,AIR CLEANER
11011-1055
|
$121.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP,AIR CLEANER
11012-1066
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,DRAIN
11012-1083
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT,AIR CLNR
11013-1015
|
$52.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,CARBURETOR HOLD
11040-002
|
$152.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,CARBURETOR HOLD
11040-003
|
$28.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUCT,AIR CLEANER
14073-1018
|
$18.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUCT,AIR CLEANER,#1
14073-1022
|
$44.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUCT,AIR CLEANER,#2,3
14073-1023
|
$44.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUCT,AIR CLEANER,#4
14073-1024
|
$44.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-PAN-CROS,4X12
220C0412
Superseded by 220AB0412
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,PLAIN,4M/M
92022-1041
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE,BLOW-BY
92059-1060
|
$10.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
BODY,SILENCER
11011-1027
|
$63.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUCT,SILENCER
14073-1016
|
$29.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-PLAIN-SMALL
411B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW,5X12
92009-1051
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,AIR CLEANER
11034-1333
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#23
VALVE ASSY,AIR SWITCH
16126-1014
|
$191.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
FITTING,TUBE,T-TYPE
92005-1017
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP BREATHER PIPE
92037-028
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP-INLET PIPE
92037-061
|
$17.11 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW,PAN HEAD
92011-037
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP-AIR CLEANER
92037-068
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-PAN-CROS,6X35
220B0635
Superseded by 220AA0635
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP-PIPE
92037-072
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP,TUBE
92037-1076
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP,TUBE
92037-213
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#33
TUBE,4X9X935,WHITE
92059-1162
Superseded by 92059-1916
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#34
TUBE,4X9X935,WHITE
92059-1162
Superseded by 92059-1916
|
$18.41 | ||
|
Unavailable |
|||
|
#35
TUBE,14X20X90
92059-1061
|
$11.58 | ||
|
Available to order. Add to View Price |
|||
|
#36
TUBE,19X25X300
92059-1062
|
$17.97 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLUG
92066-1040
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER,6.5X16X2
92022-1565
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
