1980 Kawasaki KZ1000E SHAFT Carburetor Parts (canada) OEM Parts

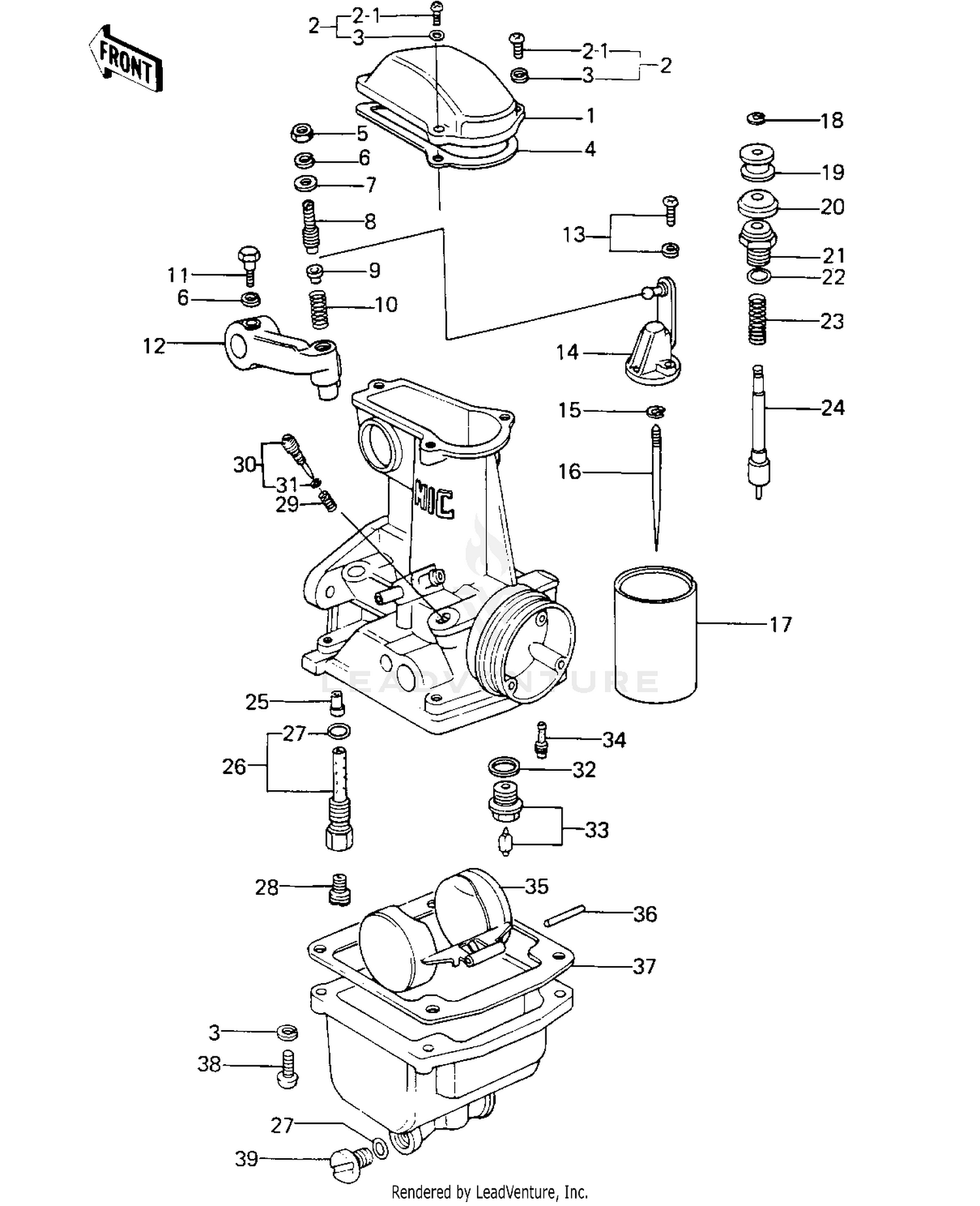

Carburetor Parts (canada) Diagram

Item	MSRP	Qty
#1 TOP,MIXING CHAMBER 16005-027	$23.45
Available to order. Add to View Price
#2 SCREW-PAN-WS-CROS,4X14 223B0414 Superseded by 223AA0414	$1.48
Available to order. Add to View Price
#2-1 SCREW-PAN-CROS 220B0414 Superseded by 220AA0414	$4.45
Available to order. Add to View Price
#3 WASHER SPRING 4MM 461F0400	$0.46
Available to order. Add to View Price
#4 GASKET,CHAMBER TOP 16019-031	$41.85
Available to order. Add to View Price
#5 NUT,5MM 16003-013	$9.07
Available to order. Add to View Price
#5 NUT-HEX,5MM 312B0500 Superseded by 312AA0500	$0.46
Available to order. Add to View Price
#6 WASHER-SPRING,5MM 461F0500 Superseded by 461DA0500	$0.69
Available to order. Add to View Price
#7 WASHER,PLAIN 16039-016	$7.75
Available to order. Add to View Price
#8 SCREW,SLOTTED 16046-012	$25.61
Available to order. Add to View Price
#9 SEAT,SPRING 16057-002	$10.16
Available to order. Add to View Price
#10 SPRING 16040-026	$6.41
Available to order. Add to View Price
#11 BOLT,HEX HEAD,5X14 16067-006	$17.61
Available to order. Add to View Price
#12 LEVER,THROTTLE 39075-1001	$32.32
Available to order. Add to View Price
#13 SCREW,PAN HEAD,3X14 16033-031	$8.09
Available to order. Add to View Price
#14 BRACKET,THROTTLE VALV 16007-028	$57.80
Available to order. Add to View Price
#15 CIRCLIP 16008-010	$8.89
Available to order. Add to View Price
#16 JET NEEDLE,5CN15 16009-1013	$49.25
Available to order. Add to View Price
#17 VALVE,THROTTLE,CA1.75 (Canada) 16025-1033
Unavailable
#18 CIRCLIP 16076-003	$8.61
Available to order. Add to View Price
#19 COLLAR 16073-014	$10.10
Available to order. Add to View Price
#20 CAP,RUBBER,STARTER PLUNGE 16039-015	$6.66
Available to order. Add to View Price
#21 CAP,STARTER PLUNGER 16012-015	$16.64
Available to order. Add to View Price
#22 O RING,9MM 670B1509	$3.57
Available to order. Add to View Price
#23 SPRING,STARTER PLUNGER 16013-008	$6.25
Available to order. Add to View Price
#24 PLUNGER,STARTER 16016-021	$41.24
Available to order. Add to View Price
#25 NEEDLE JET,O-1 16017-1011	$27.98
Available to order. Add to View Price
#26 * N.L.A.* (Canada) 49122-1008
Unavailable
#27 0 RING,MAIN JET COV 16038-016	$2.93
Available to order. Add to View Price
#28 MAIN JET,#110R 92063-1038	$15.91
Available to order. Add to View Price
#28 JET-MAIN NO 107.5R 92063-073	$15.18
Available to order. Add to View Price
#28 MAIN JET,#A105R 92063-1042	$15.18
Available to order. Add to View Price
#28 JET-MAIN,#A112.5 92063-075 Superseded by 92063-1110	$14.87
Available to order. Add to View Price
#28 MAIN JET,A115 92063-076 Superseded by 92063-1109	$14.87
Available to order. Add to View Price
#29 SPRING,PILOT AIR SCREW 16022-007	$7.85
Available to order. Add to View Price
#30 SCREW,PILOT ADJUSTING 16014-1004	$36.97
Available to order. Add to View Price
#31 O RING 16038-022	$6.67
Available to order. Add to View Price
#32 GASKET,FLOAT VALVE SEAT 16029-004	$3.77
Available to order. Add to View Price
#33 FLOAT VALVE ASSY 16030-027	$124.08
Available to order. Add to View Price
#34 PILOT JET,#A15 92064-1003 Superseded by 92064-1017	$28.52
Available to order. Add to View Price
#35 FLOAT 16031-031	$165.44
Available to order. Add to View Price
#36 PIN,FLOAT 16032-003 Superseded by 16032-008	$6.36
Available to order. Add to View Price
#37 GASKET,FLOAT CHAMBER 11009-1563	$23.77
Available to order. Add to View Price
#38 SCREW-PAN-CROS 220B0416 Superseded by 220AA0416	$1.73
Available to order. Add to View Price
#39 SCREW,GUIDE 16049-007	$17.75
Available to order. Add to View Price
