1980 Kawasaki KZ1000E SHAFT Final Gears OEM Parts

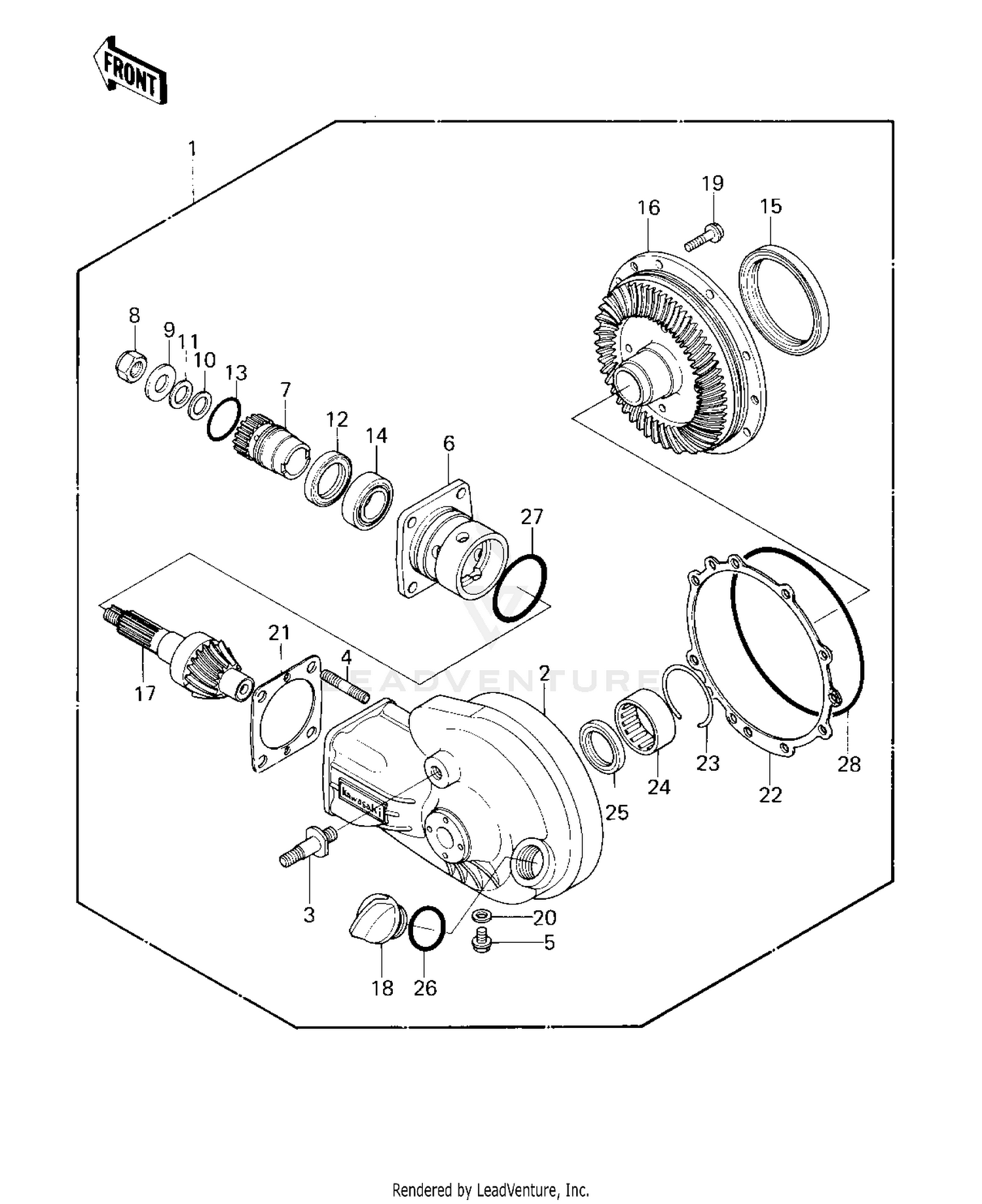

Final Gears Diagram

Item	MSRP	Qty
#1 GEAR ASSY,FINAL 13101-1005	$1,281.53
Available to order. Add to View Price
#2-4 CASE ASSY,FINAL GEAR 11021-1008	$715.87
Available to order. Add to View Price
#3 STUD 92004-1020	$28.79
Available to order. Add to View Price
#4 STUD,10X30 92004-1024	$5.07
Available to order. Add to View Price
#5 BOLT-FLANGED,8X12 130B0812 Superseded by 130AA0812	$0.77
Available to order. Add to View Price
#6 HOUSING.BEARING 41046-1009	$148.85
Available to order. Add to View Price
#7 COUPLING,PINION GEAR 42034-1013	$83.62
Available to order. Add to View Price
#8 NUT,16MM 92015-1059	$11.08
Available to order. Add to View Price
#9 WASHER,16X32X3.2 92022-1105	$11.08
Available to order. Add to View Price
#10 SHIM 92025-1027	$5.65
Available to order. Add to View Price
#10 SHIM 92025-1028	$8.75
Available to order. Add to View Price
#10 SHIM 92025-1029	$8.75
Available to order. Add to View Price
#10 SHIM 92025-1030	$8.75
Available to order. Add to View Price
#10 SHIM 92025-1031	$8.75
Available to order. Add to View Price
#11 SHIM 92025-1032	$5.53
Available to order. Add to View Price
#11 SHIM 92025-1033	$3.96
Available to order. Add to View Price
#11 SHIM 92025-1034	$3.96
Available to order. Add to View Price
#11 SHIM 92025-1035	$5.41
Available to order. Add to View Price
#11 SHIM 92025-1036	$5.12
Available to order. Add to View Price
#11 SHIM,0.10T 92025-1065	$21.55
Available to order. Add to View Price
#11 SHIM,0.70T 92025-1069	$3.52
Available to order. Add to View Price
#11 SHIM,0.80T 92025-1070	$3.05
Available to order. Add to View Price
#11 SHIM,1.00T 92025-1071	$3.70
Available to order. Add to View Price
#12 SEAL-OIL,SC32487 92049-1033	$18.16
Available to order. Add to View Price
#13 RING-O,ID=32.7 92055-1037	$4.18
Available to order. Add to View Price
#14 BRG,ROLLER,4T-32005 92116-1004	$46.13
Available to order. Add to View Price
#15 OIL SEAL,S-831009HS 92049-1034	$36.32
Available to order. Add to View Price
#15-17 GEAR SET,FINAL BEVEL 13101-5028	$721.04
Available to order. Add to View Price
#18 CAP 16115-1003	$11.23
Available to order. Add to View Price
#19 BOLT,FLANGED,8X28 92001-1095	$6.36
Available to order. Add to View Price
#20 WASHER,8.2X16X1 92022-1086	$3.80
Available to order. Add to View Price
#21 SHIM,0.15T 92025-1052	$11.91
Available to order. Add to View Price
#21 SHIM,0.50T 92025-1053	$10.03
Available to order. Add to View Price
#21 SHIM,0.60T 92025-1054	$9.76
Available to order. Add to View Price
#21 SHIM,0.70T 92025-1055	$10.03
Available to order. Add to View Price
#21 SHIM,0.80T 92025-1056	$9.76
Available to order. Add to View Price
#21 SHIM,0.90T 92025-1057	$10.03
Available to order. Add to View Price
#21 SHIM,1.00T 92025-1058	$10.03
Available to order. Add to View Price
#21 SHIM,1.20T 92025-1059	$9.76
Available to order. Add to View Price
#22 SHIM,0.15T 92025-1060	$15.41
Available to order. Add to View Price
#22 SHIM,0.50T 92025-1061	$15.41
Available to order. Add to View Price
#22 SHIM,0.60T 92025-1062	$21.55
Available to order. Add to View Price
#22 SHIM,0.70T 92025-1063	$21.55
Available to order. Add to View Price
#22 SHIM,0.80T 92025-1064	$28.13
Available to order. Add to View Price
#22 SHIM,0.10T 92025-1065	$21.55
Unavailable
#22 SHIM,1.00T 92025-1066	$21.55
Available to order. Add to View Price
#22 SHIM,1.20T 92025-1067	$21.55
Available to order. Add to View Price
#23 RING,SNAP 92033-1020	$4.56
Available to order. Add to View Price
#24 BEARING 92046-1020	$83.40
Available to order. Add to View Price
#25 SEAL-OIL,S-35477HS 92049-1025	$14.37
Available to order. Add to View Price
#26 RING-O,31.5X2.6 92055-049	$4.17
Available to order. Add to View Price
#27 0 RING,I.D=57.6MM 92055-1038	$7.36
Available to order. Add to View Price
#28 0 RING,I.D=150.4MM 92055-1039	$15.09
Available to order. Add to View Price
