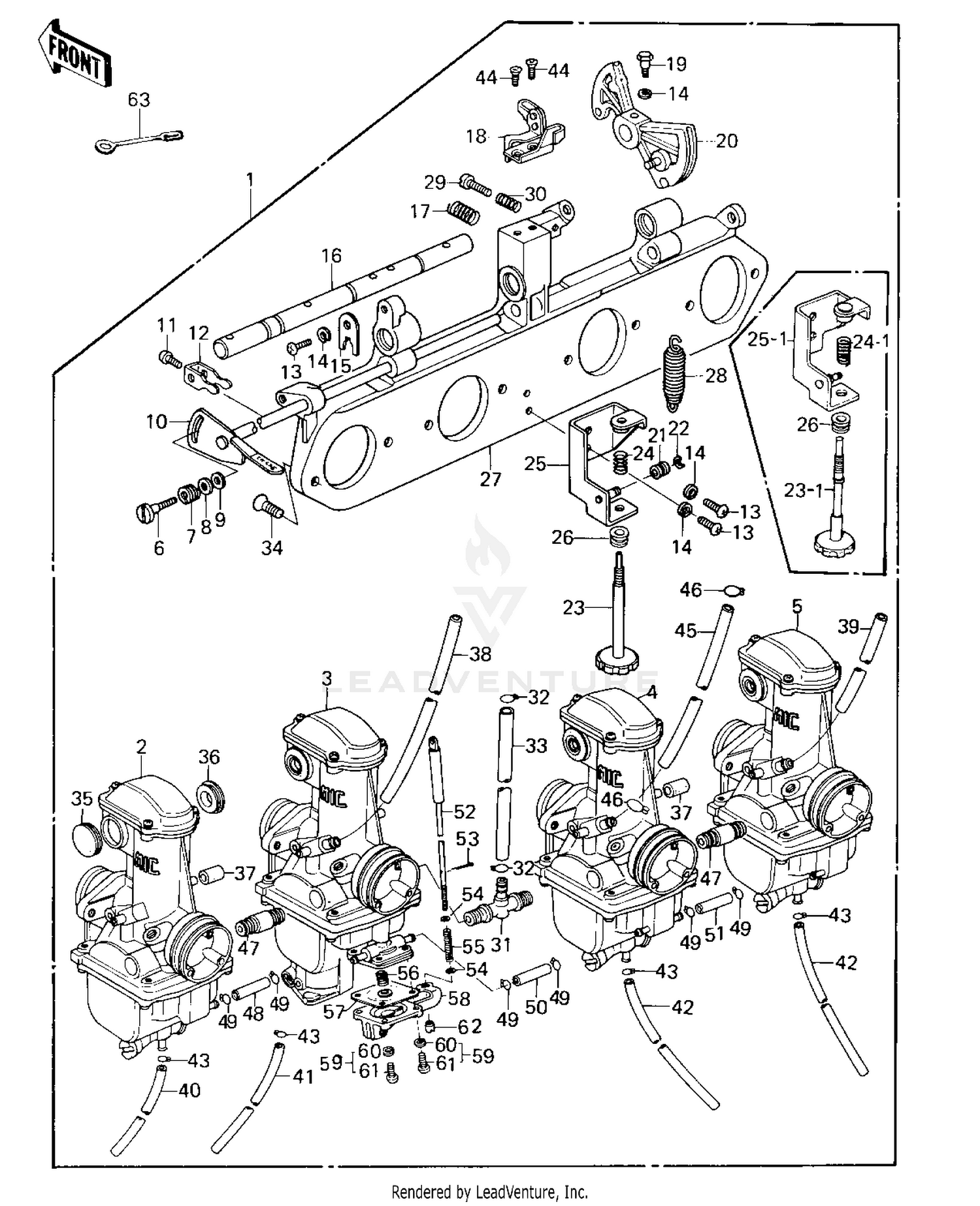

Carburetor Assy (usa) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
16001-1098
|
$1,214.32 | ||
|
Available to order. Add to View Price |
|||
|
#1
CARBURETOR ASSY
16001-1205
|
$1,100.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
CARBURETOR,L.H OUT
16001-1144
|
$484.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
CARBURETOR,LH,OUTSIDE
16001-1234
|
$337.31 | ||
|
Available to order. Add to View Price |
|||
|
#3 & 56
CARBURETOR,L.H INSIDE
16001-1145
|
$476.57 | ||
|
Available to order. Add to View Price |
|||
|
#3 & 56
CARBURETOR,LH,INSIDE
16001-1235
|
$337.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR,R.H INSIDE
16001-1146
|
$476.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR,R.H,INSIDE
16001-1236
|
$337.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
CARBURETOR,R.H OUT
16001-1147
|
$476.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
CARBURETOR,RH,OUTSIDE
16001-1237
|
$337.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
16046-005
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING,F
16040-009
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,PLAIN
16039-020
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-PLAIN-SMALL
410B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,PLAIN
16039-019
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT,STARTER PLUNGER
16041-1005
|
$49.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,PAN HEAD,5X7
16046-007
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER,STARTER PLUNGER
13168-1026
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-PAN-CROS,5X14
220B0514
Superseded by 220AA0514
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE,SHAFT STOPPER
16055-012
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT,CARB CONNECTION
16041-017
|
$66.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING,CABLE PULLY
16040-022
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,THROTTLE CABL
16077-017
|
$57.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT,HEX HEAD,5X14
16067-006
|
$17.61 | ||
|
Available to order. Add to View Price |
|||
|
#20
PULLY,THROTTLE CABLE
13236-1015
|
$46.61 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING
16073-016
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP 3MM
482K3000
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,THROTTLE STOP
16021-1006
|
$27.73 | ||
|
Available to order. Add to View Price |
|||
|
#23-1
SCREW,THROTTLE STOP
16021-1020
|
$26.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING,THROTTLE STOP
16022-017
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#24-1
SPRING,THRTL STP SCRW
92081-1200
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET,THROTTLE CABL
11034-1185
|
$44.92 | ||
|
Available to order. Add to View Price |
|||
|
#25-1
BRACKET THRTL CBL PLY
11034-1667
|
$30.54 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSHING
92028-1071
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER,CARB MOUNTING
16065-1009
|
$127.57 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING,THROTTLE PULLY
92081-1028
|
$73.66 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW,ADJUSTER
16021-1011
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING,THROTTLE ADJST
16022-010
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
FITTING
92005-1010
|
$28.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP,HOSE
92037-1184
Superseded by 92037-1104
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE,FUEL,7.5X12.5X
92059-1082
|
$24.80 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW,6X14
16033-029
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW-CSK-CROS,6X14
221B0614
Superseded by 221AA0614
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP,RUBBER
16039-042
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#36
GROMMET,CARBURETOR
92071-104
|
$31.75 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE,6X11.5X16
92059-141
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOSE,AIR VENT,5X8X550
92059-1028
|
$24.61 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE,AIR VENT,5X8X550
92059-1028
|
$24.61 | ||
|
Unavailable |
|||
|
#40
HOSE,FUEL OVERFLOW
92059-147
|
$34.79 | ||
|
Unavailable |
|||
|
#41
HOSE,FUEL OVERFLOW
92059-134
Superseded by 92059-147
|
$34.79 | ||
|
Unavailable |
|||
|
#42
HOSE,FUEL OVERFLOW
92059-134
Superseded by 92059-147
|
$34.79 | ||
|
Unavailable |
|||
|
#43
CLAMP,CARBURETOR HLDR
92037-178
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW-CSK-CROS,5X10
221B0510A
Superseded by 221AA0510
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOSE,FUEL TAP DIAPHRA
92059-1023
|
$16.13 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP-PIPE
92037-072
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#47
FITTING
92005-1009
|
$63.16 | ||
|
Available to order. Add to View Price |
|||
|
#48
TUBE,3.5X7.5X47.5
92059-1072
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP,TUBE
92037-1124
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#50
TUBE,3.5X7.5X64.5
92059-1071
|
$32.36 | ||
|
Available to order. Add to View Price |
|||
|
#51
TUBE,3.5X7.5X47.5
92059-1072
|
$13.50 | ||
|
Unavailable |
|||
|
#52 & 5
ROD ASSY,PUMP
46102-1007
|
$30.34 | ||
|
Available to order. Add to View Price |
|||
|
#52 & 5
ROD ASSY,PUMP
46102-1013
|
$29.35 | ||
|
Available to order. Add to View Price |
|||
|
#53
COTTER PIN,1.0X6
550D1006
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#54
WASHER,PUMP ROD
92022-1138
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#55
SPRING,PUMP ROD
92081-1138
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#56
SPRING,PUMP DIAPHRAGM
92081-1139
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#57
DIAPHRAGM,PUMP
43028-1012
|
$106.27 | ||
|
Available to order. Add to View Price |
|||
|
#58
COVER ASSY,PUMP
14025-1139
|
$73.78 | ||
|
Available to order. Add to View Price |
|||
|
#59
SCREW-PAN-WS-CROS,4X14
16033-013
Superseded by 223AA0414
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#60
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW-PAN-CROS
220B0414
Superseded by 220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#62
NUT,PUMP ROD
92015-1075
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#63
CLAMP,OVER FLOW PIPE
92037-134
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
