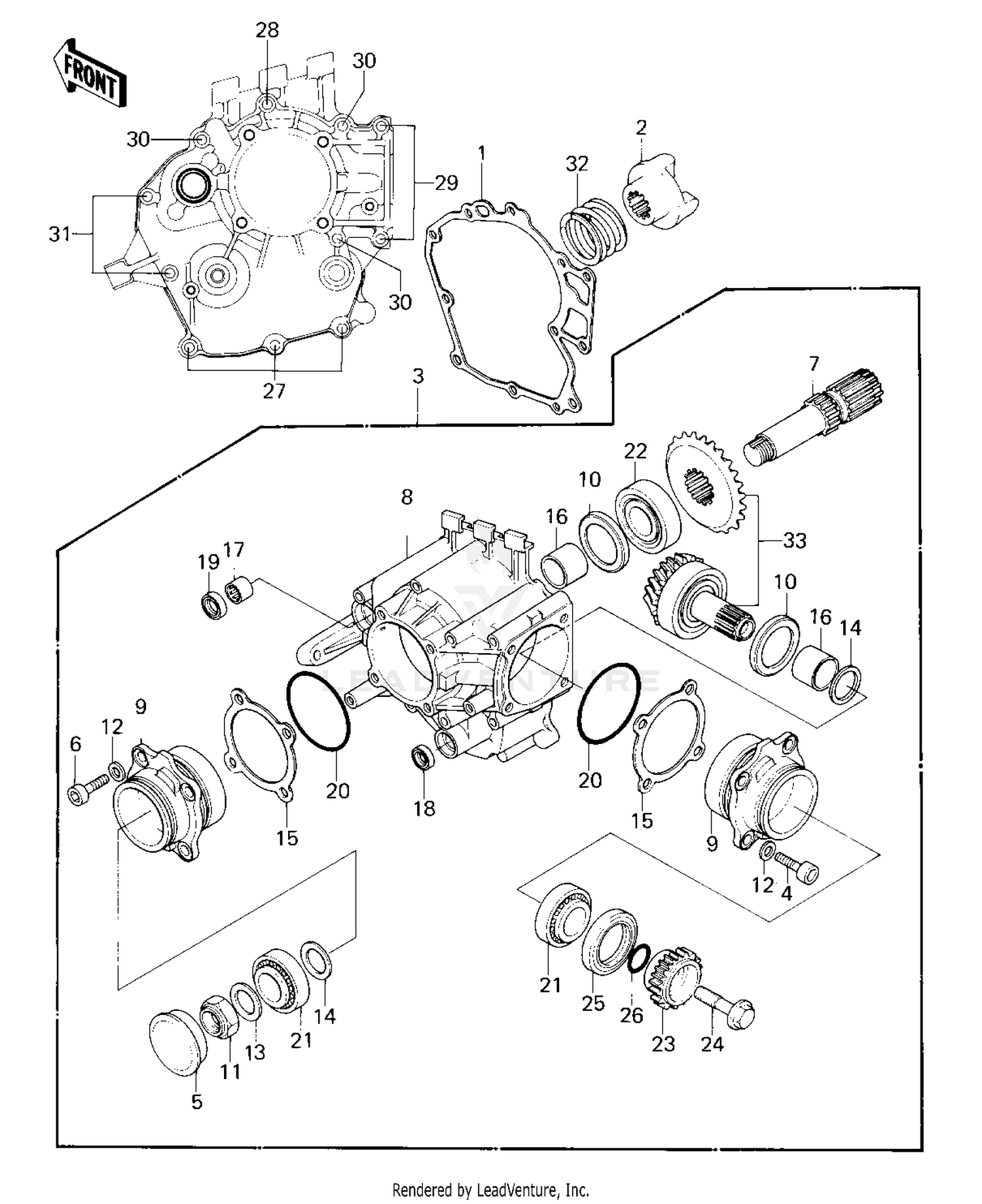

Front Bevel Gears Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET,BEVEL GEAR,FR
11009-1112
Superseded by 11060-1534
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAM,DAMPER
13048-1005
|
$73.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR ASSY,FRONT BEVEL
13101-1010
|
$1,205.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT-SOCKET,8X25
120P0825
Superseded by 120CA0825
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
11012-1071
|
$32.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT-SOCKET,8X25
120P0825
Superseded by 120CA0825
|
$2.00 | ||
|
Unavailable |
|||
|
#7
SHAFT,FRONT BEVEL GER
13107-1014
|
$178.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE,FRONT BEVEL GEAR
14055-1003
|
$525.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOUSING,BEARING
41046-1010
|
$144.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUP
51036-1002
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT,20M/M
92015-1065
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,8.5X13X1
92022-1028
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER,20.3X36X2.3
92022-1116
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM,25.2X29.8X1.70
92025-1072
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM,25.2X29.8X1.72
92025-1073
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM,25.2X29.8X1.74
92025-1074
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM,25.2X29.8X1.76
92025-1075
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM,25.2X29.8X1.78
92025-1076
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM,25.2X29.8X1.80
92025-1077
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM,0.15T
92025-1078
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM,0.50T
92025-1079
|
$9.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM,0.60T
92025-1080
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM,0.70T
92025-1081
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM,0.80T
92025-1082
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM,0.90T
92025-1083
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM,1.00T
92025-1084
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM,1.20T
92025-1085
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X22.8
92027-1152
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X22.9
92027-1153
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23
92027-1154
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23.1
92027-1155
|
$19.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23.2
92027-1156
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23.3
92027-1157
|
$17.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23.4
92027-1158
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23.5
92027-1159
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23.6
92027-1160
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23.7
92027-1161
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23.8
92027-1162
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X23.9
92027-1163
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X24
92027-1164
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,25.2X29.8X24.1
92027-1165
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRG,N,7E-HK1412
92046-037
|
$20.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL SB12205
92049-004
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL,TC14244.8
92049-1037
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING,65MM
671B2565
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING-ROLLER,4T30205
92116-1003
|
$34.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRG,ROLLER,4T-30305
92116-1006
|
$42.01 | ||
|
Available to order. Add to View Price |
|||
|
#23
COUPLING,FR DRIVEN
42034-1091
|
$122.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,FLANGED,12X42
92001-1169
|
$21.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL-OIL,TC35527
92049-1038
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#26
RING-O,ID=18.64
92055-1044
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,FLANGED,6X55
92003-110
Superseded by 130BA0655
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT,HEX HEAD,6X99
92003-111
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT-FLANGED
130G0695
Superseded by 130BD0695
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT,HEX HEAD,6X116
92003-113
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT-FLANGED,6X70
130G0670
Superseded by 130BA0670
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING,CAM DAMPER
92081-1117
|
$65.48 | ||
|
Available to order. Add to View Price |
|||
|
#33
GEAR SET,FRONT BEVEL
13101-5027
|
$1,093.73 | ||
|
Available to order. Add to View Price |
|||
