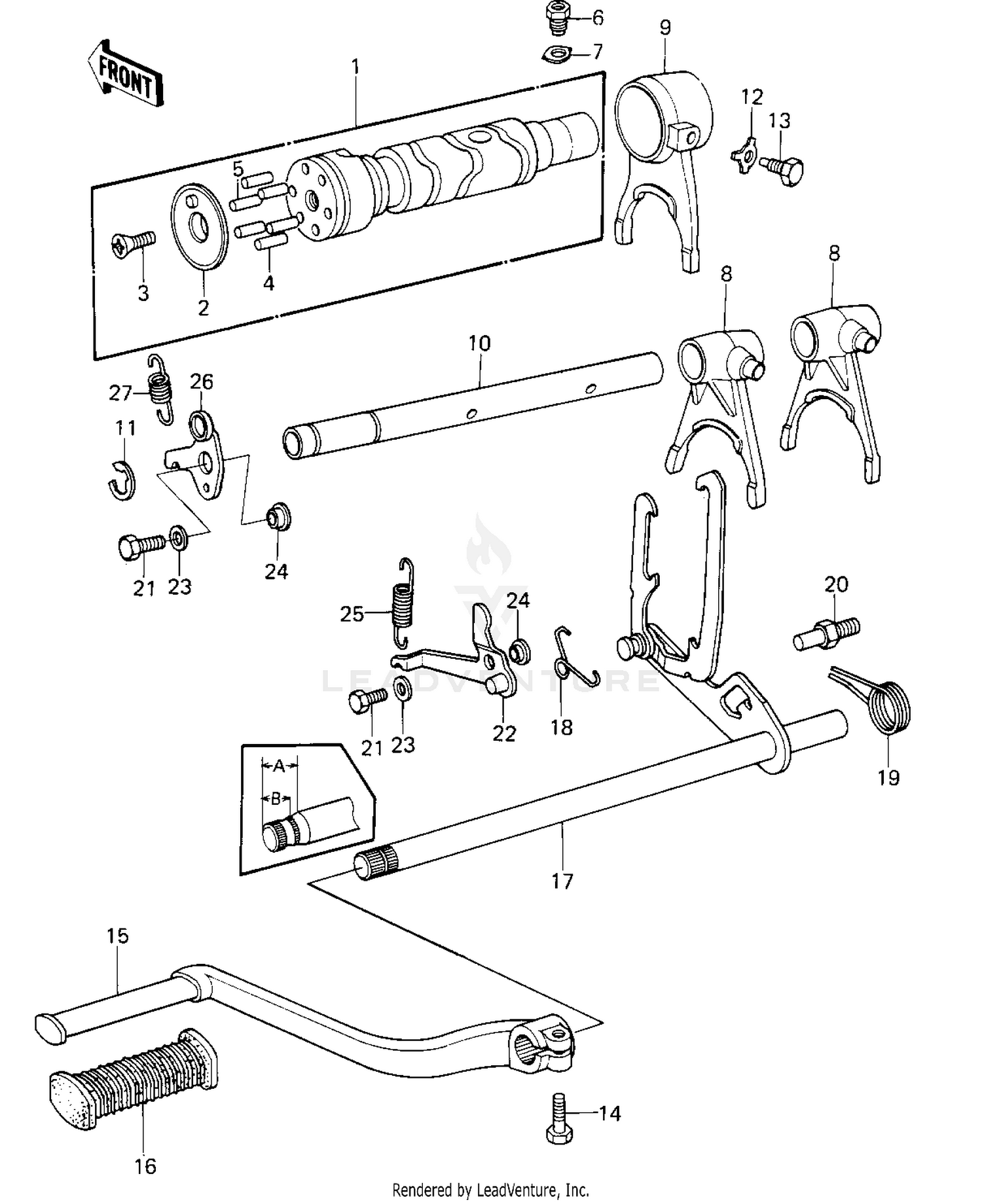

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DRUM ASSY,GEAR CHANGE
13239-1022
|
$157.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER,CHANGE DRUM
13091-1088
|
$26.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-CNTSNK HD,6X20
221B0620
Superseded by 221AA0620
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN,DOWEL,4X15.8
92042-014
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN,DOWEL,4X17.8
92042-020
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,CHG DRUM POSITN
92001-1052
|
$16.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,LOCK
92024-047
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
FORK,SELECTOR,4TH&TOP
13140-045
|
$244.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
FORK,SELECTOR,3RD
13140-046
|
$200.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD,SHIFT
13209-011
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP-TYPE-C,12MM
480J1200
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER LOCK 10MM
92031-001
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN SELECT FORK GUIDE
92043-016
|
$25.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
PEDAL ASSY,GEAR CHNG
13156-1023
|
$67.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
PEDAL,CHANGE
13156-1038
|
$85.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER RUBR GEAR CHNG
92075-1175
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#17-19
LEVER ASSY,GEAR CHANG
13161-1019
|
$69.03 | ||
|
Available to order. Add to View Price |
|||
|
#17-19
LEVER ASSY,GEAR CHANG
13161-1019
|
$69.03 | ||
|
Unavailable |
|||
|
#18
SPRING,KICK PAWL
92083-018
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING,CHG PEDL RTRN
92083-028
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT,RETURN SPRING
92001-1401
Superseded by 92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER,GEAR POSITIOING
13168-1039
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,6.5X16X2
92022-1565
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSHING,GEAR POSITION
92028-1058
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING,GEAR POSITION
92081-1148
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#26
LEVER,NEUTRAL POSITON
13236-1011
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING RATCHET PA
92081-003
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
