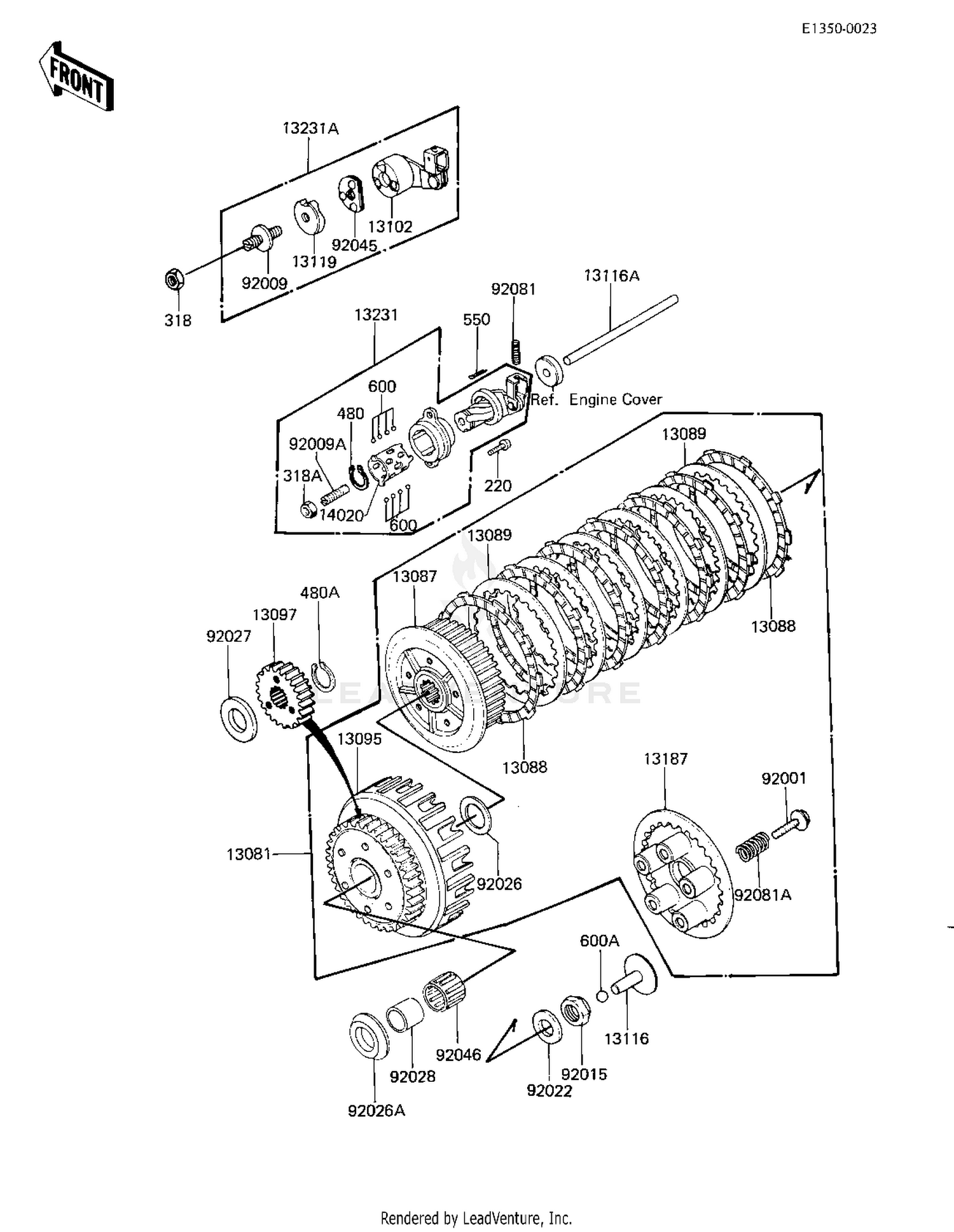

Clutch ('81 -'82 Kz750-e2/e3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13081
CLUTCH-ASSY
13081-1034
|
$436.80 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB,CLUTCH
13087-043
|
$148.42 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE,CLUTCH FRICTION
13088-030
|
$25.24 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE,CLUTCH STEEL
13089-022
|
$18.43 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1033
Superseded by 13095-1389
|
$548.37 | ||
|
Available to order. Add to View Price |
|||
|
#13097
GEAR,SECONDARY SHAFT,
13121-037
Superseded by 13097-1345
|
$123.43 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE,CLUTCH
13102-1008
|
$56.58 | ||
|
Available to order. Add to View Price |
|||
|
#13116
PUSHER,CLUTCH SPRG PL
13116-022
|
$25.46 | ||
|
Available to order. Add to View Price |
|||
|
#13116A
ROD,CLUTCH PUSH
13116-1007
|
$35.89 | ||
|
Available to order. Add to View Price |
|||
|
#13119
CAM,RELEASE,CLUTCH
13119-1003
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE,CLUTCH SPRING
13187-006
|
$67.62 | ||
|
Available to order. Add to View Price |
|||
|
#13231
RELEASE ASSY,CLUTCH
13231-020
|
$81.96 | ||
|
Available to order. Add to View Price |
|||
|
#14020
RETAINER
13197-004
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,SLOTTED,8M/M
92009-1009
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,SLOTTED,8X25
92014-014
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1555
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,20.3X36X2.3
92022-1116
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,25.5X47X2.5
92026-022
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,THRUST,T=5.5
92026-116
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,T=5MM
92027-263
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,25X32X23.6
92028-178
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#92045
RETAINER,CLUTCH RELEA
92045-1001
Superseded by 14020-1091
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,KTV323723
92046-028
|
$20.48 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING-CLUTCH RELEASE
92081-069
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,CLUTCH
92081-1176
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#318
NUT-HEX-SMALL,8MM
318B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#318A
NUT-HEX-SMALL,8MM
318B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Unavailable |
|||
|
#480
CIRCLIP-TYPE-C,15MM
480J1500
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP-TYPE-C,22MM
480J2200
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,1.6X15
550D1615
Superseded by 550AA1615
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL,STEEL,1/8"
600A0400
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#600A
"BALL-STEEL,3/8",,2017-03-16 13:30:
600A1200
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
