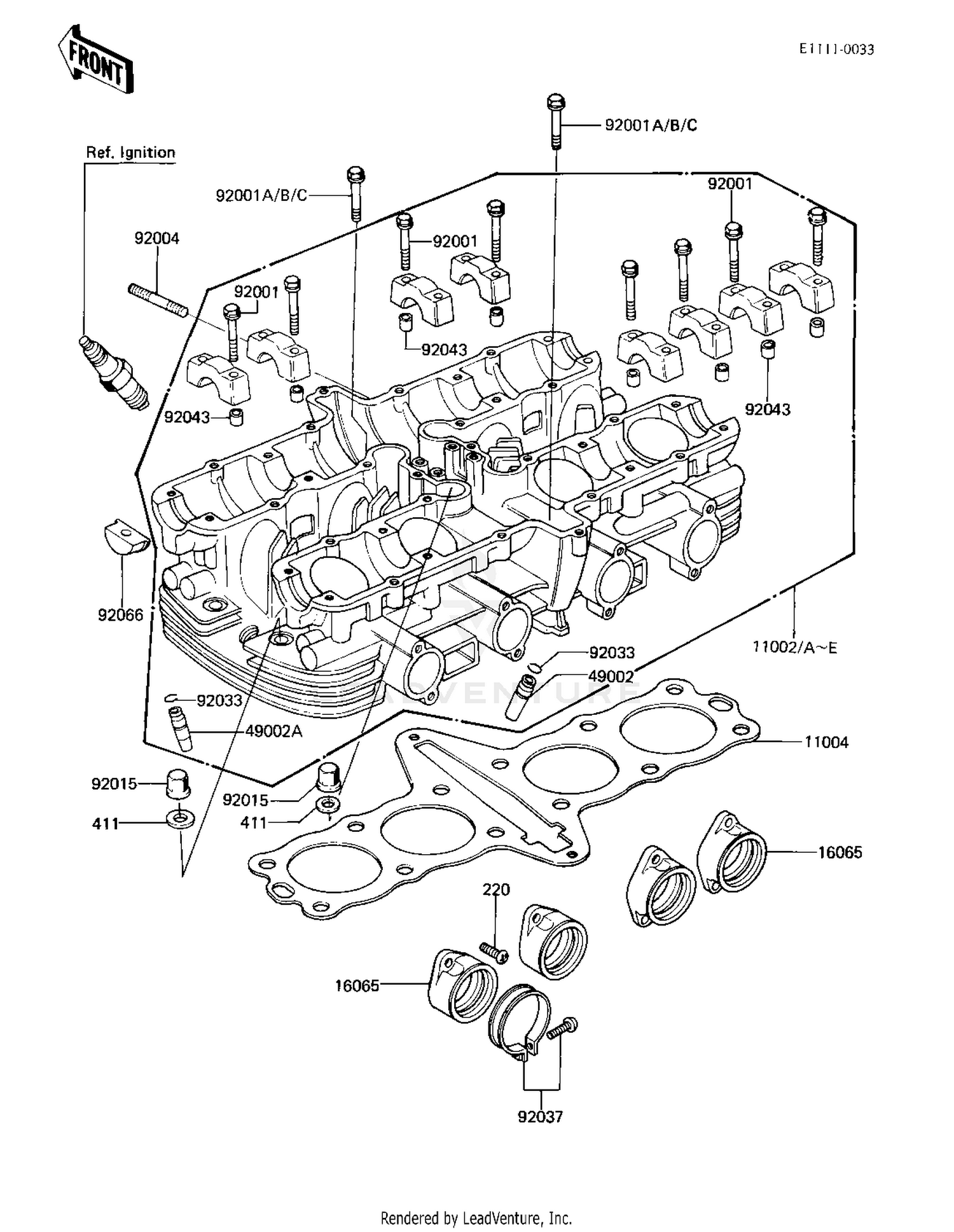

Cylinder Head ('81 -'82 Kz750-e2/e3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11002
HEAD-ASSY-CYLINDER,BL
11002-1078
|
$562.74 | ||
|
Available to order. Add to View Price |
|||
|
#11002A
HEAD-ASSY-CYLINDER,BL
11002-1077
|
$1,870.80 | ||
|
Available to order. Add to View Price |
|||
|
#11002B
HEAD-ASSY-CYLINDER,BL
11002-1077
|
$1,870.80 | ||
|
Unavailable |
|||
|
#11002C
HEAD-ASSY-CYLINDER,BL
11002-1078
|
$562.74 | ||
|
Unavailable |
|||
|
#11002D
HEAD-ASSY-CYLINDER,BL
11002-1078
|
$562.74 | ||
|
Unavailable |
|||
|
#11002E
HEAD-ASSY-CYLINDER,BL
11002-1078
|
$562.74 | ||
|
Unavailable |
|||
|
#11004
GASKET-HEAD
11004-1107
Superseded by 11004-1268
|
$210.87 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1132
|
$32.86 | ||
|
Available to order. Add to View Price |
|||
|
#49002
GUIDE-VALVE,INTAKE
12013-009
|
$26.32 | ||
|
Available to order. Add to View Price |
|||
|
#49002A
GUIDE-VALVE,EXHAUST
49002-1002
|
$23.16 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X38
92001-1105
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,8X43
92001-1445
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,8X43
92001-1445
|
$8.73 | ||
|
Unavailable |
|||
|
#92001C
BOLT,FLANGED,8X43
92001-1445
|
$8.73 | ||
|
Unavailable |
|||
|
#92004
STUD,6X27
92004-066
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CYLINDER HEAD
92015-076
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,VALVE GUIDE
92036-023
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP-INLET PIPE
92037-061
|
$17.11 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,CAMSHAFT,11.35X1
92066-1111
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,10MM
411B1000
Superseded by 411AA1000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
