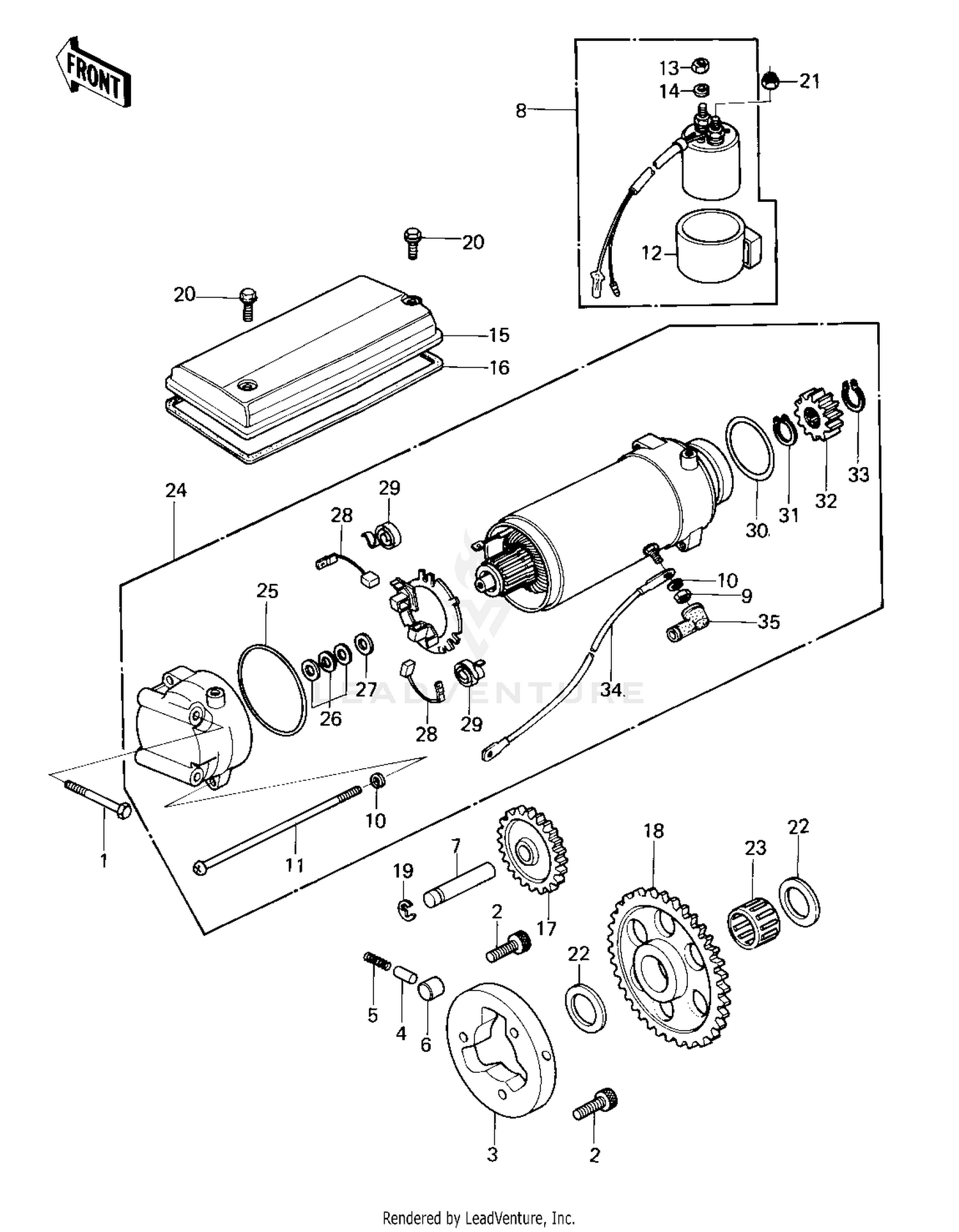

Starter Motor/starter Clutch ('80 Kzy 50 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-UPSET
112G0660
Superseded by 112BA0660
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT-SOCKET,8X12
120P0812
Superseded by 120CA0812
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH-ASSY-ONEWAY
13193-1012
Superseded by 13193-1062
|
$178.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
92043-087
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
92081-110
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROLLER
92122-004
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT,IDLE GEAR
21143-003
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY,MAGNETIC
21164-005
|
$152.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,PAN HEAD,6X130
21099-006
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER,MAGNETIC SWITCH
21064-002
Superseded by 92161-1722
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Unavailable |
|||
|
#14
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#15
COVER,STARTER
21165-003
|
$22.14 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET,STARTER COVER
21166-003
|
$14.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR,IDLE,29T
21167-004
|
$97.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET,STARTER,58T
12046-1032
|
$100.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP 12MM
482K0200
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT,6X10
92001-1151
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,LOCK 6MM
92017-014
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER,25X36X3.2
92026-1025
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRG,NEEDLE,K253017
92046-056
|
$22.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
STARTER-ELECTRIC
21163-1190
|
$569.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
0 RING,62MM
21027-006
|
$15.09 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER,9.1X18X0.2
21025-011
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER,THRUST,1.6T
21025-010
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
CARBON BRUSH
21039-003
|
$39.19 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING,CARBON BRUSH
21040-003
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
|
#30
RING-O
21027-008
Superseded by 92055-1669
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
|
#31
RING-SNAP
92033-034
Superseded by 92033-1326
|
$10.07 | ||
|
Available to order. Add to View Price |
|||
|
#32
GEAR-SPUR
21053-004
Superseded by 59051-1401
|
$89.67 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP,13M/M
92033-037
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
|
#34
WIRE,STARTER MOTOR
26011-1081
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#35
GROMMET,STARTER TERMINAL
21017-017
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
