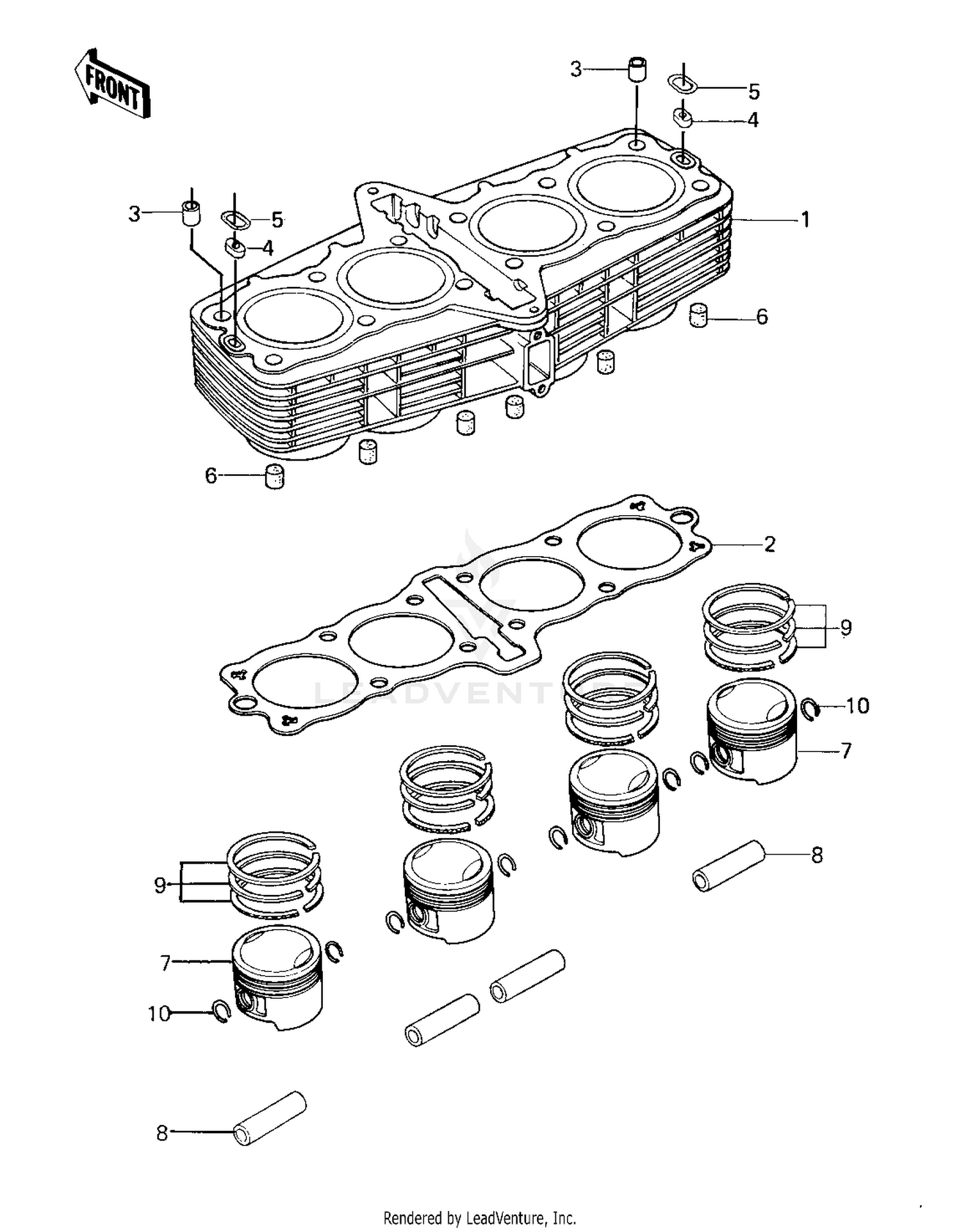

Cylinder Pistons ('80 Kzy 50-e1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER,
11005-1054
|
$684.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,CYLINDER BASE
11060-1144
Superseded by 11060-1726
|
$35.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN,11X14X12.3
92043-1266
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN,OIL LINE
92043-1210
Superseded by 92043-1546
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING-O
92055-1147
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG,DAMPER
92066-1016
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON,STD
13001-1027
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON-ENGINE,STD
13001-1059
|
$59.74 | ||
|
Unavailable |
|||
|
#7
PISTON,0.020" O.S.
13029-1021
|
$131.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON,0.040" O.S.
13027-1022
|
$48.06 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN-PISTON
13002-1001
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET,PISTON STD
13008-5031
|
$105.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET,PISTON 0.020
13025-5014
|
$87.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET,PISTON,0.040
13024-5014
|
$87.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING-SNAP
92036-005
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
