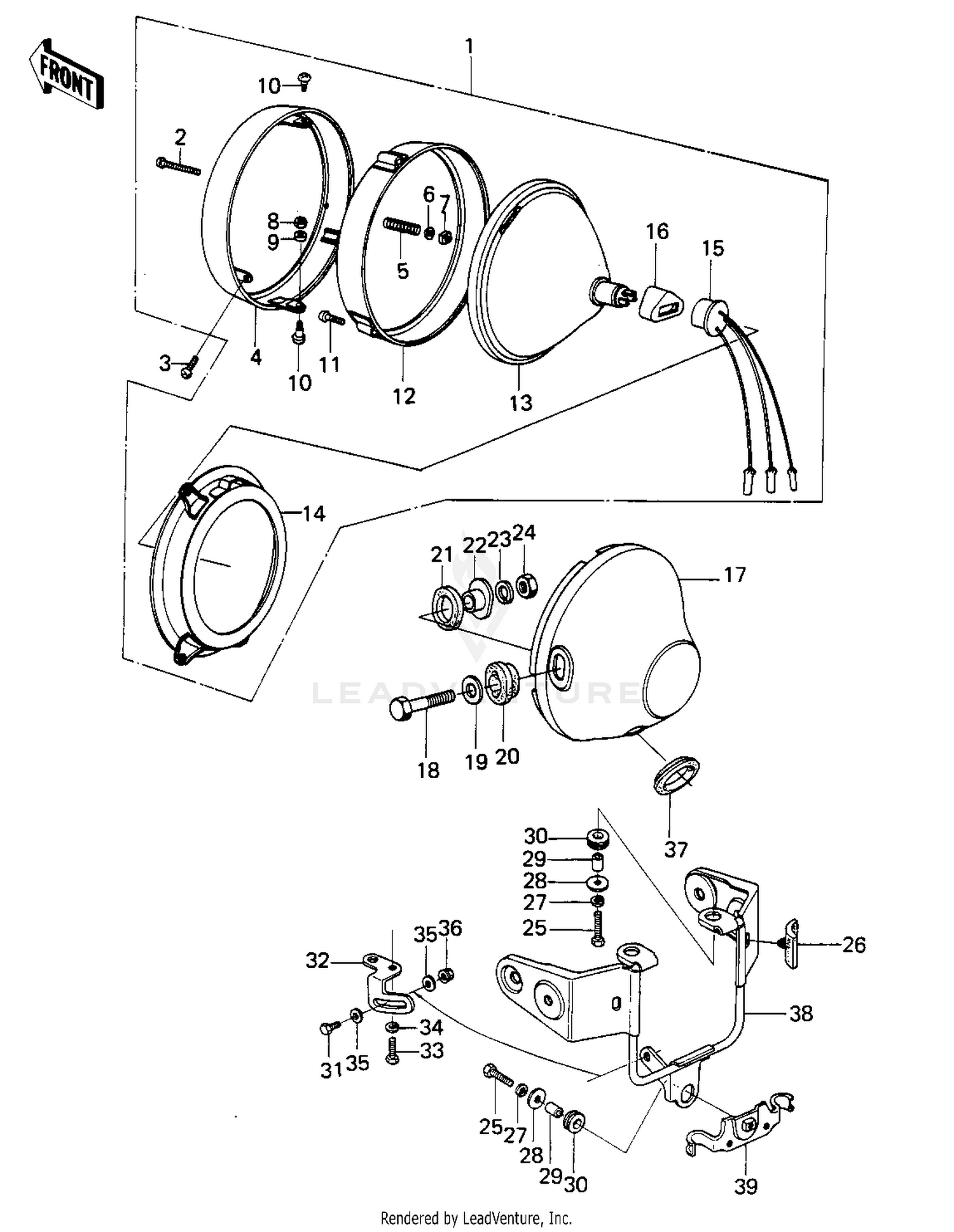

Headlight ('80 Kzy 50-e1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP UNIT,HEAD
23004-1009
|
$114.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW FORCUS ADJUST
23019-021
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW,5X14
23019-022
Superseded by 92172-0145
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIM,HEAD LAMP
23006-038
|
$114.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING FOCUS ADJUST
23014-005
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
23021-004
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,HEAD LAMP RIM FIT
23020-023
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-PLAIN,5MM
23021-012
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-PAN HEAD,5X12
23019-023
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW PAN HEAD 3X12
220B0312
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING,HEAD LAMP MOUNT
23072-001
|
$42.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
LENS-COMP,HEAD LAMP
23007-1006
Superseded by 23007-1433
|
$119.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING,HEAD LAMP MOUNT
23074-001
|
$62.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
SOCKET ASSY,HEAD LAMP
23008-037
|
$20.83 | ||
|
Available to order. Add to View Price |
|||
|
#16
DUST COVER,HEAD LAMP
49016-1009
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
BODY-COMP-HEAD LAMP
23005-1015-21
|
$221.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,10MM
92007-024
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
411D1000
Superseded by 92200-1313
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER RUBBER
23066-022
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER RUBBER
23066-021
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR,HEAD LIGHT
23052-011
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER RUBBER
92075-1243
|
$7.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR,6.8X10X12
92027-241
Superseded by 92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET
11034-1676
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT,LOCK 6MM
92017-014
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#37
GROMMET
92071-1008
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRACKET,HEAD LAMP
11034-1674
|
$169.04 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET,HEAD LAMP UND
11034-1675
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
