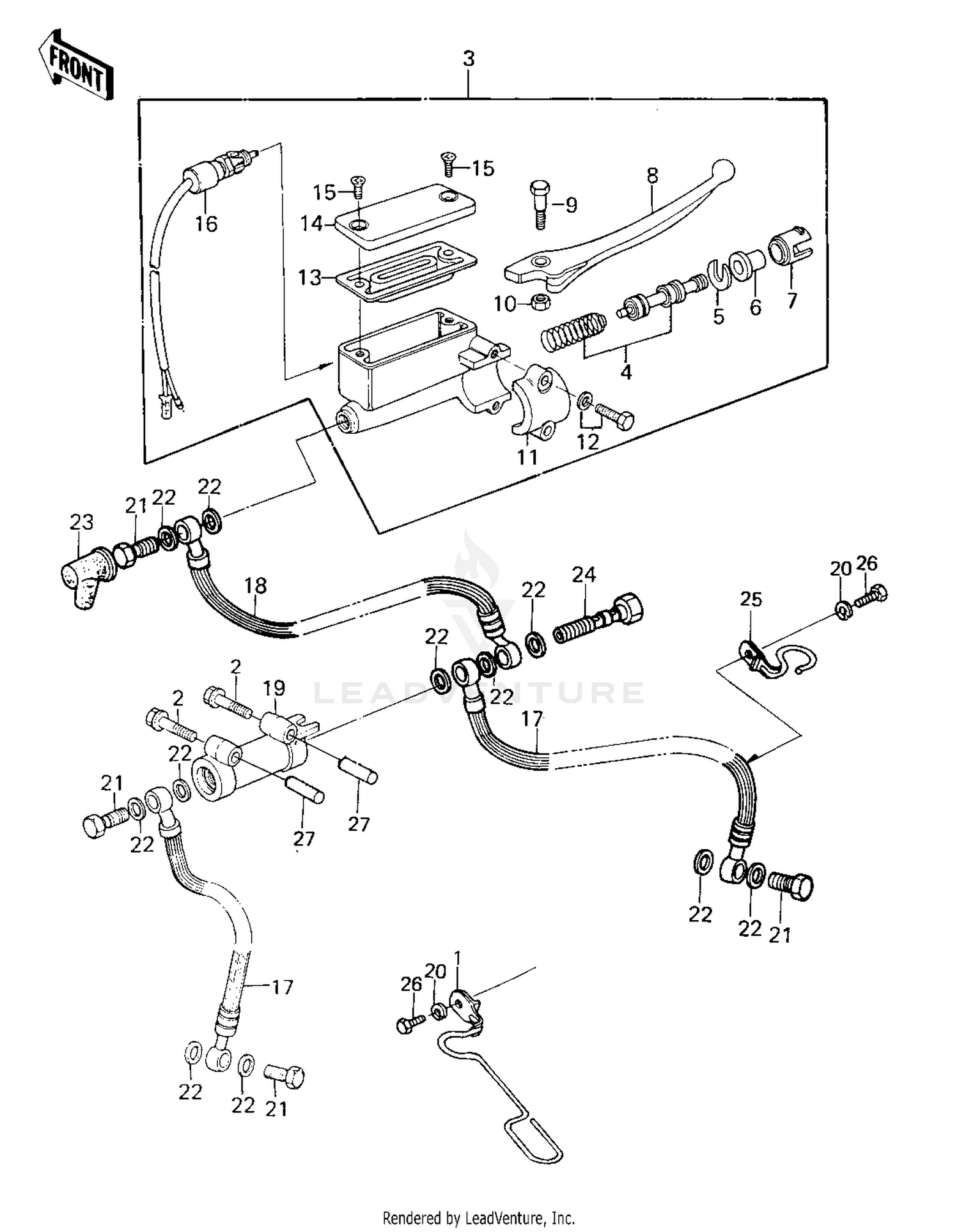

Front Master Cylinder ('80 Kzy 50-e1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP,CABLE
92037-1116
|
$23.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,6X65
130G0665
Superseded by 92002-1140
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
CYLINDER ASSY,FRONT
43015-1032
|
$511.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON-COMP-BRAKE
43020-1023
|
$91.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
STOPER,PISTON
43022-1001
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST COVER
49016-1010
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
LINER,PISTON
14008-1007
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER,FRONT BRAKE
46092-1004
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,CLUTCH LEV FITT
92001-1056
|
$14.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER,MASTER CYLINDR
43034-1001
|
$33.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,HEX HEAD,6X25
43033-003
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
43028-1008
|
$35.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP,OIL CUP
43026-1006
|
$75.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW,COUNTERSUNK HED
92001-1055
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH,BRAKE
27010-1028
|
$32.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE,BRAKE
43059-1030
|
$100.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE-BRAKE
43059-1538
|
$97.64 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT,FR BRAKE HOSE
43061-1002
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOOT,DUST
49006-1041
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,OIL,L=37
92002-1909
Superseded by 92153-0628
|
$11.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP,FRNT BRK HOSE
92037-1054
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR,8X12X25
92027-1249
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
