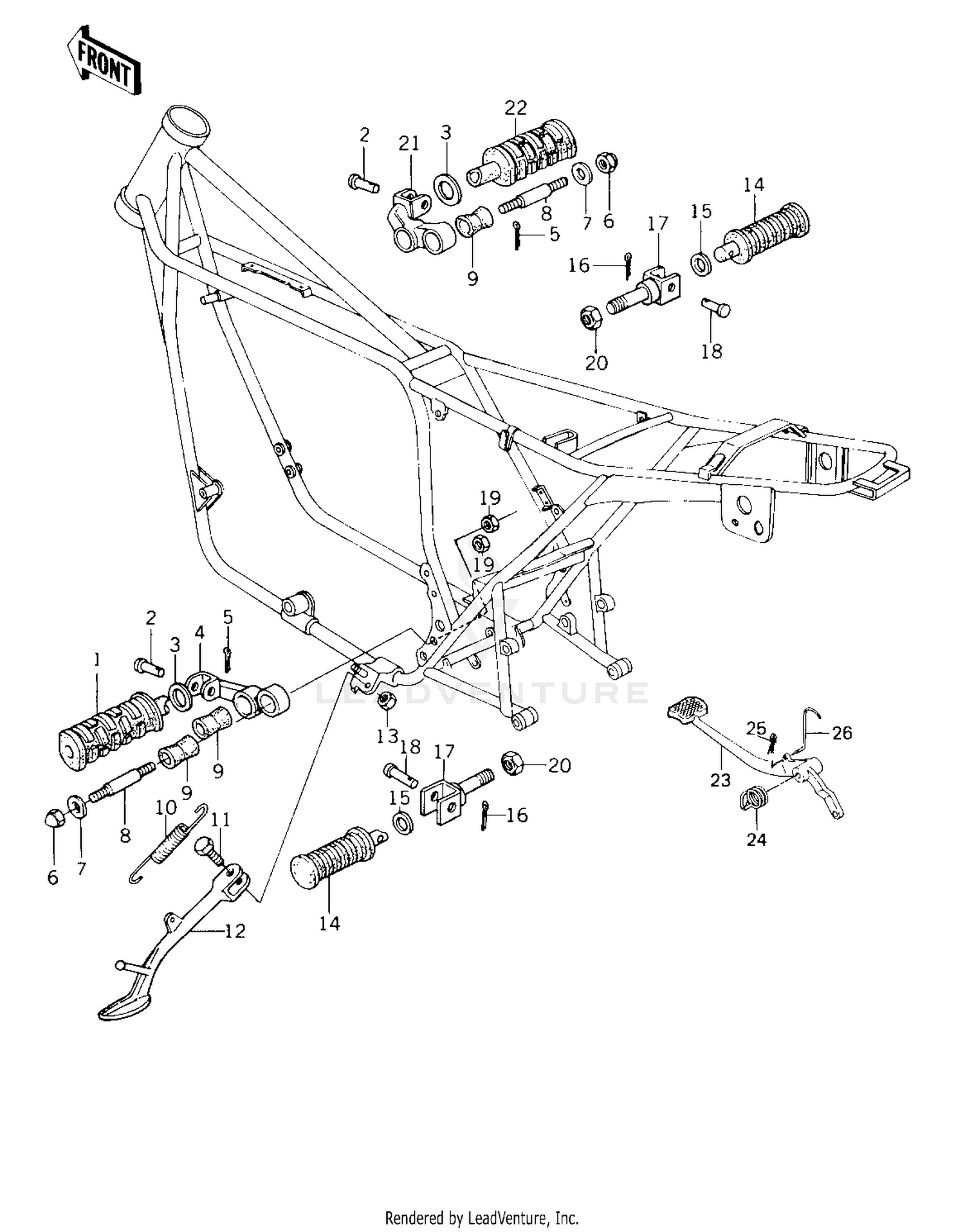

Footrests/stand/brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR-FOOTREST,L.H
34028-011
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN,8X31
92043-080
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,25X36X2.3
92022-250
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET,FOOTREST,L.H
34003-036
|
$116.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN COTTER 2.5X16
550D2516
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,CAP AND LOCK,8MM
92019-013
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP,FOOTRESTBAR
92102-010
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
STUD,FOOTREST BAR FIT
92004-048
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER RUBBER,FOOTRST
92075-140
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING,STAND
34025-005
Superseded by 92145-0106
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,SIDE STAND
92003-079
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAND-SIDE
34024-065
|
$113.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER,FOOTREST
92076-027
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-PLAIN (OPT)
92022-199
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN,COTTER,2.0X12
550D2012
Superseded by 550AA2012
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET,REAR FOOTREST
33028-011
|
$35.63 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN,6X28
92043-1464
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Unavailable |
|||
|
#20
NUT-HEX-FINE
315B1200
Superseded by 315AA1200
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET,FOOTREST,R.H
34003-037
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAR-FOOTREST,R.H
34028-012
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
PEDAL,BRAKE
43001-073
|
$67.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING,BRAKE PEDAL
43005-039
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN COTTER 1.6X10
550D1610
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOOK,BRK LAMP SW SPR
27012-010
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
