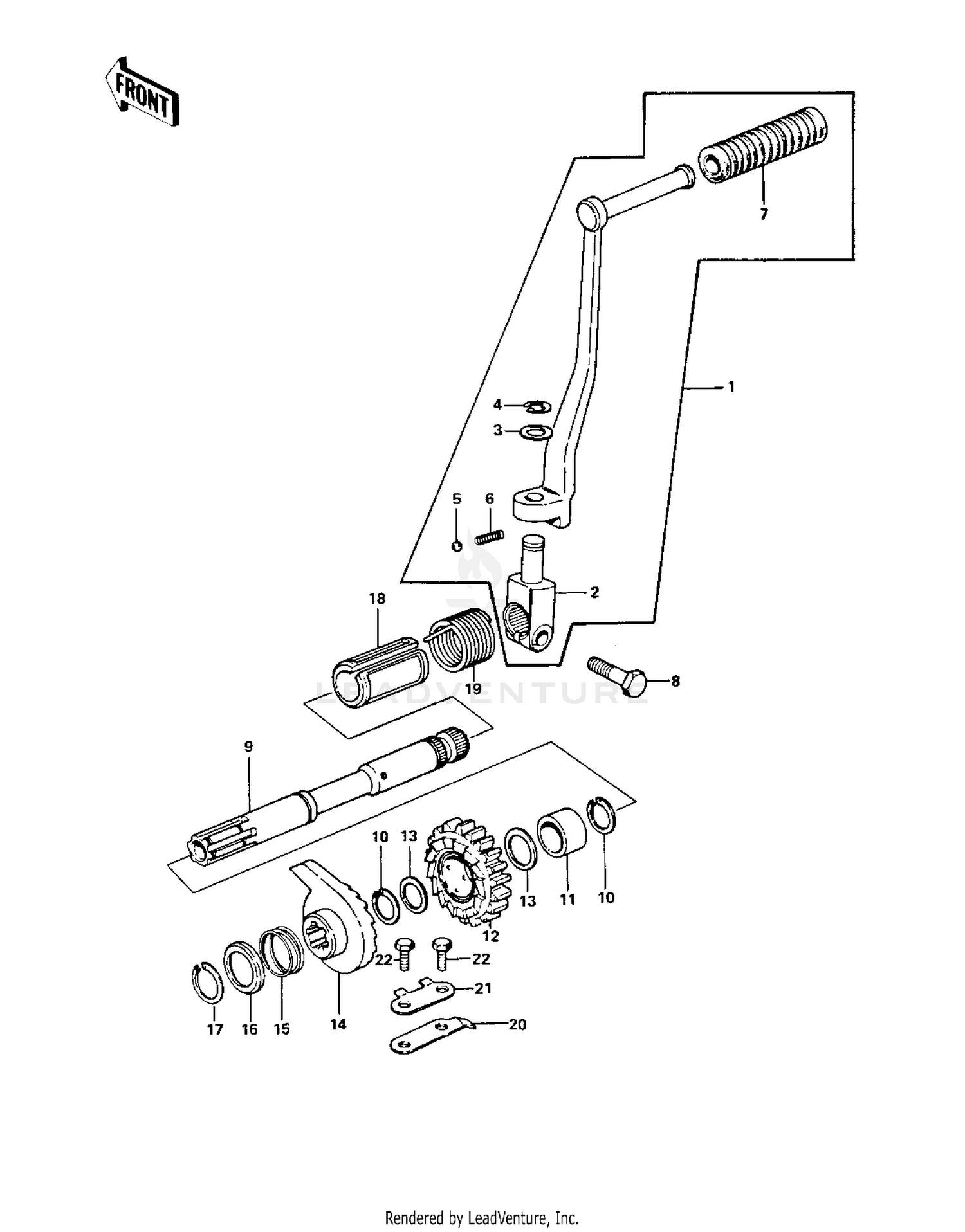

Kickstarter Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL,KICKSTARTER
13058-044
|
$288.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOSS-KICK PEDAL
13061-014
|
$56.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER BRAKE PEDAL
92022-085
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP-TYPE-E,10MM
482J0100
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING,KICK PEDAL
92081-020
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER,KICK PEDAL
13063-004
Superseded by 92161-2388
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-HEX HEAD,10X25
114B1025
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT,KICKSTARTER
13066-029
|
$105.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING-SNAP,20X25.5X1.2
92033-025
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR,KICKSHAFT
92028-126
|
$29.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR,KICKSTARTER 19T
13068-028
|
$67.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER,PLAIN,22MM
92022-207
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
RATCHET,KICK SHAFT
13078-011
|
$104.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING RATCHET
92081-104
|
$9.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP,KICKSTARTER
92102-008
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP-TYPE-C,19MM
480J1900
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUID,KICK SHAFT
13070-005
|
$8.66 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING,KICKSTARTER
92082-004
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOPPER,KICKSTARTER
13072-012
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-LOCK
92024-036
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
