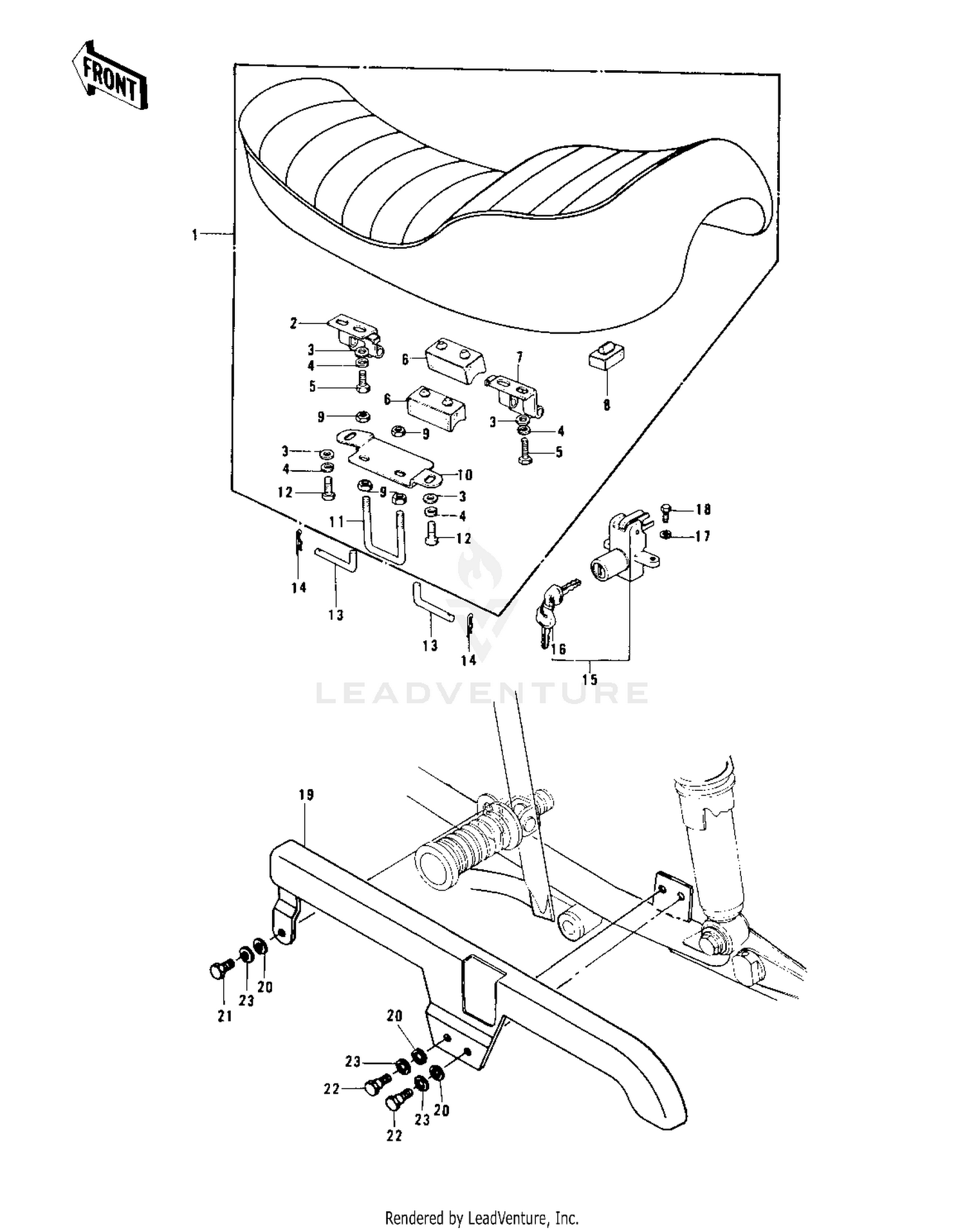

Seat/chain Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT,LTD 900/1000
53001-130
|
|||
|
Available to order. Add to View Price |
|||
|
#2
HINGE,REAR
53009-030
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER RUBBER,SEAT
92075-139
|
$11.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
HINGE,REAR
53009-032
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
92075-099
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET,SEAT CATCH
53058-003
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET,SEAT CATCH
53058-002
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN,DUAL SEAT PIVOT
53011-008
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
COTTER PIN
92041-003
|
$5.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
LOCK,SEAT
27030-005
|
$140.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#18
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
CASE-CHAIN
36014-069
|
$75.61 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-PLAIN,6MM
411D0600
Superseded by 411S0600
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-HEX HEAD,6X16
110N0616
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-UPSET
112G0614
Superseded by 112BA0614
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
