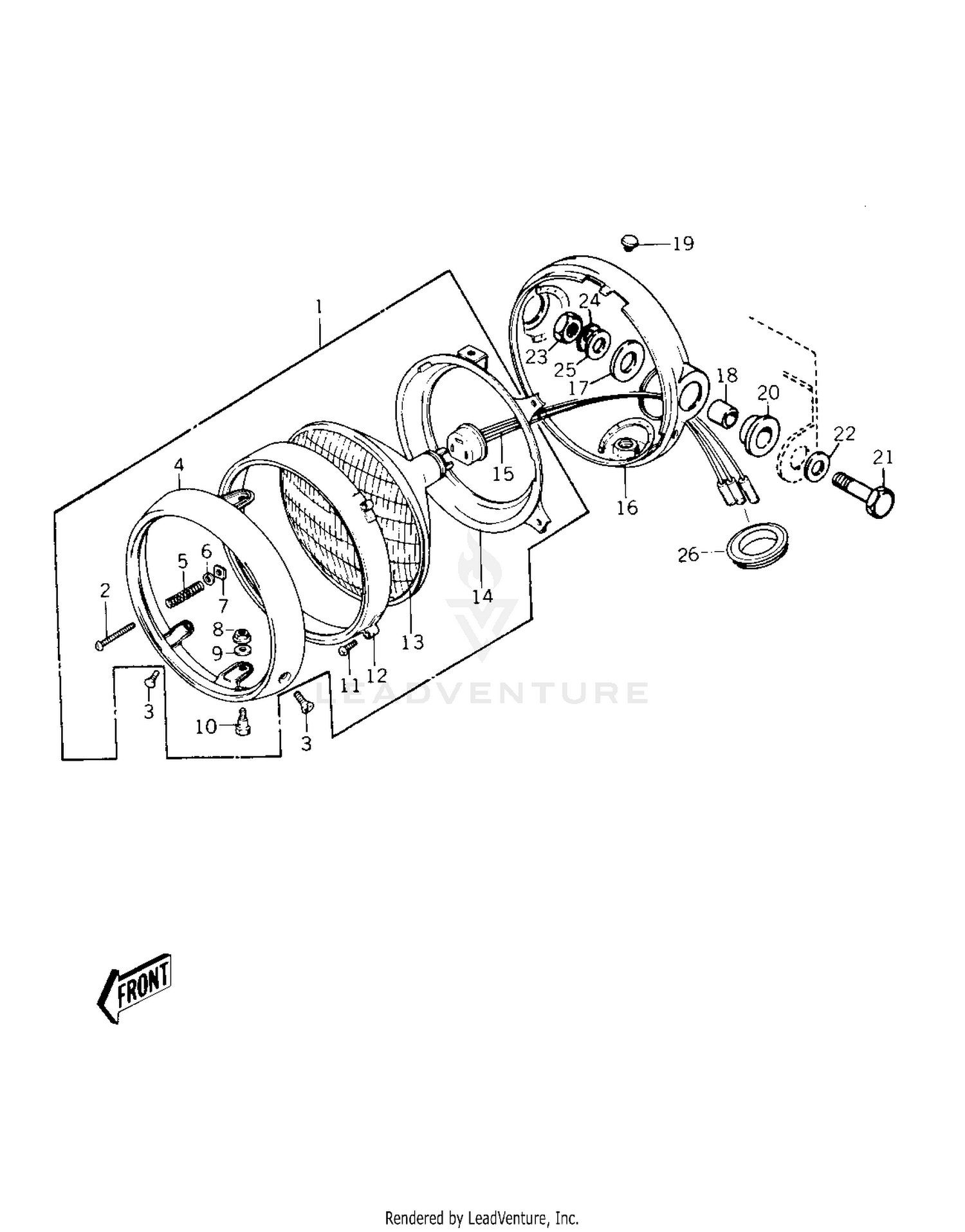

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP UNIT,HEAD
23003-017
|
$383.87 | ||
|
Unavailable |
|||
|
#2
SCREW FORCUS ADJUST
23019-021
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW,5X14
23019-022
Superseded by 92172-0145
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIM,HEAD LAMP
23006-038
|
$114.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING FOCUS ADJUST
23014-005
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
23021-004
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,HEAD LAMP RIM FIT
23020-023
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-PLAIN,5MM
23021-012
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-PAN HEAD,5X12
23019-023
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW PAN HEAD 3X12
220B0312
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING,HEAD LAMP MOUNT
23072-001
|
$42.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEALD BEAM UNIT
23007-041
|
$144.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING,HEAD LAMP MOUNT
23074-001
|
$62.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
SOCKET ASSY,HEAD LAMP
23008-037
|
$20.83 | ||
|
Available to order. Add to View Price |
|||
|
#16
BODY,HEAD LIGHT
23005-055
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
BODY-COMP-HEAD LAMP
23005-1018
|
$78.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER RUBBER
23066-021
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
23052-010
|
$12.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG REAR FENDER RUBB
92074-006
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER RUBBER
23066-022
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,10MM
92007-024
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
411D1000
Superseded by 92200-1313
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
411D1000
Superseded by 92200-1313
|
$4.63 | ||
|
Unavailable |
|||
