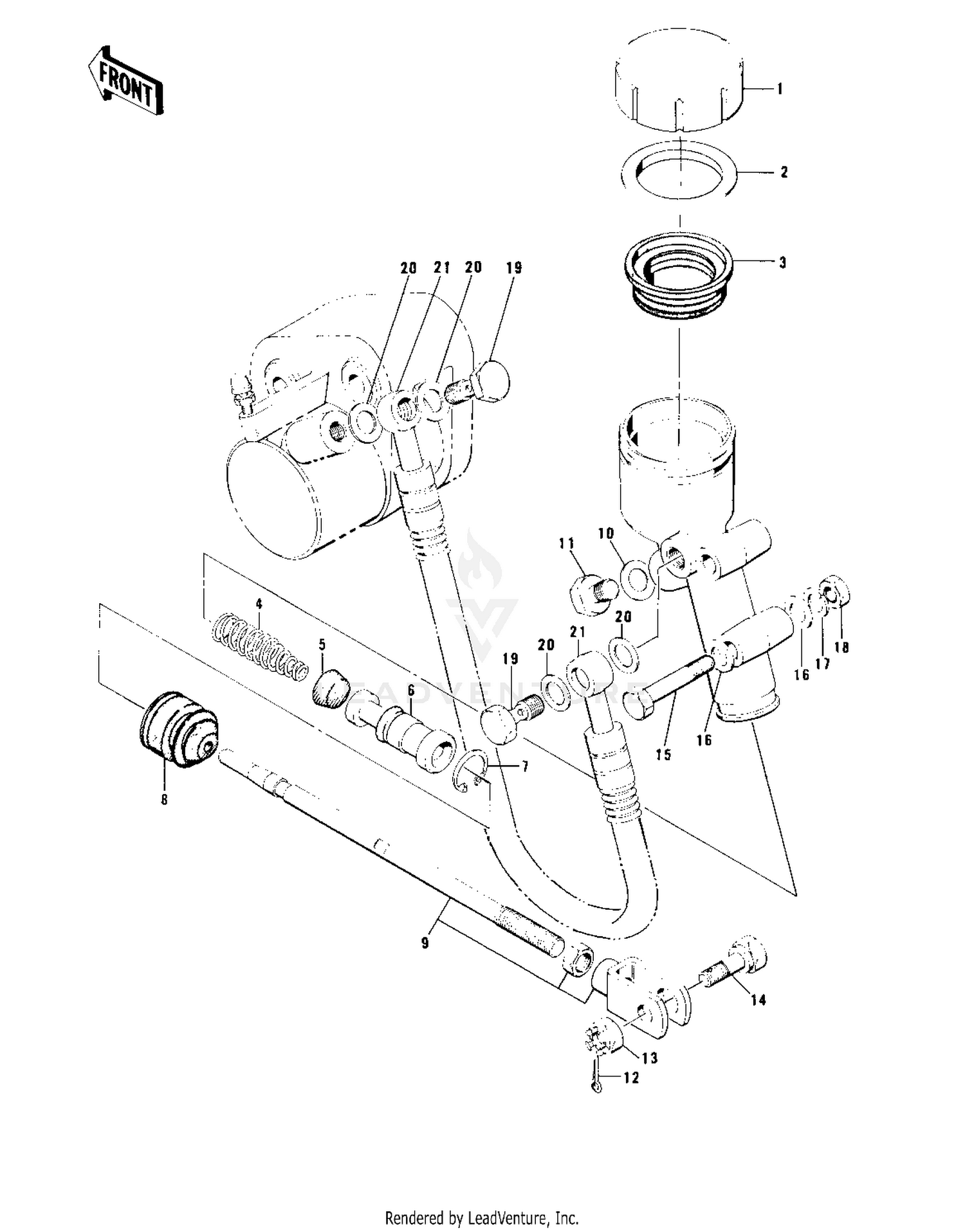

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-11
CYLINDER ASSY,MASTER
43015-036
|
$259.80 | ||
|
Available to order. Add to View Price |
|||
|
#1
CAP-BRAKE
43026-003
Superseded by 43026-1054
|
$33.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE-MASTER CYLINDER
43027-001
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM
43028-003
|
$26.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING ASSY, RETURN
43018-002
|
$37.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUP, PRIMARY
43019-002
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON ASSY
43072-004
|
$93.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP,20MM
481J2000
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOTS
43024-002
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD,BRAKE
43010-022
|
$64.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
'O'RING
43079-002
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
43070-003
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN-COTTER,2.0X20
550D2020
Superseded by 550AA2020
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-CASTLE
321B0800
Superseded by 321AA0800
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,MASTER CYL ROD
92003-210
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,10X45
92001-1182
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,REAR BRAKE
43059-030
|
$38.96 | ||
|
Available to order. Add to View Price |
|||
