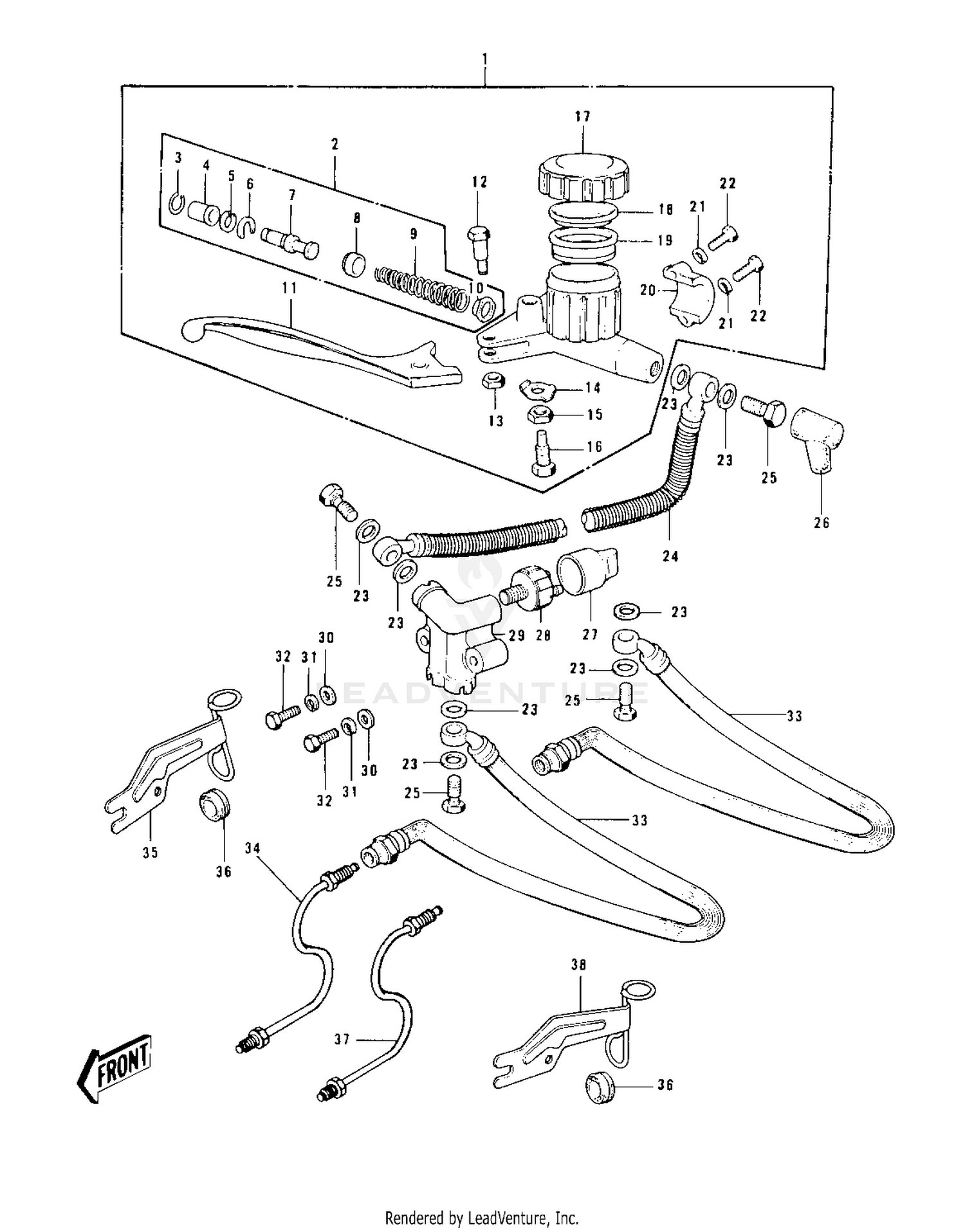

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY,MASTER
43015-018
|
$329.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
REPAIR ASY,MASTER CYL
43073-005
|
$107.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER-BOOTS
43025-001
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOTS
43024-001
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP-TYPE-C,18MM
481J1800
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER-PISTON
43022-001
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON ASY, MSTR CYL
43072-002
|
$31.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUP, PRIMARY
43019-002
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING ASSY, RETURN
43018-002
|
$37.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE ASSY, CHECK
43017-002
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER,FRONT BRAKE
43029-003
|
$101.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
43033-004
|
$26.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-LOCK,8MM
43031-001
|
$8.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,LEVER ADJUSTING
43030-003
|
$11.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP-BRAKE
43026-003
Superseded by 43026-1054
|
$33.54 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE-MASTER CYLINDER
43027-001
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIAPHRAGM
43028-003
|
$26.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER-MASTER CYL
43034-001
|
$38.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-UPSET
110N0625
Superseded by 112N0625
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE,FRONT BRAKE
43059-007
|
$140.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOOT,DUST
49006-1041
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP,FRONT BRK SWITCH
11012-1037
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#28
SWITCH-FRONT BRAKE
43065-001
|
$57.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT,FOUR WAY
43075-002
|
$41.39 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#31
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT,HEX HEAD,6X45
110N0645
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE,FRONT BRAKE
43059-011
|
$148.98 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIPE,BRIDGE,L.H
43060-025
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET-BRAKE HOSE
43063-001
|
$64.56 | ||
|
Available to order. Add to View Price |
|||
|
#36
GROMMET-HOSE BRACKET
43064-001
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE,BRIDGE,R.H
43060-026
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRACKET-BRAKE HOSE
43063-003
|
$80.10 | ||
|
Available to order. Add to View Price |
|||
