1976 Kawasaki KZ900/Z1 Front Hub OEM Parts

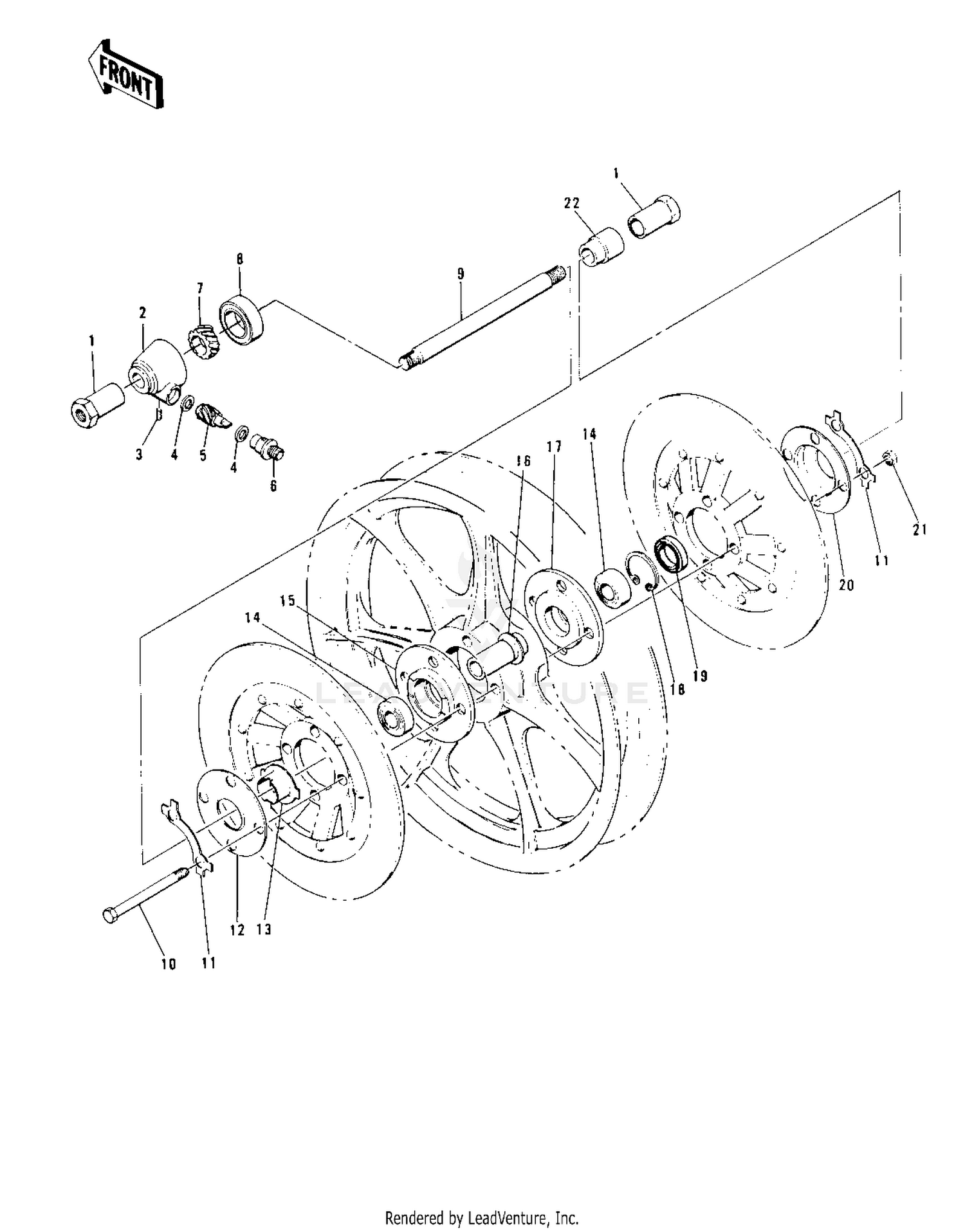

Front Hub Diagram

Item	MSRP	Qty
#1 COLLAR,FRONT AXLE 41069-033	$45.68
Available to order. Add to View Price
#2 GEAR BOX ASSY 41078-008	$196.89
Available to order. Add to View Price
#3 PIN,SPRING 41082-001	$3.80
Available to order. Add to View Price
#4 WASHER,5.1X9X0.4 41063-001	$4.54
Available to order. Add to View Price
#5 PINION,SPEEDOMETER 41060-017	$40.18
Available to order. Add to View Price
#6 BUSH,SPEEDMETER CABLE 41062-005	$18.78
Available to order. Add to View Price
#7 GEAR-METER SCREW,26T 41059-026	$40.89
Available to order. Add to View Price
#8 SEAL-OIL,BJN30427-C3 92049-1057	$8.96
Available to order. Add to View Price
#9 AXLE,FRONT 41068-049	$127.23
Available to order. Add to View Price
#10 BOLT,HEX HEAD,10MM 92001-179	$4.00
Available to order. Add to View Price
#11 WASHER,LOCK 92088-023	$11.19
Available to order. Add to View Price
#12 DUST COVER 41042-014	$27.31
Available to order. Add to View Price
#13 RECEIVER,GEAR 41064-013	$21.12
Available to order. Add to View Price
#14 BEARING BALL #6203 601B6203	$13.77
Available to order. Add to View Price
#15 BRG ADPTR LH FR 41088-001	$84.53
Available to order. Add to View Price
#16 COLLAR,FR HUB BEARING 41039-031	$9.74
Available to order. Add to View Price
#17 BRG ADPTR RH FR 41088-002	$90.67
Available to order. Add to View Price
#18 RING-SNAP,40MM 92033-1040	$5.71
Available to order. Add to View Price
#19 OIL SEAL 654A254008	$24.84
Available to order. Add to View Price
#20 DUST COVER 41042-015	$21.73
Available to order. Add to View Price
#21 NUT-HEX-FINE,10MM 315G1000 Superseded by 315BA1000	$1.61
Available to order. Add to View Price
#22 COLLAR,FRONT AXLE 41069-032	$25.61
Available to order. Add to View Price
