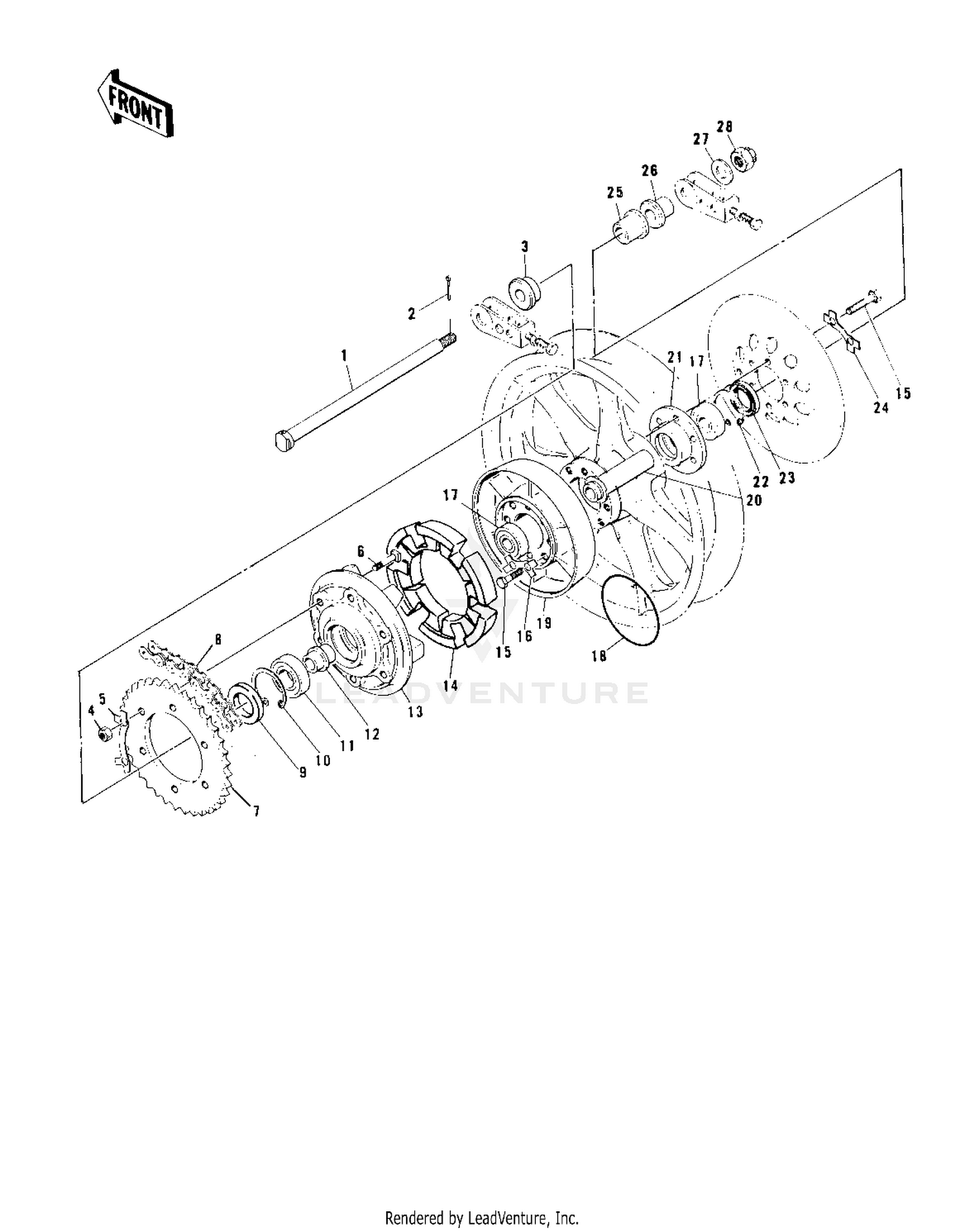

Rear Hub/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE,REAR
42031-034
|
$135.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR,RR HUB COUPLN
42032-077
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT 10MM
42045-005
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,LOCK
92088-031
|
$16.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
92001-161
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET
42041-171
|
$90.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
DR CHAIN 630X92
92057-107
|
$414.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL-OIL,AJN40627
92050-027
|
$20.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING-SNAP,62MM
92033-1044
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING-BALL,6206-9C3
601B6206
Superseded by 92045-0110
|
$24.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
SLEEVE,COUPLING
42036-032
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
COUPLING ASSY,RR HUB
42008-039
|
$304.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHOCK DAMPER
42014-031
|
$68.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
92001-183
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, LOCK
92088-030
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING BALL #6304
601B6304
|
$35.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING,115MM
671B25115
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#19
ADAPTER,BEARING
41088-006
|
$171.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR,RR HUB BEARING
41039-036
|
$16.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
ADAPTER,BEARING
41088-005
|
$61.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL TC26388
92052-008
|
$25.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER,LOCK
92088-032
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR,REAR AXLE
42032-061
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
SLEEVE,RR CALIPER HOL
42036-027
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER,PLAIN,20MM
92022-248
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
