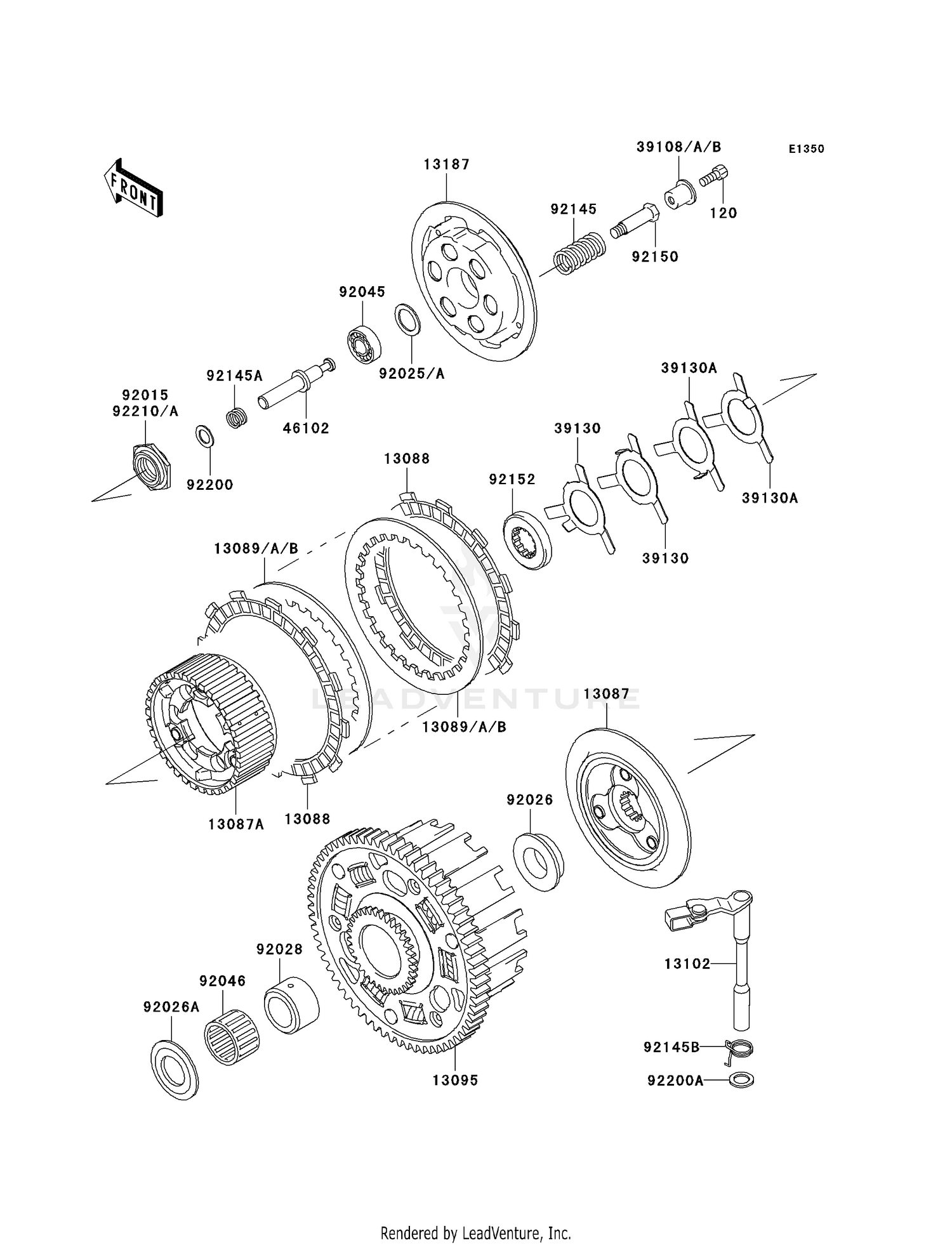

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X16
120P0616
Superseded by 120CA0616
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-0001
|
$106.73 | ||
|
Available to order. Add to View Price |
|||
|
#13087A
HUB-CLUTCH
13087-0002
|
$89.60 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1124
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE CLUTCH STEEL
13089-013
|
$12.69 | ||
|
Available to order. Add to View Price |
|||
|
#13089A
PLATE-CLUTCH,T=2.0
13089-1073
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#13089B
PLATE-CLUTCH,T=1.4
13089-1126
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1410
|
$519.52 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1159
|
$65.82 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-0001
|
$90.49 | ||
|
Available to order. Add to View Price |
|||
|
#39108
RETAINER-SPRING
39108-0001
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#39108A
RETAINER-SPRING,13MM
39108-0003
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#39108B
RETAINER-SPRING
39108-1152
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#39130
SPRING-LEAF
39130-1078
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#39130A
SPRING-LEAF
39130-1079
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD
46102-1449
|
$34.76 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1929
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#92025
SHIM
92025-1755
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92025A
SHIM
92025-1756
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-0022
Superseded by 92026-0139
|
$18.65 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER
92026-1356
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,25X38X29.05
92028-1741
Superseded by 92139-0067
|
$35.64 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6001C3ML01
92045-1235
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,K38X43X28.8X
92046-1263
|
$27.57 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0023
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,ROD
92145-0044
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING
92145-1339
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,CLUTCH
92150-1477
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1277
|
$78.55 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,11.2X18X0.5
92200-1423
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,12X18.5X0.5
92200-1487
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-0053
|
$28.54 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT
92210-0088
|
$27.24 | ||
|
Available to order. Add to View Price |
|||
