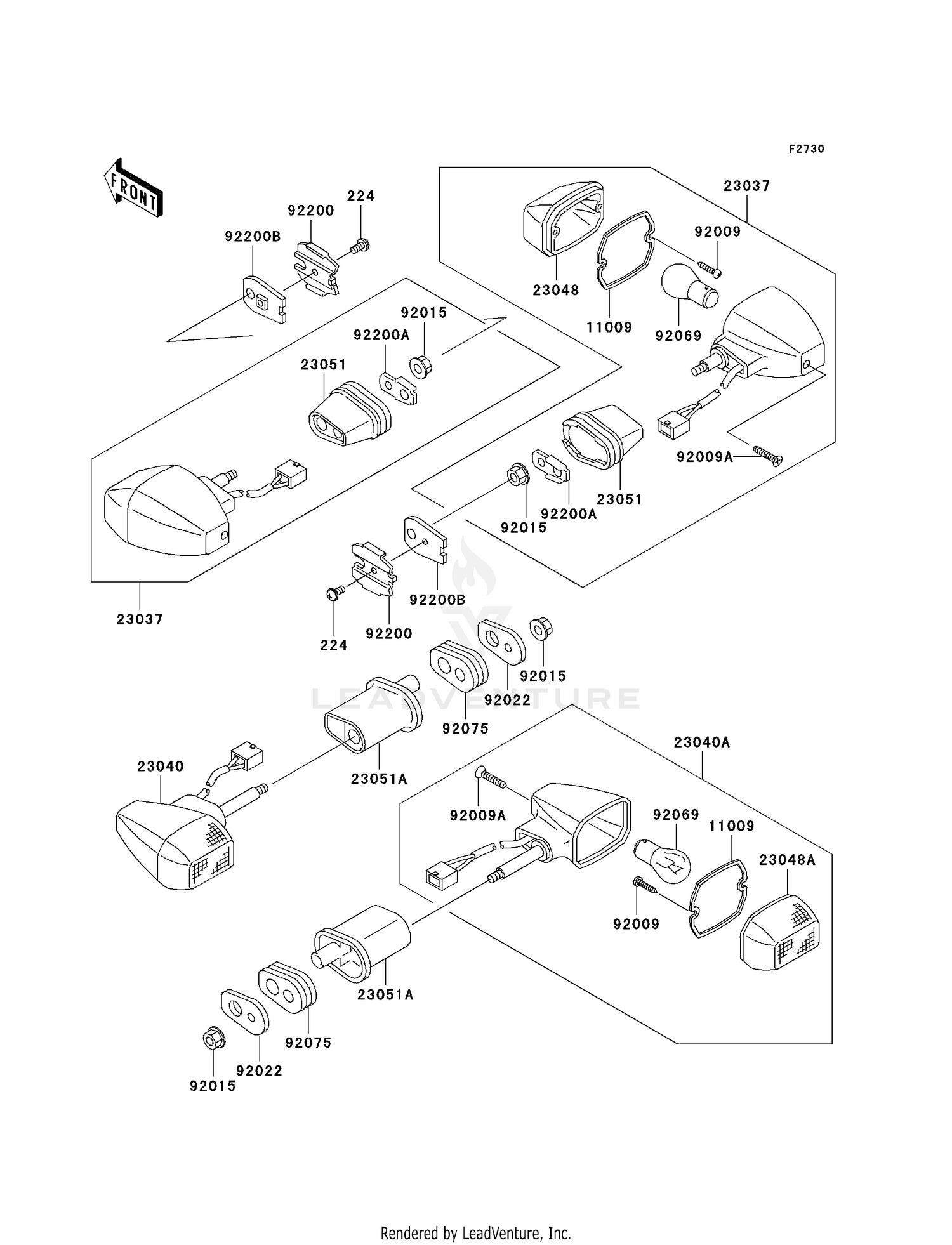

Turn Signals Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#224
SCREW-PAN-WP-CROS,4X8
224C0408
Superseded by 224AB0408
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,SIGNAL LAMP
11009-1402
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#23037
LAMP-ASSY-SIGNAL,FR
23037-0003
|
$77.46 | ||
|
Available to order. Add to View Price |
|||
|
#23040
LAMP-SIGNAL,RR
23040-1295
|
$63.25 | ||
|
Available to order. Add to View Price |
|||
|
#23040A
LAMP-SIGNAL,RR,RH
23040-1320
|
$66.98 | ||
|
Available to order. Add to View Price |
|||
|
#23048
LENS-SIGNAL LAMP
23048-1054
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#23048A
LENS-SIGNAL LAMP
23048-1055
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#23051
BRACKET-SIGNAL LAMP,FR
23051-1207
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#23051A
BRACKET-SIGNAL LAMP
23051-1248
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,3X16
92009-1115
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,4X20
92009-1304
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,SIGNAL LAMP
92022-1672
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SIGNAL LAMP
92075-1698
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,SIGNAL LAMP
92200-1016
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-1021
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,SIGNAL LAMP
92200-1520
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
