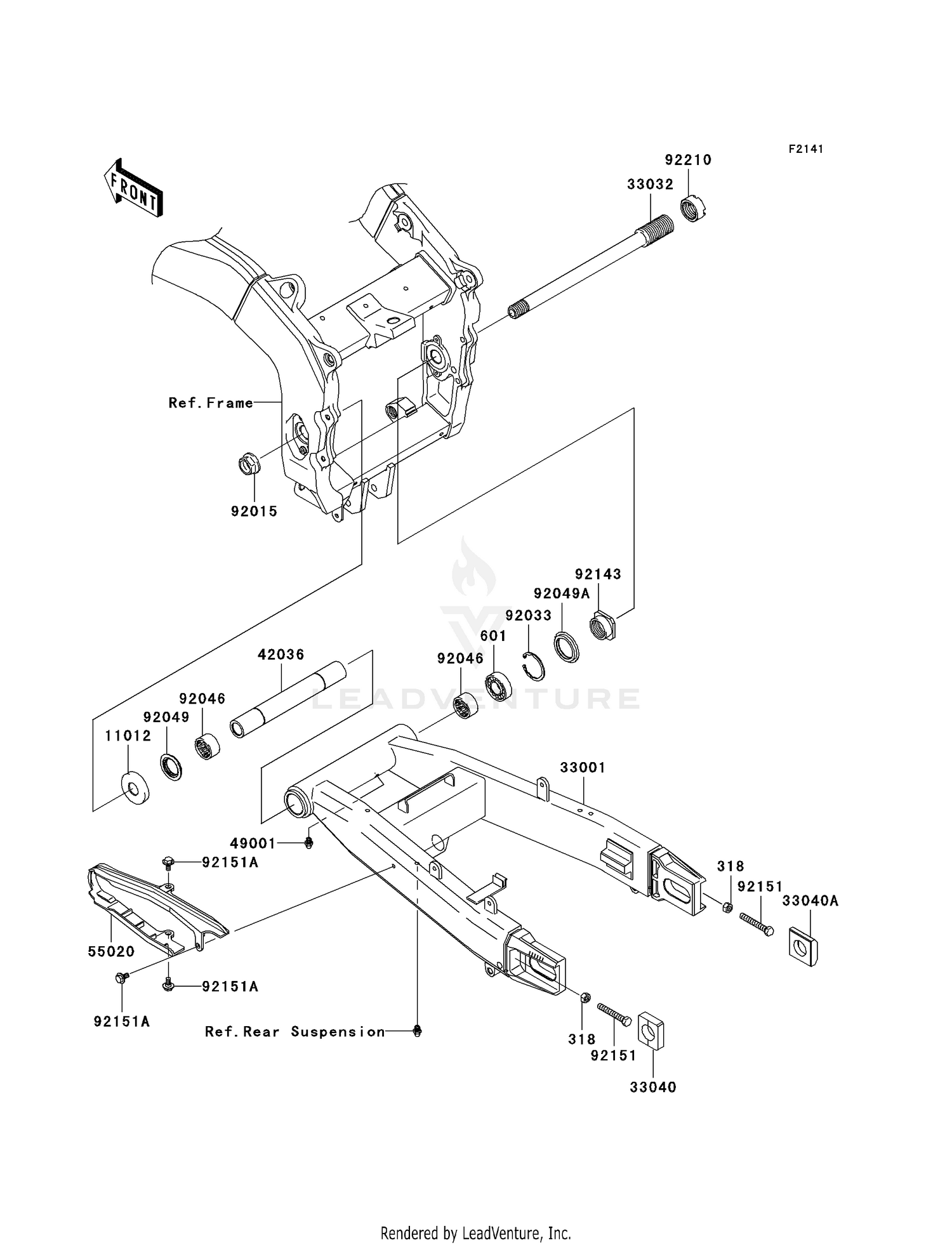

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#318
NUT-HEX-SMALL,8MM
318G0800
Superseded by 318BA0800
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6004
601A6004
Superseded by 92045-0076
|
$15.55 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1658
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING,P.SILV
33001-1636-458
|
$781.22 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-0003
|
$97.19 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER-CHAIN,RH
33040-1114
|
$18.59 | ||
|
Available to order. Add to View Price |
|||
|
#33040A
ADJUSTER-CHAIN,RH
33040-1180
|
$30.55 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,SWING ARM,L=21
42036-1283
|
$89.65 | ||
|
Available to order. Add to View Price |
|||
|
#49001
NIPPLE-GREASE
49001-0001
Superseded by 49001-1051
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,CHAIN
55020-1806
|
$55.82 | ||
|
Unavailable |
|||
|
#92015
NUT,FLANGED,20MM
92015-1724
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BM2817
92046-1111
|
$21.08 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,28X34X5.7
92049-1181
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MHA 35 42 5.7F
92049-1380
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,SWING ARM PIVO
92143-1973
|
$33.95 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,8X55
92151-1578
Superseded by 92153-1407
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,FLANGED,6X13
92151-1703
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,M28X1.0
92210-1347
|
$20.86 | ||
|
Available to order. Add to View Price |
|||
