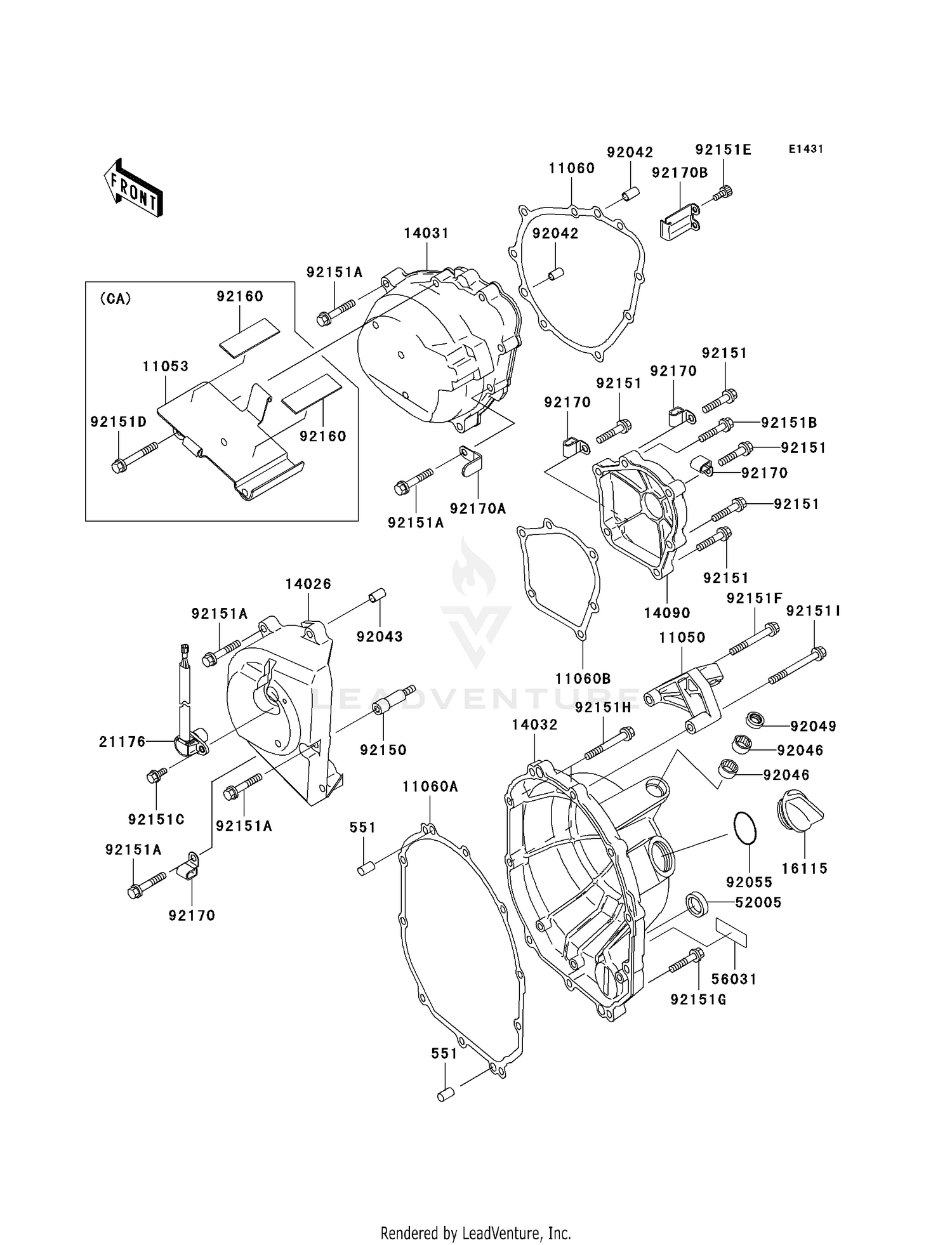

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#551
PIN-DOWEL,8X14
551A0814
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#11050
BRACKET,CLUTCH CABLE
11050-1864
|
$56.39 | ||
|
Available to order. Add to View Price |
|||
|
#11053
BRACKET
11053-1201
|
$24.31 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,GENERATOR COVE
11060-1851
|
$13.95 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,CLUTCH COVER
11060-1853
|
$25.91 | ||
|
Available to order. Add to View Price |
|||
|
#11060B
GASKET,PULSING COVER
11060-1867
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN
14026-1292
|
$159.39 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-1402
|
$210.00 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-1540
|
$315.64 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,PULSING
14090-1916
|
$66.27 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-1009
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,SPEED
21176-1076
Superseded by 21176-0045
|
$126.01 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1057
Superseded by 52005-0071
|
$24.34 | ||
|
Available to order. Add to View Price |
|||
|
#56031
LABEL-MANUAL,OIL CAPA
56031-1895
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TB12205.5
92049-1271
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1889
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT-FLANGED-SMALL,6X30
92151-1134
Superseded by 132BC0630
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,6X35
92151-1135
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,6X35
92151-1135
|
$4.05 | ||
|
Unavailable |
|||
|
#92151B
BOLT,6X30
92151-1201
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#92151C
BOLT,FLANGED,5X12
92151-1305
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#92151D
BOLT-FLANGED-SMALL,6X
92151-1336
Superseded by 132BC0645
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#92151E
BOLT,SOCKET,5X12
92151-1365
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#92151F
BOLT,6X50
92151-1545
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92151G
BOLT,FLANGED,6X30
92151-1547
Superseded by 92153-1574
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151H
BOLT,6X50
92151-1790
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#92151I
BOLT,6X60
92151-1791
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1075
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1577
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1680
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92170B
CLAMP
92170-1843
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
