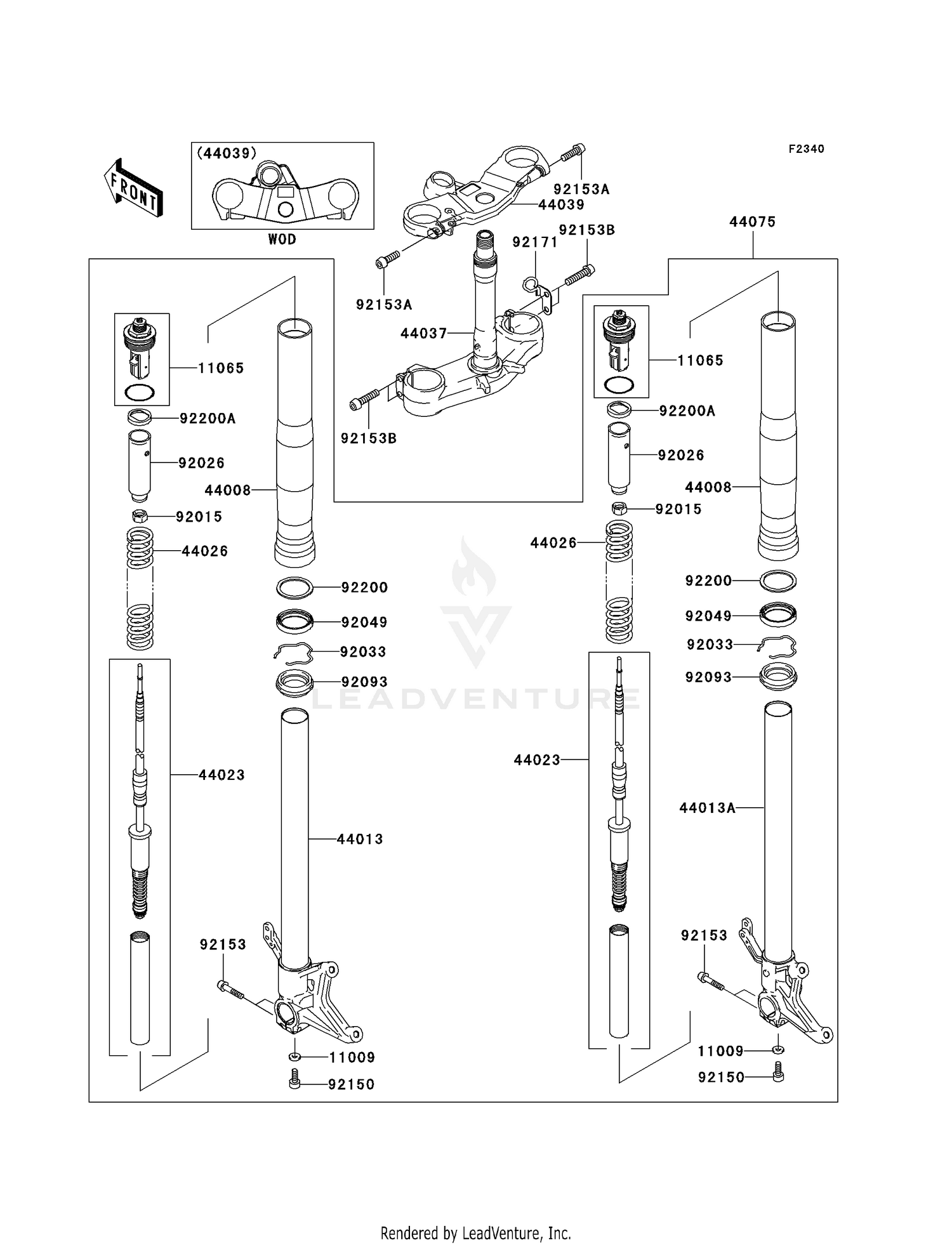

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-0003
|
$177.37 | ||
|
Available to order. Add to View Price |
|||
|
#44008
PIPE-FORK OUTER
44008-0001
|
$1,103.81 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER,LH
44013-1510
|
$689.88 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,RH
44013-1511
|
$689.88 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-0001
|
$493.63 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-0001
|
$79.64 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1442
|
$824.49 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1332
|
$321.52 | ||
|
Available to order. Add to View Price |
|||
|
#44075
DAMPER-SET-FORK
44075-1182
|
$2,547.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1795
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK
92026-0045
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1036
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-0001
|
$24.31 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1472
|
$22.92 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,12X22
92150-1398
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X40
92153-0006
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,8X25
92153-0007
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,8X35
92153-1228
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0028
|
$10.23 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0001
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-0085
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
