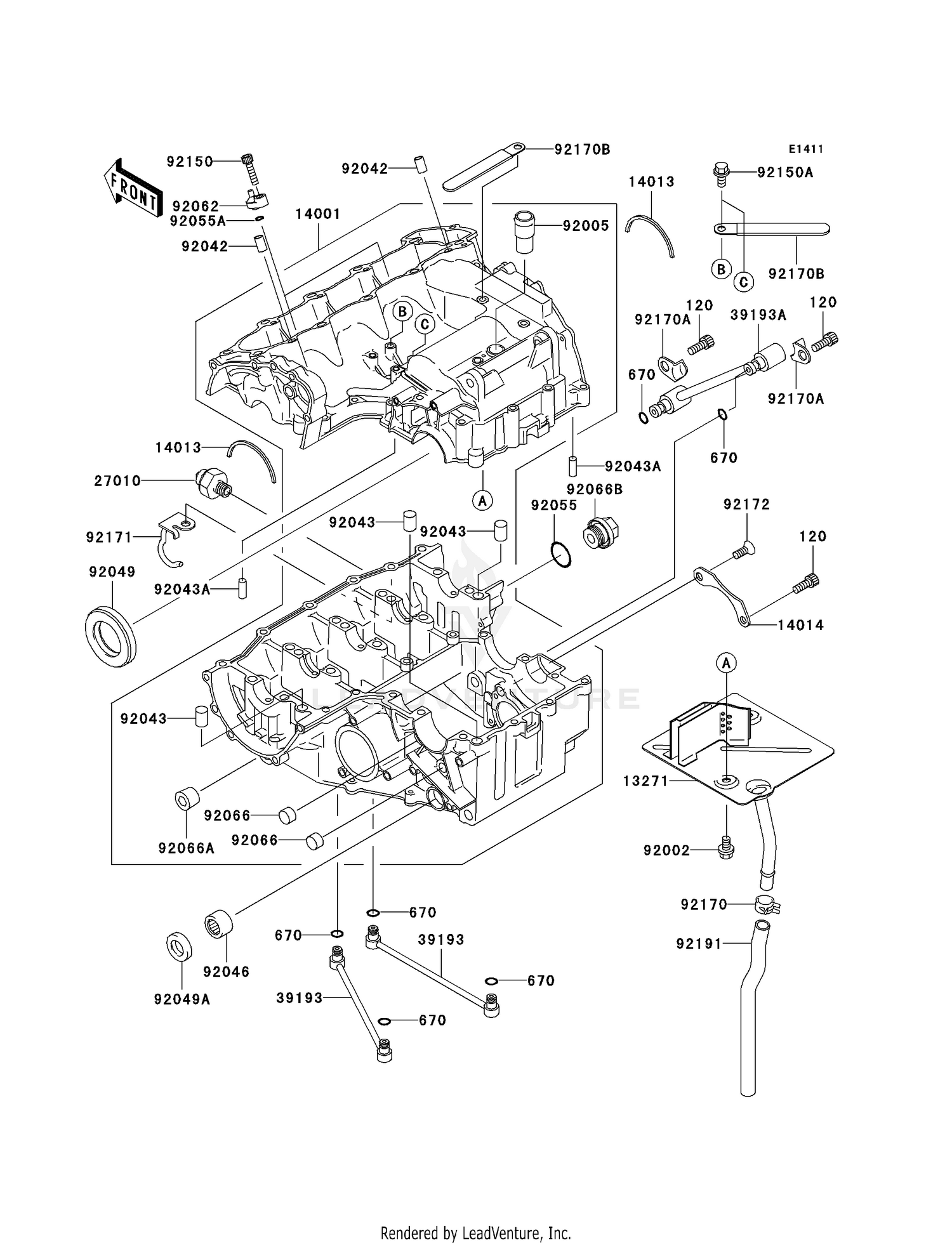

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X16
120P0616
Superseded by 120CA0616
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING
670D1505
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE,BREATHER
13271-0115
|
$77.45 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
14001-1316
Superseded by 14001-0034
|
$1,441.92 | ||
|
Available to order. Add to View Price |
|||
|
#14013
RING-POSITION
14013-004
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#14014
PLATE-POSITION
14014-1123
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,OIL PRESSURE
27010-1313
|
$38.59 | ||
|
Available to order. Add to View Price |
|||
|
#39193
PIPE-OIL,MAIN-INPUT
39193-1019
|
$35.14 | ||
|
Available to order. Add to View Price |
|||
|
#39193A
PIPE-OIL
39193-1020
|
$35.72 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X10
92002-1449
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,BREATHER
92005-1238
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,10X14
92043-1506
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,6X16
92043-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BRG,N,7E-HK1412
92046-037
|
$20.91 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TC32528
92049-1307
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,TC14245
92049-1520
|
$13.38 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,20X2
92055-1146
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1343
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE,OIL JET
92062-1092
|
$10.81 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1110
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,PT3/8X12
92066-1252
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92066B
PLUG
92066-1394
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,5X20
92150-1019
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,FLANGED-SMALL,6X12
92150-1841
Superseded by 92154-1888
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1167
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP,OIL PIPE
92170-1578
Superseded by 92171-0227
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#92170B
CLAMP
92170-1925
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0041
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X16
92172-0090
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,BREATHER
92191-1790
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
