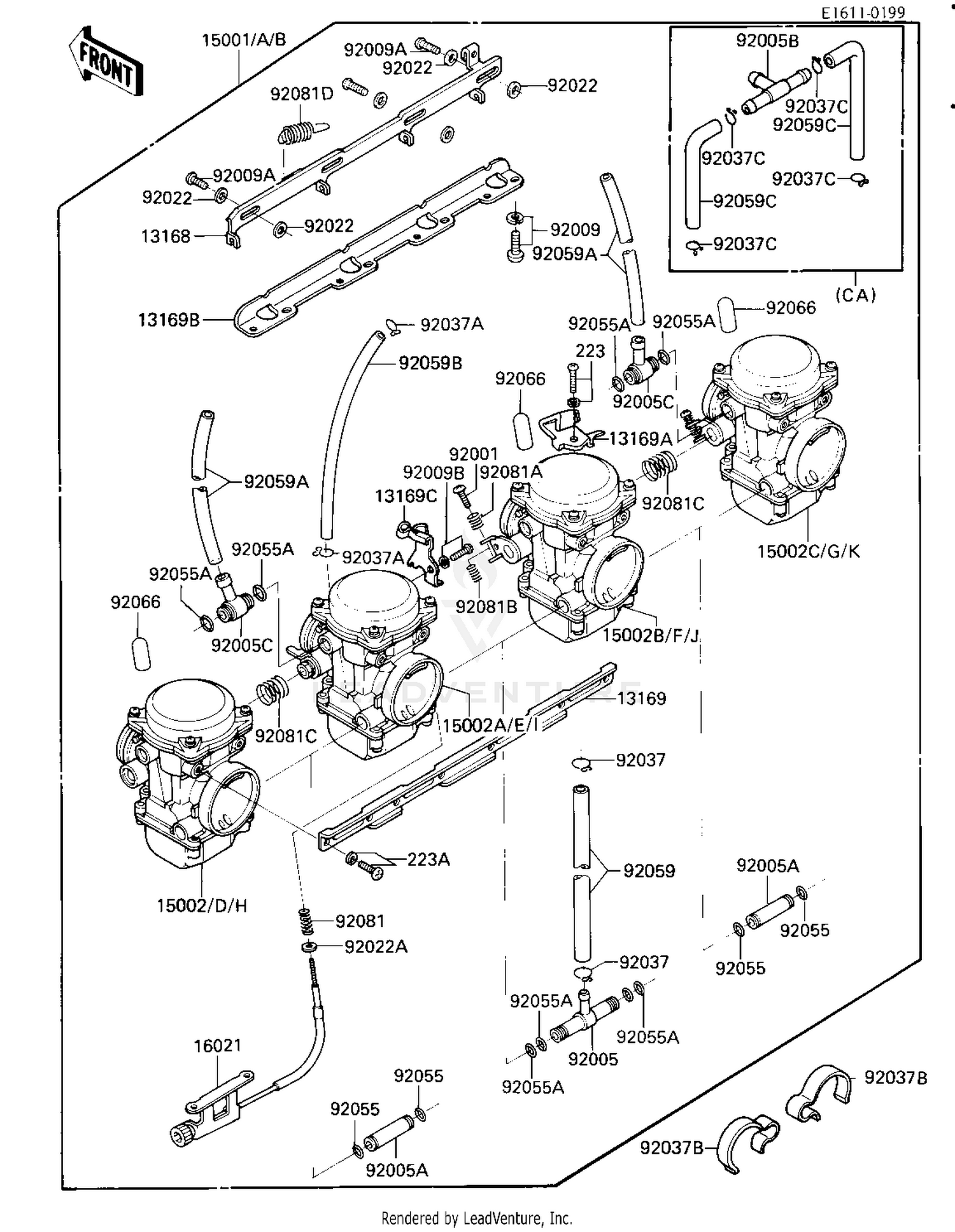

Carburetor Assy Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13168
LEVER,STARTER
13168-1245
|
$118.18 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,CARBURETOR STAY
13169-1869
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
|
#13169A
PLATE
13169-1871
|
$26.38 | ||
|
Available to order. Add to View Price |
|||
|
#13169B
PLATE
13169-1873
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
|
#13169C
PLATE,THROTTLE CABLE
13169-1962
|
$49.43 | ||
|
Available to order. Add to View Price |
|||
|
#15001
CARBURETOR-ASSY
15001-1175
|
$944.70 | ||
|
Available to order. Add to View Price |
|||
|
#15001A
CARBURETOR-ASSY (Canada)
15001-1176
|
|||
|
Unavailable |
|||
|
#15001B
CARBURETOR-ASSY
15001-1177
|
$1,170.46 | ||
|
Available to order. Add to View Price |
|||
|
#15002
CARBURETOR,LH,OUTSIDE
15002-1181
|
$367.99 | ||
|
Available to order. Add to View Price |
|||
|
#15002A
CARBURETOR,LH,INSIDE
15002-1182
|
$459.59 | ||
|
Available to order. Add to View Price |
|||
|
#15002B
CARBURETOR,RH,INSIDE
15002-1183
|
$459.59 | ||
|
Available to order. Add to View Price |
|||
|
#15002C
CARBURETOR,RH,OUTSIDE
15002-1184
|
$459.59 | ||
|
Available to order. Add to View Price |
|||
|
#15002D
CARBURETOR,LH,OUTSIDE (Canada)
15002-1185
|
|||
|
Unavailable |
|||
|
#15002E
CARBURETOR,LH,INSIDE (Canada)
15002-1186
|
|||
|
Unavailable |
|||
|
#15002F
CARBURETOR,RH,INSIDE (Canada)
15002-1187
|
|||
|
Unavailable |
|||
|
#15002G
CARBURETOR,RH,OUTSIDE (Canada)
15002-1188
|
|||
|
Unavailable |
|||
|
#15002H
CARBURETOR,LH,OUTSIDE
15002-1189
|
$367.99 | ||
|
Available to order. Add to View Price |
|||
|
#15002I
CARBURETOR,LH,INSIDE
15002-1190
|
$368.69 | ||
|
Available to order. Add to View Price |
|||
|
#15002J
CARBURETOR,RH,INSIDE
15002-1191
|
$419.40 | ||
|
Available to order. Add to View Price |
|||
|
#15002K
CARBURETOR,RH,OUTSIDE
15002-1192
|
$368.69 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1101
|
$116.11 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,THROTTLE ADJUST
92001-1998
|
$16.34 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,FUEL,T-TYPE
92005-1108
|
$24.88 | ||
|
Available to order. Add to View Price |
|||
|
#92005A
FITTING
92005-1109
Superseded by 92005-1310
|
$32.46 | ||
|
Available to order. Add to View Price |
|||
|
#92005B
FITTING,T-TYPE
92005-1135
|
$23.74 | ||
|
Available to order. Add to View Price |
|||
|
#92005C
FITTING,T-TYPE
92005-1125
|
$24.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW-PAN-WS-CROS,6X1
92009-1129
Superseded by 223AA0616
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1262
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,5X10
92009-1365
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X11X0.8,POLYACETAL
92022-1199
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,PLAIN,STOP SPRING
92022-1480
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FUEL TUBE
92037-1075
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1142
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,HOSE
92037-1552
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP,TUBE
92037-1606
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1004
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1223
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,7.3X12.5X400
92059-1236
Superseded by 92190-1063
|
$36.40 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,6.5X9.5X190
92059-1633
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,5X9X140
92059-1634
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#92059C
TUBE
92059-1635
|
$32.36 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,12X25
92068-006
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,THROTTLE STOP SCREW
92081-1617
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING
92081-1620
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,THROTTLE ADJUST LWR
92081-1621
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING,THROTTLE ADJUST CNT
92081-1622
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081D
SPRING,STARTER LEVER
92081-1762
|
$23.46 | ||
|
Available to order. Add to View Price |
|||
|
#223
UNAVAILABLE IN PRICE BOOK
223C042D
|
|||
|
Unavailable |
|||
|
#223A
SCREW-PAN-WS-CROS,5X10
223C0510
Superseded by 223AB0510
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
