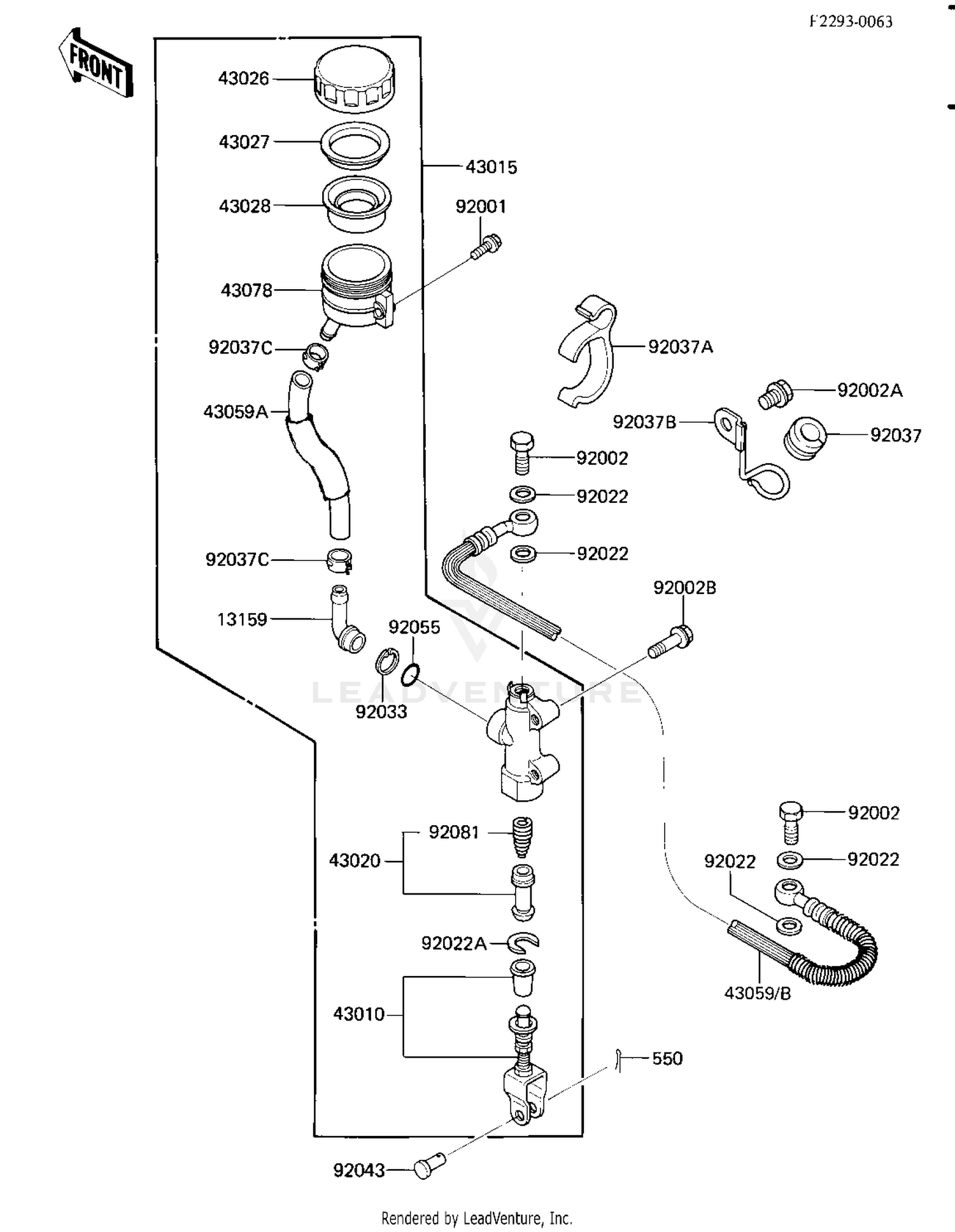

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13159
CONNECTOR,RR MASTER CYLINDER
13159-1052
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-1055
|
$66.41 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-1292
|
$228.47 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1057
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1051
|
$32.90 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1051
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43059
HOSE-BRAKE
43059-1307
|
$127.26 | ||
|
Available to order. Add to View Price |
|||
|
#43059A
HOSE-BRAKE,RR,MASTER
43059-1314
|
$33.89 | ||
|
Available to order. Add to View Price |
|||
|
#43059B
HOSE-BRAKE
43059-1325
|
$112.28 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR,RR,MASTER C
43078-1065
|
$16.15 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,W/P,6X16
92001-1860
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
92002-1311
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,FLANGED,8X30
92002-1539
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
RING-SNAP,20.9X24.6X1.2
92022-1601
Superseded by 92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.5MM
92033-1186
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
GROMMET,HOSE CLAMP
43064-007
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1535
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP
92037-1540
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP,BRAKE HOSE
92037-1547
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X16
92043-1013
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-1251
Superseded by 92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,MASTER CYLINDER
92081-1737
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
