1986 Kawasaki ZL900A2 ELIMINATOR Engine Covers/guards OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

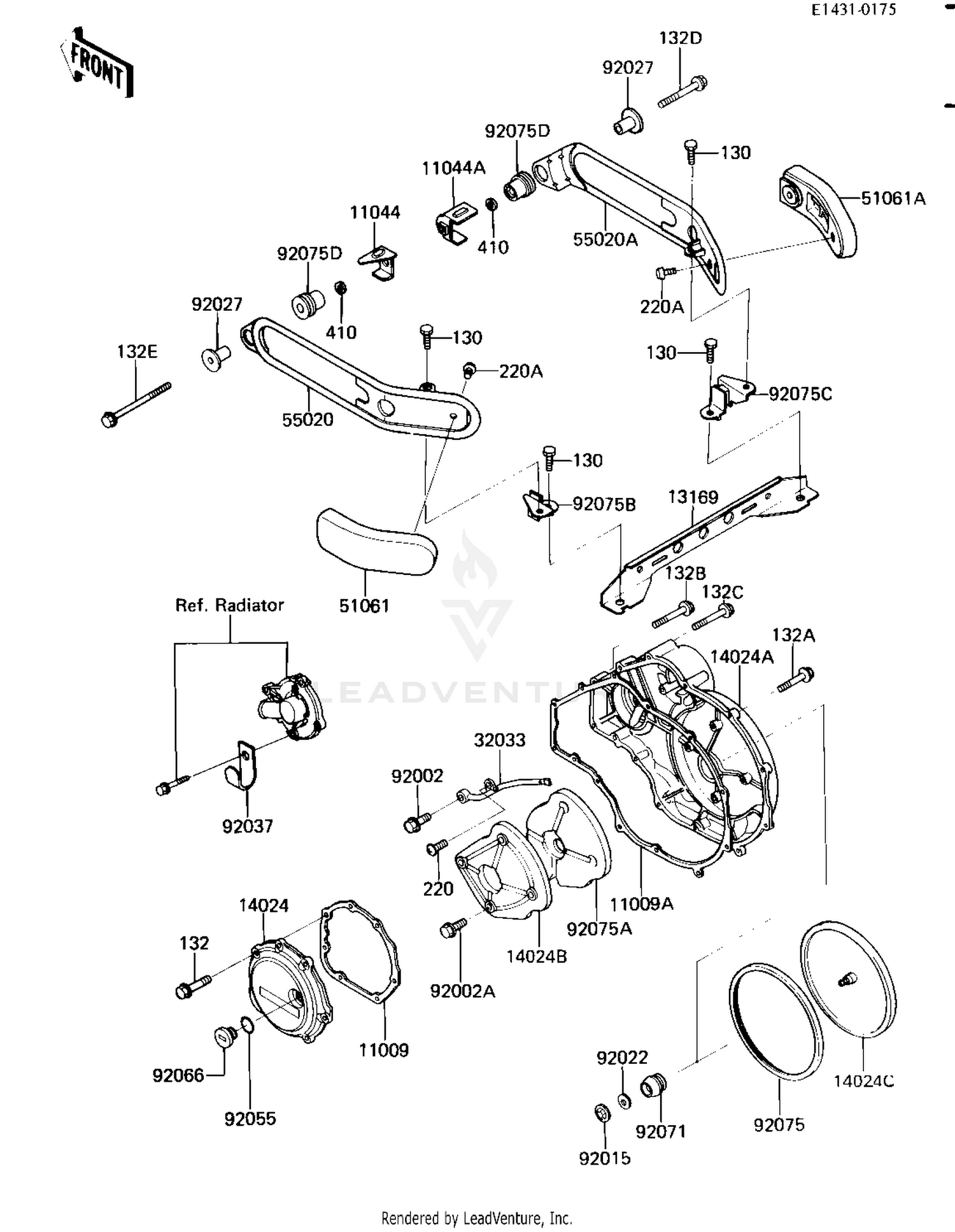

Engine Covers/guards Diagram

Item MSRP Qty
#11009 GASKET,PULSING COVER
11009-1863
Superseded by 11061-1155
 $9.07
Available to order.
Add to View Price
#11009A GASKET,CLUTCH COVER
11009-1860
Superseded by 11061-1154
 $13.21
Available to order.
Add to View Price
#11044 BRACKET,LH
11044-1291
 $8.98
Available to order.
Add to View Price
#11044A BRACKET,RH
11044-1292
 $9.47
Available to order.
Add to View Price
#13169 PLATE,GUARD
13169-1956
 $24.33
Available to order.
Add to View Price
#14024 COVER,LH
14024-1066
 $128.52
Available to order.
Add to View Price
#14024A COVER,CLUTCH
14024-1067
 $330.04
Available to order.
Add to View Price
#14024B COVER,SOUND ARRESTER
14025-1740
 $14.75
Available to order.
Add to View Price
#14024C COVER,CLUTCH COVER
14025-1814
 $49.97
Available to order.
Add to View Price
#32033 PIPE,CLUTCH COVER
32033-1204
 $29.44
Available to order.
Add to View Price
#51061 PAD-KNEE,LH
51061-1051
 $41.06
Available to order.
Add to View Price
#51061A PAD-KNEE,RH
51061-1052
 $41.06
Available to order.
Add to View Price
#55020 GUARD,LH
55020-1201
 $76.76
Available to order.
Add to View Price
#55020A GUARD,RH
55020-1202
 $76.76
Available to order.
Add to View Price
#92002 BOLT,BANJO,8X20
92001-1855
 $8.36
Available to order.
Add to View Price
#92002A BOLT,6X10
92002-1449
 $3.98
Available to order.
Add to View Price
#92015 NUT,LOCK,5MM
92018-004
 $4.25
Available to order.
Add to View Price
#92022 WASHER,5.5X20X1.2
92022-104
Superseded by 92022-1405
 $4.17
Available to order.
Add to View Price
#92027 COLLAR
92027-1956
 $8.81
Available to order.
Add to View Price
#92037 CLAMP,L=60
92037-1069
Superseded by 92171-0652
 $2.54
Available to order.
Add to View Price
#92055 RING-O,20X2
92055-1146
 $8.28
Available to order.
Add to View Price
#92066 PLUG,COVER
92066-1218
Superseded by 92066-1397
 $14.23
Available to order.
Add to View Price
#92071 GROMMET,CLUTCH COVER
92071-1108
 $5.90
Available to order.
Add to View Price
#92075 DAMPER,CLUTCH COVER
92075-1594
 $27.53
Available to order.
Add to View Price
#92075A DAMPER,SOUND ARRESTER
92075-1708
 $130.22
Available to order.
Add to View Price
#92075B DAMPER
92075-1756
 $33.64
Available to order.
Add to View Price
#92075C DAMPER
92075-1757
 $33.64
Available to order.
Add to View Price
#92075D DAMPER
92075-1779
 $6.67
Available to order.
Add to View Price
#130 BOLT-FLANGED,6X10
130J0610
Superseded by 130BB0610
 $2.42
Available to order.
Add to View Price
#132 BOLT-FLANGED-SMALL,6X20
132J0620
Superseded by 132BB0620
 $3.87
Available to order.
Add to View Price
#132A BOLT-FLANGED-SMALL,6X25
132J0625
Superseded by 132BB0625
 $2.72
Available to order.
Add to View Price
#132B BOLT-FLANGED-SMALL,6X40
132J0640
 $3.25
Available to order.
Add to View Price
#132C BOLT-FLANGED-SMALL
132J0655
Superseded by 132BB0655
 $4.61
Available to order.
Add to View Price
#132D BOLT-FLANGED-SMALL,8X60
132J0860
Superseded by 132BB0860
 $4.61
Available to order.
Add to View Price
#132E BOLT-FLANGED-SMALL
132J0890
Superseded by 132BB0890
 $7.54
Available to order.
Add to View Price
#220 UNAVAILABLE IN PRICE BOOK
220B0910
Unavailable
#220A SCREW-PAN-CROSS
220C0608
Superseded by 220AB0608
 $1.76
Available to order.
Add to View Price
#410 WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
 $0.93
Available to order.
Add to View Price
