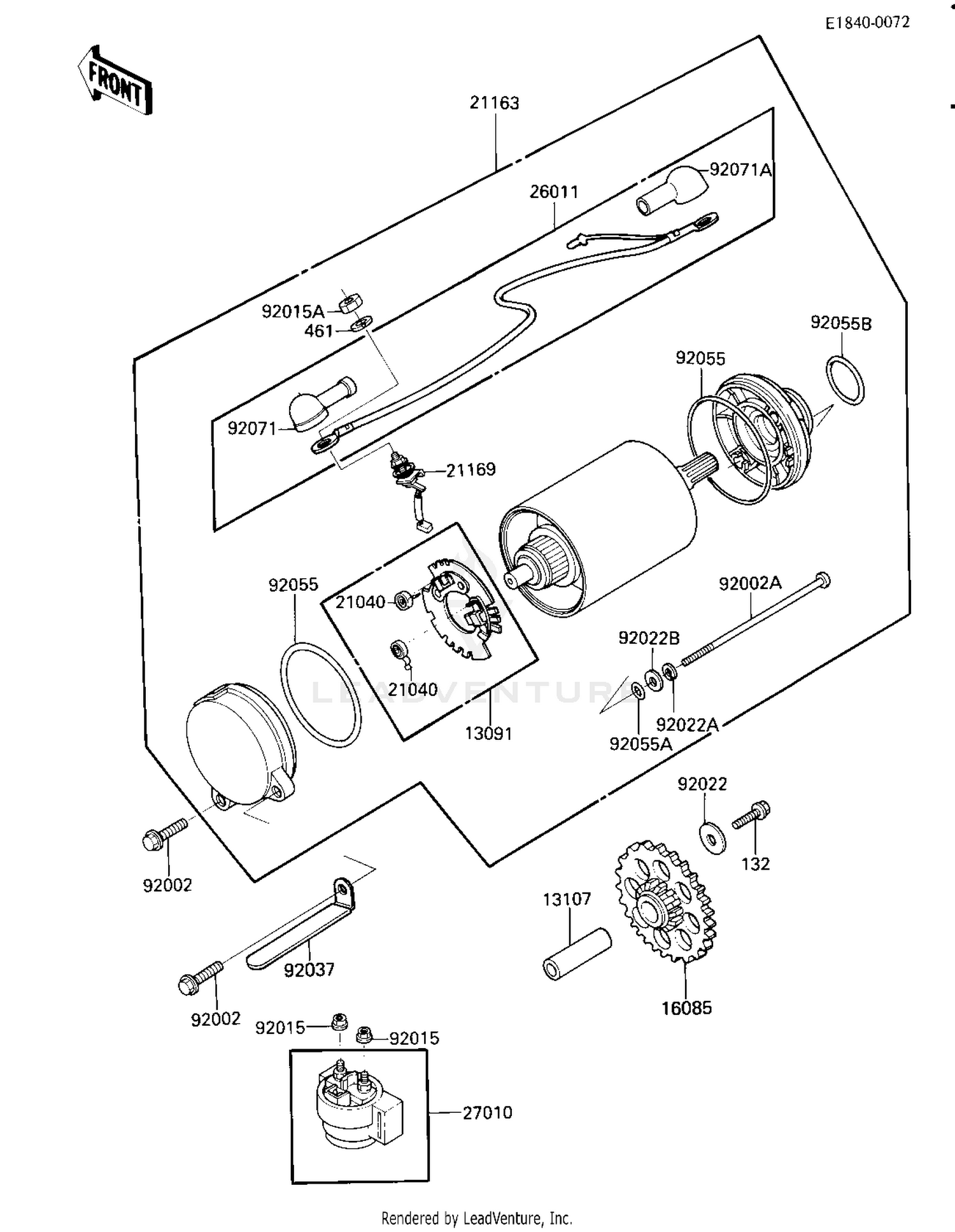

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,CARBON BRUSH
13091-1325
|
$75.38 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT,IDLE GEAR
13107-1106
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#16085
GEAR,IDLE
16085-1119
|
$115.76 | ||
|
Available to order. Add to View Price |
|||
|
#21040
SPRING-BRUSH
21040-1051
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-1081
|
$513.01 | ||
|
Available to order. Add to View Price |
|||
|
#21169
TERMINAL,STARTER
21169-1051
|
$68.44 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,STARTER MOT
26011-1332
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,STARTER
27010-1314
|
$44.26 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
92001-1947
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
92002-1377
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,6MM
92015-1457
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6X19.5X2
92022-1517
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER-SPRING
92022-1622
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER
92022-1623
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1679
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,62MM
92055-1260
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,4.5MM
92055-1261
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,24.4MM
92055-1262
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,STARTER TERMINAL
92071-1120
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92071A
GROMMET,TERMINAL
92071-1134
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132G0612
Superseded by 132BA0612
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
