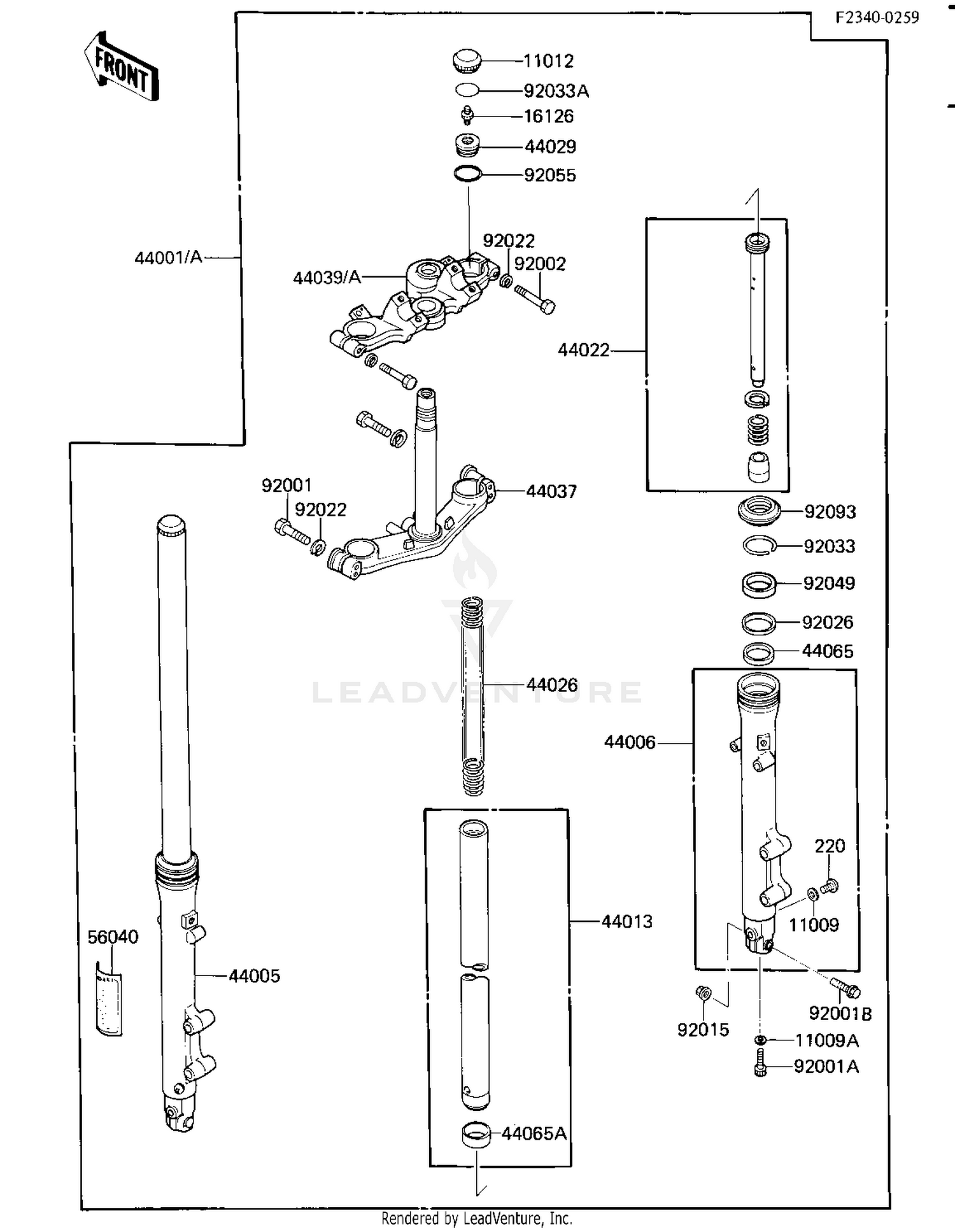

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK DRAIN PLG
44045-046
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,FORK TOP
11012-1473
Superseded by 11012-1696
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,AIR
16126-1105
Superseded by 16126-1043
|
$37.55 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1584
|
$1,545.17 | ||
|
Available to order. Add to View Price |
|||
|
#44001A
FORK-FRONT
44001-1640
|
$1,982.08 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1233
|
$434.05 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1233
|
$434.05 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1232
|
$414.87 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-COMP-FORK
44022-1182
Superseded by 44023-1055
|
$78.78 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK,K=0
44026-1303
|
$55.45 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1120
|
$47.35 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1183
Superseded by 44037-1210
|
$320.80 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1124
Superseded by 44039-1129
|
$263.28 | ||
|
Available to order. Add to View Price |
|||
|
#44039A
HOLDER-FORK UPPER
44039-1129
|
$263.28 | ||
|
Unavailable |
|||
|
#44065
BUSHING-FRONT FORK
44065-1070
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK,IN
44065-1071
|
$24.08 | ||
|
Available to order. Add to View Price |
|||
|
#56040
LABEL-WARNING,AIR SUS
56040-1054
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,HEX HEAD,8X40
92001-1063
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FORK CYLINDER
92001-1464
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,8X50
92001-1486
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT
92002-1603
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1055
Superseded by 92015-1398
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,SPRING,8MM
92022-1703
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK
92026-1254
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,FORK
92033-1200
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
92033-1201
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK
92049-1230
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FORK SPRING SE
92055-1309
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK
92093-1197
|
$23.48 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN CROS,4X6
220B0406
Superseded by 220AA0406
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
