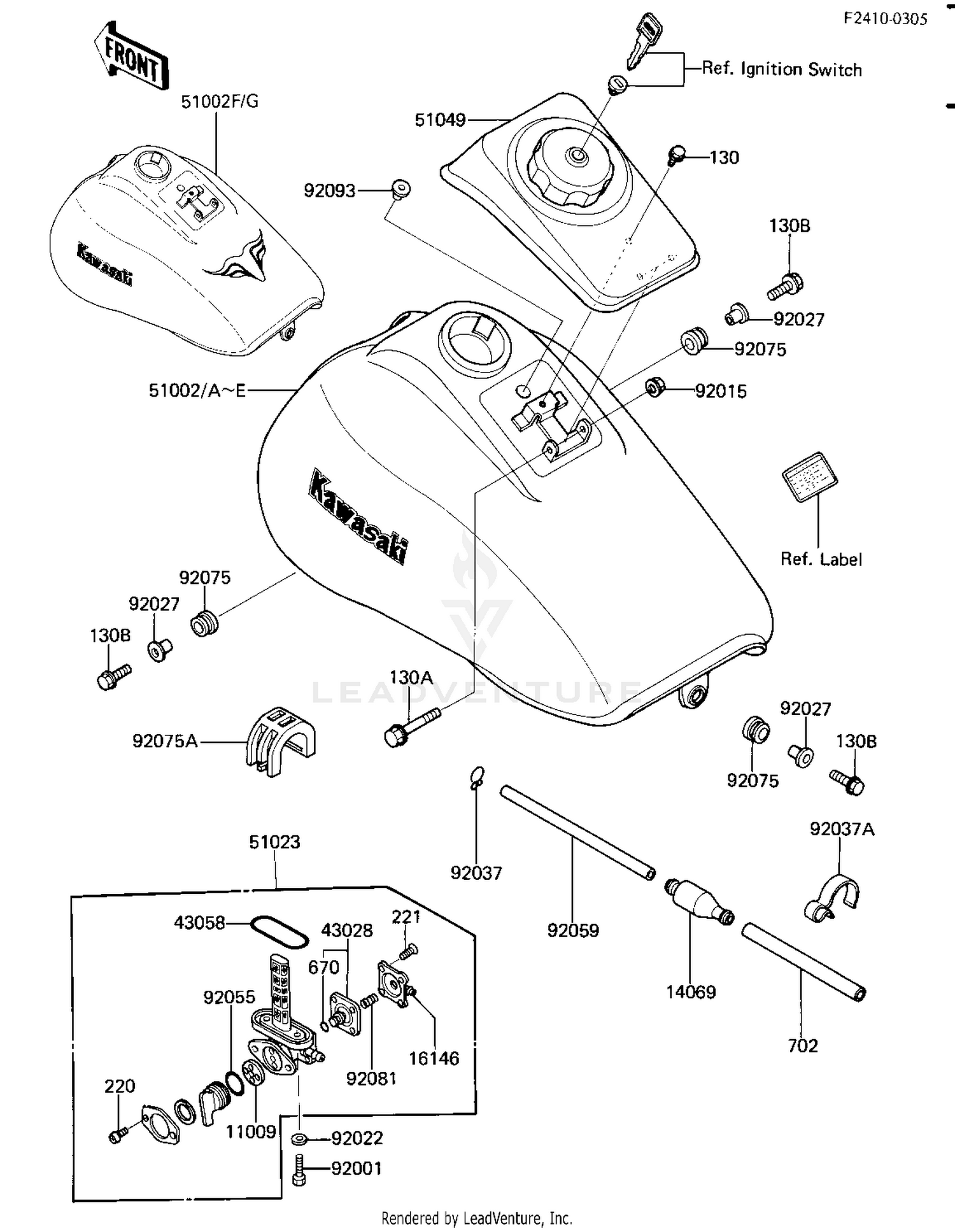

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,TAP VALVE
11009-1530
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#14069
BREATHER,FUEL TANK
14069-1052
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#16146
COVER ASSY,TAP
16146-1005
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM ASSY,TAP
43028-1015
|
$21.15 | ||
|
Available to order. Add to View Price |
|||
|
#43058
0 RING
51039-010
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#51002
TANK-COMP-FUEL,EBONY
51002-5080-H8
|
$1,325.78 | ||
|
Available to order. Add to View Price |
|||
|
#51002A
TANK-COMP-FUEL,L.RED (Canada)
51002-5081-7V
|
|||
|
Unavailable |
|||
|
#51002B
TANK-COMP-FUEL,EBONY
51002-5088-H8
Superseded by 51002-5080-H8
|
$1,325.78 | ||
|
Unavailable |
|||
|
#51002C
TANK-COMP-FUEL,EBONY
51002-5089-H8
|
$454.70 | ||
|
Available to order. Add to View Price |
|||
|
#51002D
TANK-COMP-FUEL,L.RED
51002-5090-7V
|
$454.27 | ||
|
Available to order. Add to View Price |
|||
|
#51002E
TANK-COMP-FUEL
51002-5091-7V
|
$437.28 | ||
|
Available to order. Add to View Price |
|||
|
#51002F
TANK-COMP-FUEL,EBONY
51002-5180-H8
|
$454.70 | ||
|
Available to order. Add to View Price |
|||
|
#51002G
TANK-COMP-FUEL,EBONY
51002-5181-H8
|
$454.70 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1116
Superseded by 51023-1386
|
$113.10 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL,BLACK
51049-1065-10
|
$691.35 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1259
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=14.1
92027-1920
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HOSE
92037-1552
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,TAP LEVER
92055-1027
|
$5.06 | ||
|
Unavailable |
|||
|
#92059
TUBE
92059-1625
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1057
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,FUEL TANK
92075-1741
|
$17.73 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,TAP
92081-1171
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X10
130B0510
Superseded by 130CA0510
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED
130B0550
Superseded by 130AA0550
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,3X8
220B0308
Superseded by 220AA0308
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,4X14
221B0414
Superseded by 221AA0414
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,4MM
670B1504
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,7X10X800
702A07280
Superseded by 702A07800
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
