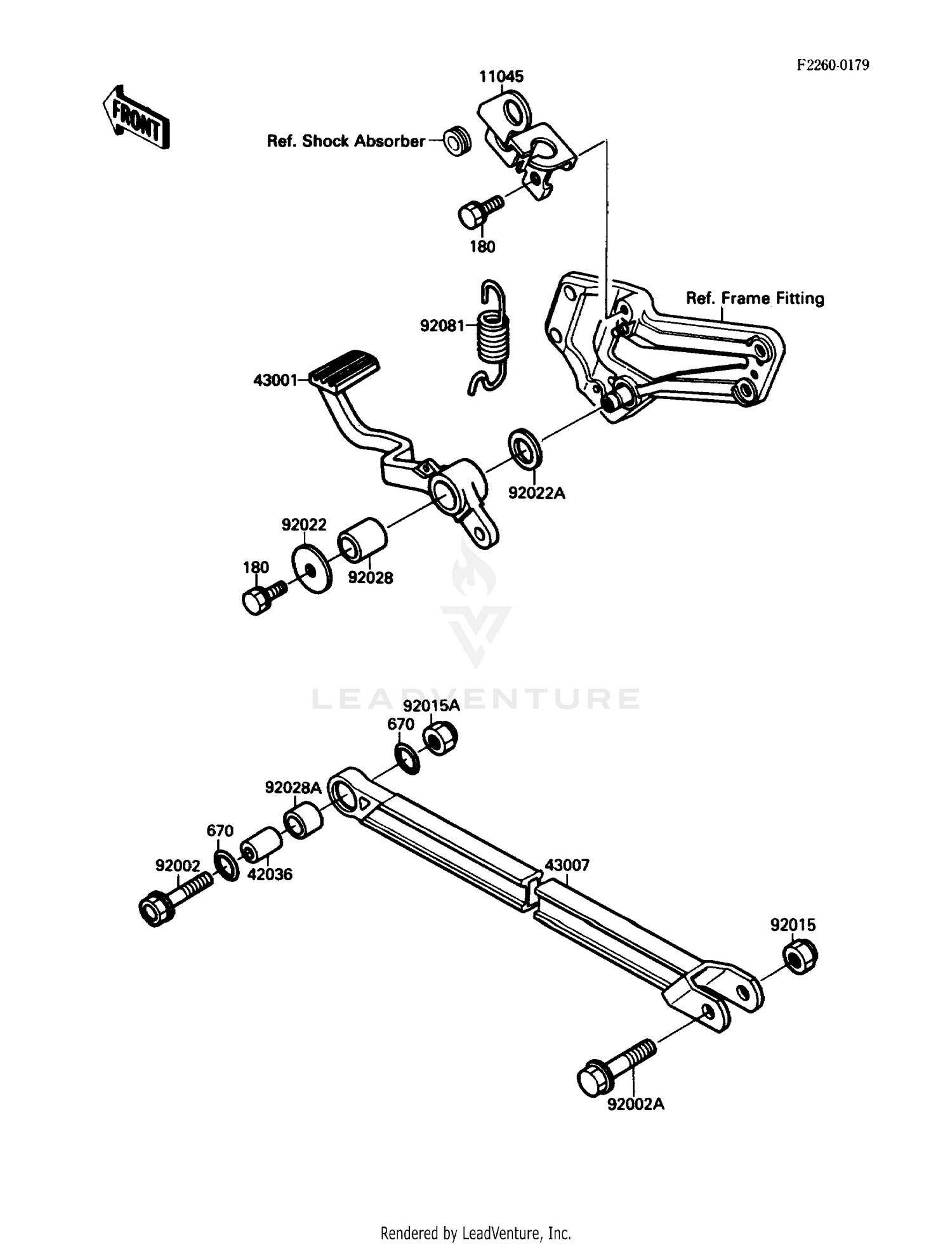

Brake Pedal/torque Link Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#180
BOLT-UPSET-WS,6X14
180H0614
Superseded by 180BA0614
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,16MM
670B2016
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,RR BRAKE LAMP SWITCH
11045-1290
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,8.1X16X20
42036-1200
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#43001
LEVER-BRAKE,PEDAL
43001-1214
|
$136.22 | ||
|
Available to order. Add to View Price |
|||
|
#43007
ROD-TORQUE
43007-1128
|
$104.52 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,8X35
92002-1198
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,8X40
92002-1838
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CAP,LOCK,8MM
92015-1133
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,U,8MM,BLACK
92015-1205
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,7X28X1.6
92022-1282
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,15.3X24X1
92022-326
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,BRAKE PEDAL
92028-1282
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING
92028-1468
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE PEDAL
92081-1833
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
