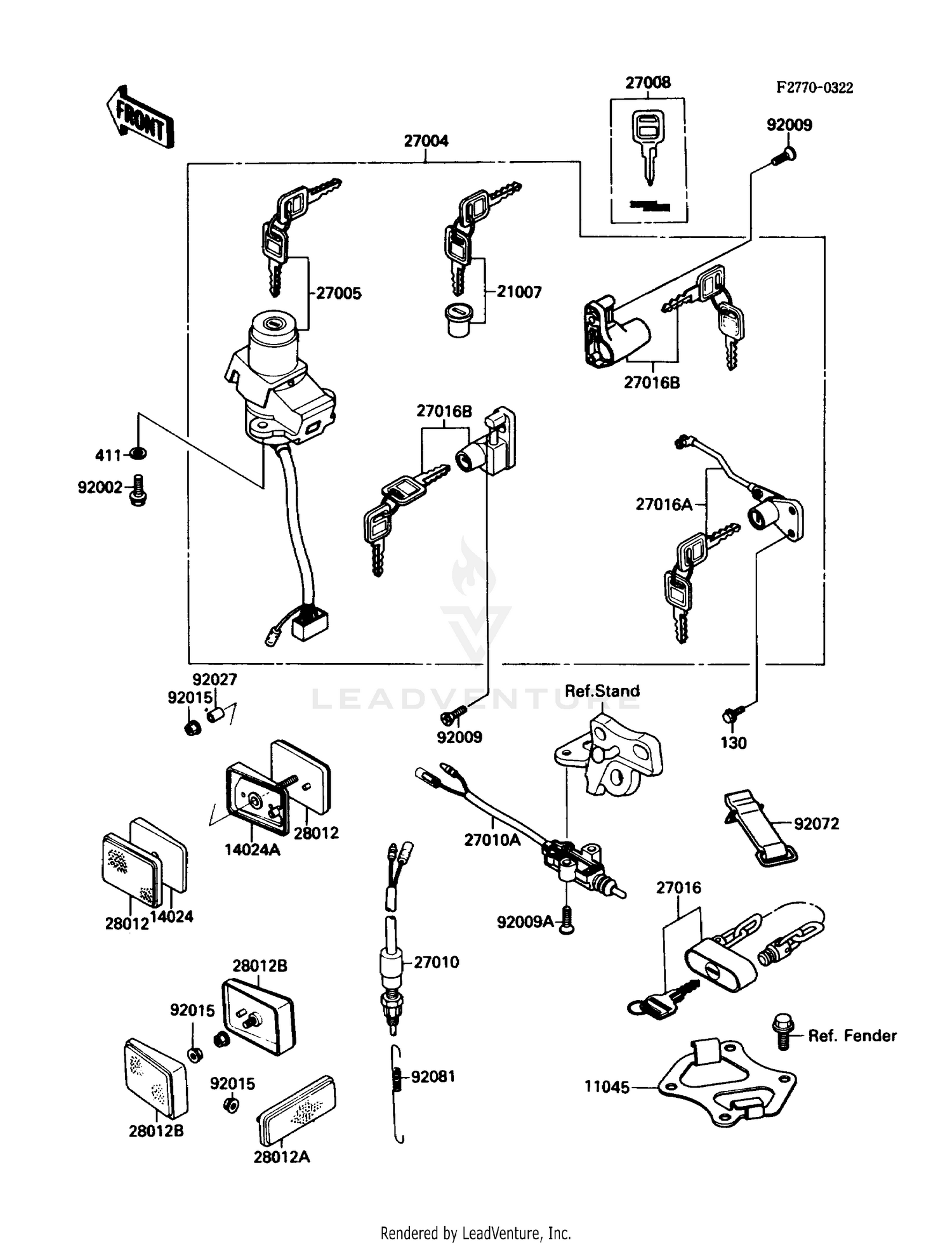

Ignition Switch/locks/reflectors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,5X10
130C0510
Superseded by 130BB0510
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN-SMALL
411E0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,CHAIN LOCK
11045-1678
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,REFLECTOR,FR
14025-1886
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,REFLECTOR,FR
14025-1887
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#21007
ROTOR,LOCK,TANK CAP
21007-5019
Superseded by 21007-5037
|
$88.79 | ||
|
Available to order. Add to View Price |
|||
|
#27004
SWITCH-ASSY
27004-5294
Superseded by 27004-5349
|
$420.02 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-5067
Superseded by 27005-5073
|
$158.01 | ||
|
Unavailable |
|||
|
#27008
KEY-LOCK,BLANK
27008-1103
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,REAR BRAKE
27010-1093
Superseded by 27010-1479
|
$28.89 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,SIDE STAND
27010-1223
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,WHEEL
27016-1051
|
$125.78 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,SEAT
27016-5118
|
$91.77 | ||
|
Available to order. Add to View Price |
|||
|
#27016B
LOCK-ASSY,HELMET
27016-5121
|
$45.53 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX,FR
28012-1052
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-1057
Superseded by 28012-1077
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#28012B
REFLECTOR-REFLEX,REAR SIDE
28012-1061
|
$21.93 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,TORX,6X16
92002-1333
Superseded by 92153-0967
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X12
92009-1401
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X20
92009-1459
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1259
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,5.6X8X14.5
92027-1789
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,TOOL
92072-1176
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE LAMP SWITCH
27011-017
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
