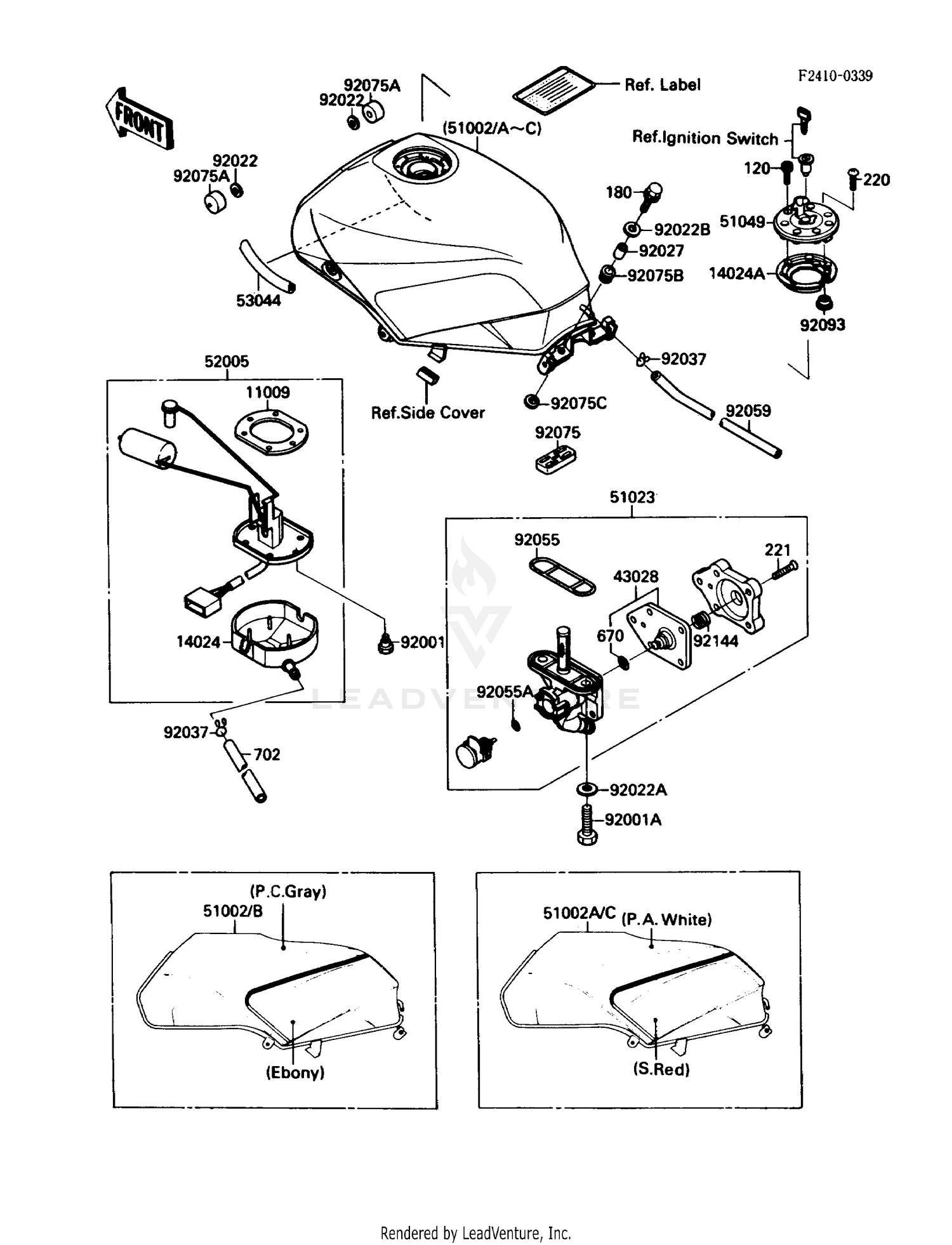

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#180
BOLT-UPSET-WS
180G0625
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X8
220C0508
Superseded by 220AB0508
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,4X14
221B0414
Superseded by 221AA0414
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,4MM
670B1504
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,7X10X800
702A07480
Superseded by 702A07800
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,FUEL GAUGE
11009-1037
Superseded by 11009-1826
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,FUEL GAUGE
14024-1434
|
$34.04 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,TANK CAP
14025-1913
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,TAP
43028-1068
|
$44.36 | ||
|
Available to order. Add to View Price |
|||
|
#51002
TANK-COMP-FUEL,EBONY/P.C.GRAY
51002-5257-T4
|
$786.70 | ||
|
Available to order. Add to View Price |
|||
|
#51002A
TANK-COMP-FUEL,P.A.WHITE/S.RED
51002-5258-W2
|
$1,325.76 | ||
|
Available to order. Add to View Price |
|||
|
#51002B
TANK-COMP-FUEL,EBONY/P.C.GRAY
51002-5276-T4
|
$1,325.78 | ||
|
Available to order. Add to View Price |
|||
|
#51002C
TANK-COMP-FUEL,P.A.WHITE/S.RED
51002-5277-W2
|
$786.70 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1133
Superseded by 51023-1303
|
$113.10 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1079
Superseded by 51049-0022
|
$127.71 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,FUEL
52005-1079
|
$156.30 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,L=120
53044-1171
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FUEL GAUGE
92001-1069
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.5X26X2.3
92022-044
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,6.5X22X1.6
92022-237
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X14.5
92027-156
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FUEL TAP PACKING
92055-1112
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1377
Superseded by 92055-3723
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,6X10X960
92059-1830
Superseded by 92059-3007
|
$19.00 | ||
|
Unavailable |
|||
|
#92075
DAMPER,FUEL TANK,RR
92075-1114
|
$16.12 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,FUEL TANK
92075-125
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,MALE
92075-174
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER,FEMALE
92075-175
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,TAP DIAPHRAGM
92144-1119
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
