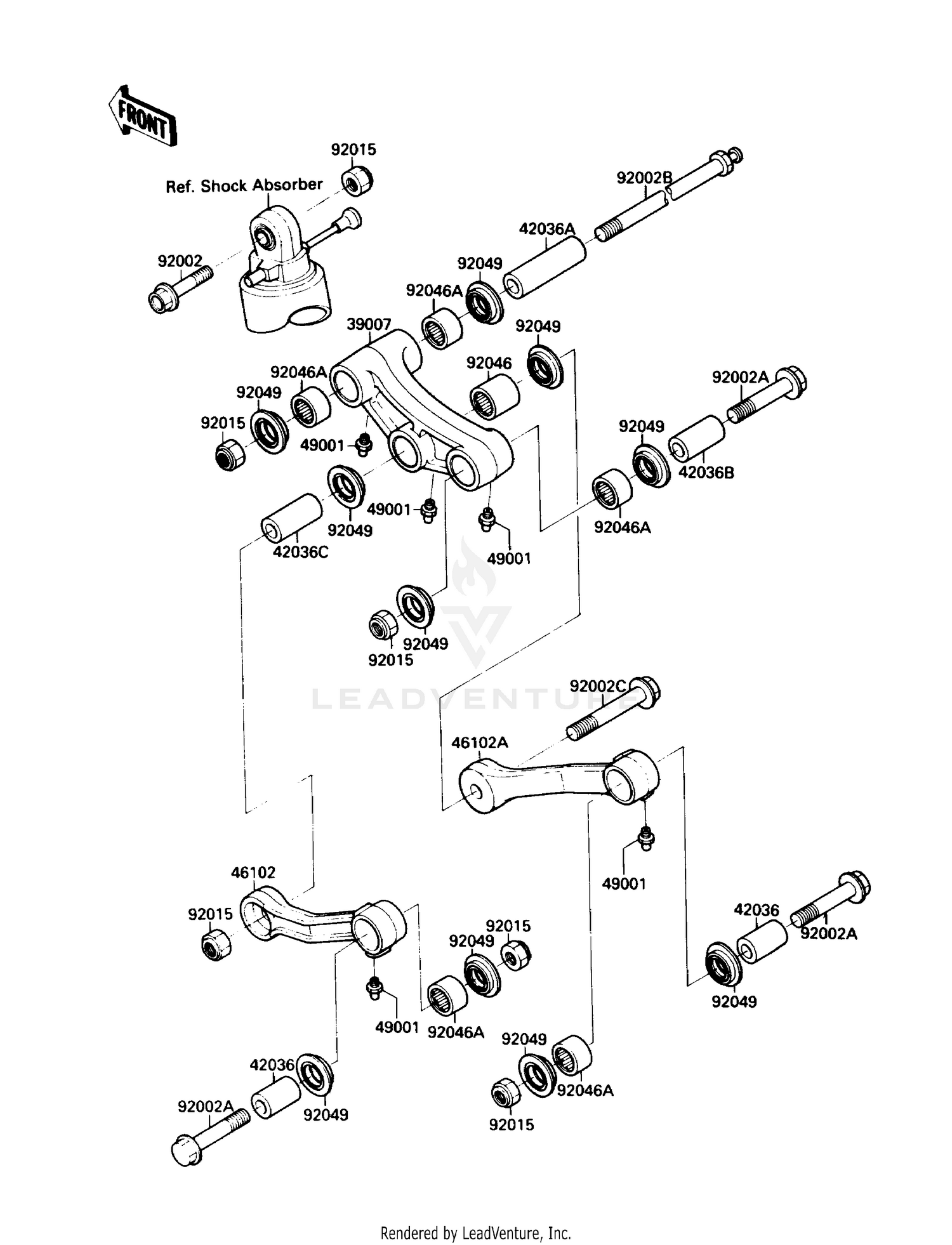

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#39007
ARM-SUSP,UNI TRAK
39007-1107
|
$214.52 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,12.1X20X32
42036-1077
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE,ARM,CNT
42036-1079
|
$27.53 | ||
|
Available to order. Add to View Price |
|||
|
#42036B
SLEEVE,12.1X20X40
42036-1108
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#42036C
SLEEVE,12.1X20X44
42036-1129
|
$18.12 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,SUSPENSION.LH
46102-1183
|
$90.72 | ||
|
Available to order. Add to View Price |
|||
|
#46102A
ROD,SUSPENSION,RH
46102-1184
|
$90.72 | ||
|
Available to order. Add to View Price |
|||
|
#49001
NIPPLE-GREASE
49001-1051
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,12X48
92002-1052
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,12X60
92002-1464
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,SUSPENSION ARM,12MM
92002-1784
|
$16.30 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT,SUSPENSION ARM,12MM
92002-1785
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,12MM,BLACK
92015-1190
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BM202726
92046-1110
|
$22.61 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,BM202715
92046-1112
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,ARM
92049-1109
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
