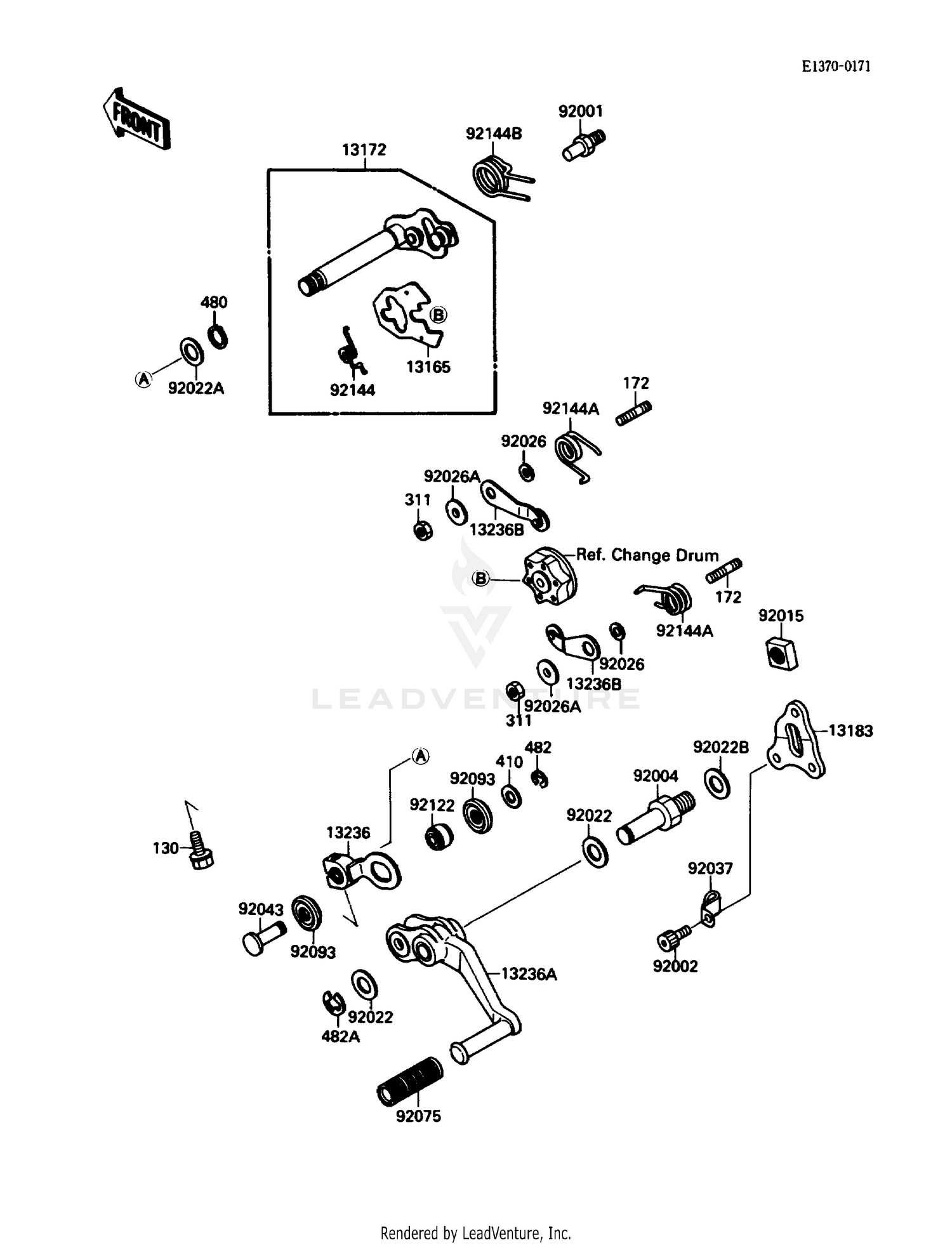

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X20
130S0620
Superseded by 130CB0620
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#172
BOLT-STUD,6X12
172G0612
Superseded by 172BA0612
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311G0600
Superseded by 311BA0600
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410D0800
Superseded by 410S0800
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,13MM
480J1300
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP-TYPE-E,6MM
482K6000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#482A
CIRCLIP-TYPE-E
482L9000
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#13165
PAWL
13165-1120
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#13172
SHAFT-ASSY-CHANGE
13172-1064
|
$121.11 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE
13183-1026
|
$18.30 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,CHANGE LINK
13236-1147
|
$33.38 | ||
|
Available to order. Add to View Price |
|||
|
#13236A
LEVER-COMP,CHANGE PEDAL
13236-1148
|
$111.44 | ||
|
Available to order. Add to View Price |
|||
|
#13236B
LEVER-COMP,POSITION
13236-1149
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,RETURN SPRING
92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SOCKET,6X14
92002-1192
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,CHANGE PEDAL,PIVOT
92004-1163
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,12MM
92015-1605
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,12.3X22X1.6
92022-1065
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,13.3X20X1
92022-1496
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,12.3X25X3.2
92022-1862
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,6.3X12X1.0
92026-094
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER
92026-1217
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,WIRING HARNESS
92037-1877
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-1324
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-1220
|
$8.41 | ||
|
Available to order. Add to View Price |
|||
|
#92122
ROLLER
92122-1140
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1029
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,NEUTRAL POSITION
92144-1030
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#92144B
SPRING,CHANGE PEDAL RETURN
92144-1074
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
