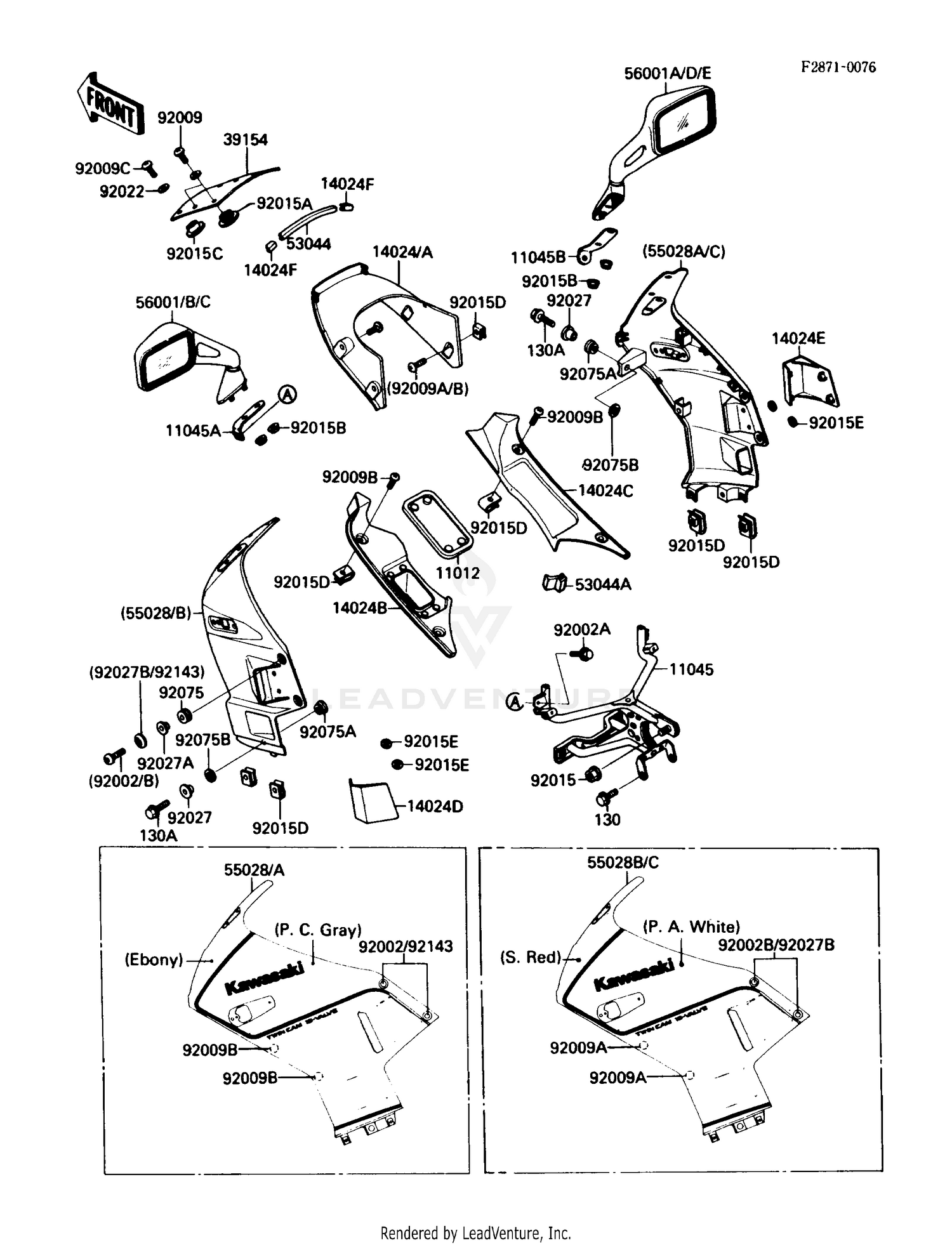

Cowling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,INNER COWLING COVER
11012-1570
|
$20.86 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,COWLING STAY
11045-1270
|
$294.74 | ||
|
Available to order. Add to View Price |
|||
|
#11045A
BRACKET,MIRROR,LH
11045-1412
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#11045B
BRACKET,MIRROR,RH
11045-1413
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,HEAD LAMP,S.RED
14024-1337-H1
Superseded by 14024-1677-H1
|
$249.81 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,HEAD LAMP,EBONY
14024-1337-H8
Superseded by 14024-1677-H8
|
$231.70 | ||
|
Available to order. Add to View Price |
|||
|
#14024B
COVER,INNER COWLING,LH
14024-1380
|
$34.94 | ||
|
Available to order. Add to View Price |
|||
|
#14024C
COVER,INNER COWLING,RH
14024-1381
|
$27.81 | ||
|
Available to order. Add to View Price |
|||
|
#14024D
COVER,HEAT GUARD,LH
14024-1417
|
$15.95 | ||
|
Available to order. Add to View Price |
|||
|
#14024E
COVER,HEAT GUARD,RH
14024-1418
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#14024F
COVER,TRIM END
14025-1756
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#39154
WINDSHIELD
39154-1073
Superseded by 39154-1093
|
$343.98 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,WINDSHIELD,L=345
53044-1177
|
$11.71 | ||
|
Available to order. Add to View Price |
|||
|
#53044A
TRIM,INNER COWLING COVER
53044-1195
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#55028
COWLING,UPP,LH,EBONY/P.C.GRAY
55028-5276-T4
|
$881.70 | ||
|
Available to order. Add to View Price |
|||
|
#55028A
COWLING,UPP,RH,EBONY/P.C.GRAY
55028-5277-T4
|
$764.17 | ||
|
Available to order. Add to View Price |
|||
|
#55028B
COWLING,UPP,LH,P.A.WHITE/S.RED
55028-5278-W2
|
$764.17 | ||
|
Available to order. Add to View Price |
|||
|
#55028C
COWLING,UPP,RH,P.A.WHITE/S.RED
55028-5279-W2
|
$764.17 | ||
|
Available to order. Add to View Price |
|||
|
#56001
MIRROR-ASSY,LH
56001-1287
|
|||
|
Unavailable |
|||
|
#56001A
MIRROR-ASSY,RH
56001-1288
|
|||
|
Unavailable |
|||
|
#56001B
MIRROR-ASSY,LH,EBONY
56001-1325
Superseded by 56001-1325-6C
|
$129.78 | ||
|
Available to order. Add to View Price |
|||
|
#56001C
MIRROR-ASSY,LH,EBONY
56001-1325
Superseded by 56001-1325-6C
|
$129.78 | ||
|
Unavailable |
|||
|
#130
BOLT-FLANGED,6X10
130J0610
Superseded by 130BB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#56001D
MIRROR-ASSY,RH,EBONY
56001-1326
Superseded by 56001-1326-6C
|
$129.78 | ||
|
Available to order. Add to View Price |
|||
|
#56001E
MIRROR-ASSY,RH,EBONY
56001-1326
Superseded by 56001-1326-6C
|
$129.78 | ||
|
Unavailable |
|||
|
#92002
BOLT,SOCKET,6X18
92002-1514
Superseded by 92150-1553
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,6X12
92002-1884
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,SOCKET,6X18,WHITE
92002-1889
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1335
Superseded by 92009-1651
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X14,WHITE
92009-1366
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW
92009-1383
Superseded by 92009-1653
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92009C
SCREW
92009-1453
Superseded by 92009-1656
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1183
Superseded by 92210-0004
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,5MM,COWLING
92015-1343
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,WELL,5MM
92015-1640
Superseded by 92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92015D
NUT,5MM
92015-1710
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92015E
NUT,LOCK,5MM
92018-004
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=13.1,BLACK
92027-1450
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,L=9.1,WHITE
92027-1795
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,L=6.5,WHITE
92027-1886
|
$13.19 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1634
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,MALE
92075-174
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,FEMALE
92075-175
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,L=6.5,BLACK
92143-1086
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
