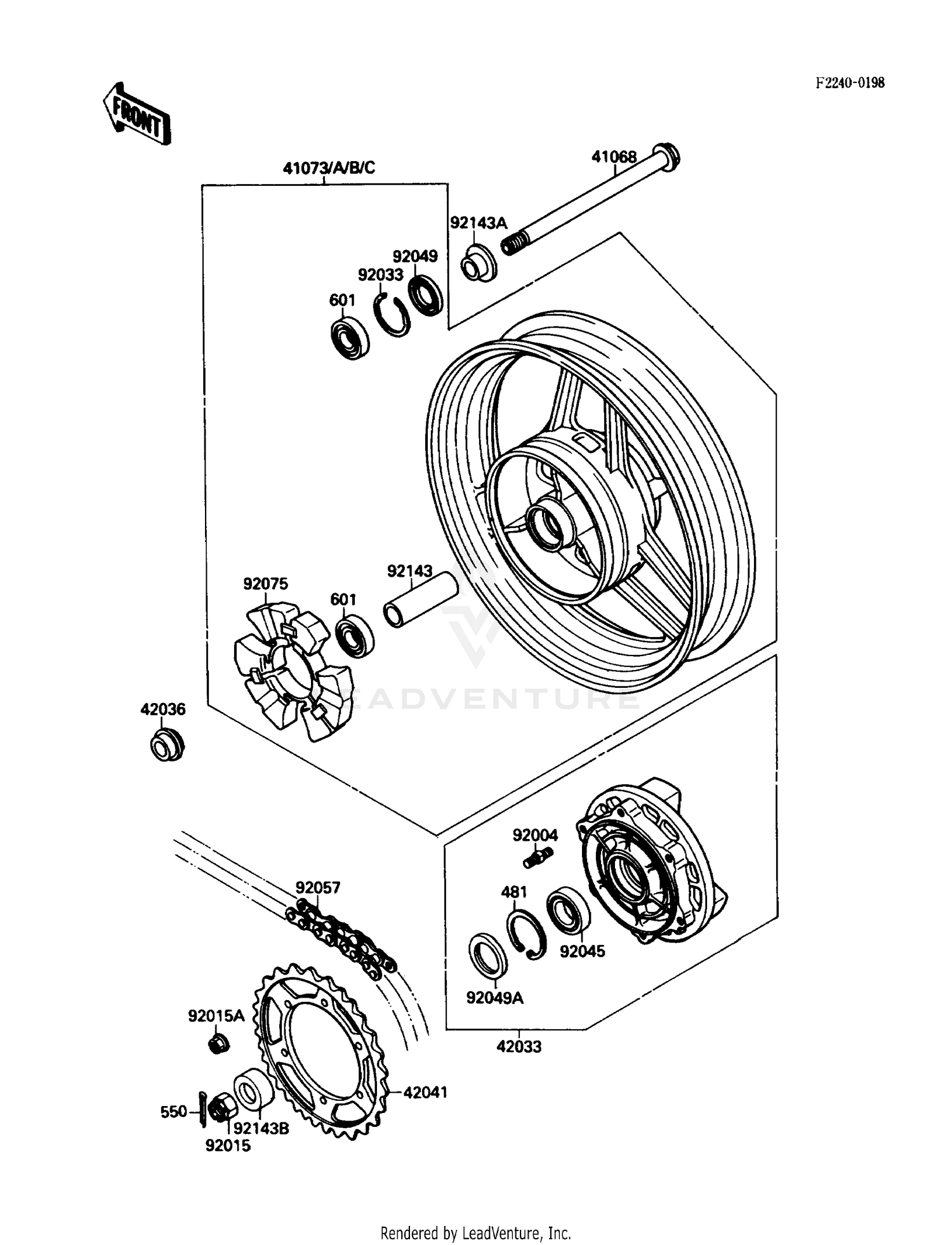

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#481
RING-SNAP,55MM
481J5500
Superseded by 92033-1274
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,6204UUC3
601B6204UU
|
$28.82 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1234
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#41073A
WHEEL-ASSY,RR,BLACK
41073-1345-R2
|
$720.06 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-1122
|
$215.90 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,L=29
42036-1197
|
$26.79 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,47T
42041-1278
Superseded by 42041-1201
|
$117.43 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-1151
Superseded by 92004-0028
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,FLANGED,10MM
92015-1502
Superseded by 92210-1080
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,#7006
92045-1196
|
$71.47 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN28475
92049-1056
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,PJN40556
92049-1263
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK50MV-OX110L
92057-1221
|
$500.36 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,REAR HUB SHOCK
92075-1908
|
$93.51 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,REAR AXLE,L=11
92143-1034
Superseded by 92143-1390
|
$39.14 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,L=23
92143-1042
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#92143B
COLLAR,REAR AXLE,L=14
92143-1094
|
$31.80 | ||
|
Available to order. Add to View Price |
|||
