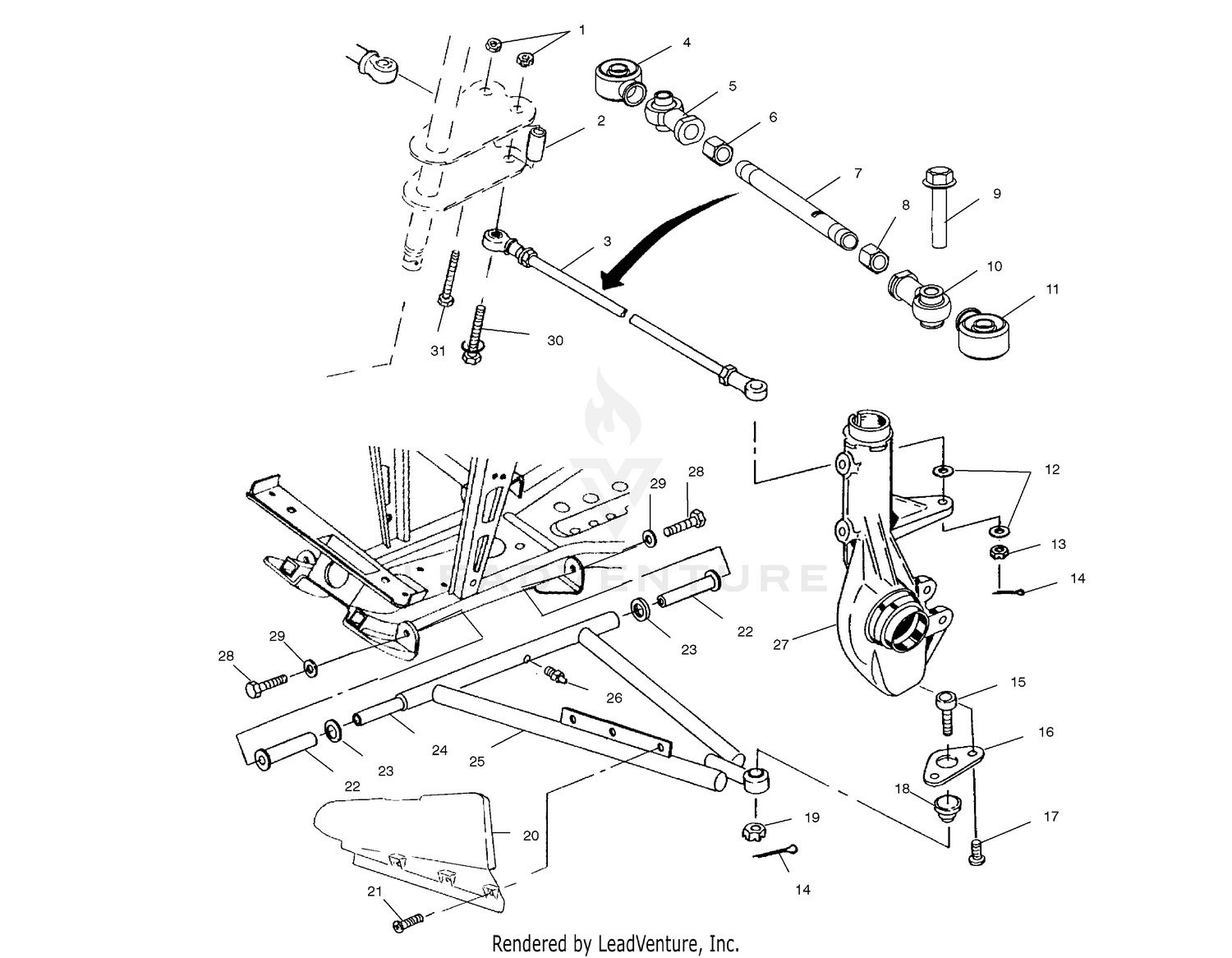

A-arm/strut Mounting - A00ch46ca (4954785478c001) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING
5333367
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Tie Rod
1820805
Superseded by 1822852
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT, SEAL, ROD END
5411291
Superseded by 5412928
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, END
7061034
Superseded by 7061139
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-JAM(10)
7542711
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD,TIE
5020926
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,LH,JAM(10)
7547028
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
7517674
Superseded by 7517909
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, END
7061054
Superseded by 7061138
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT, SEAL, ROD END
5411920
Superseded by 5412929
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
7556099
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CASTLE(10)
7546904
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN COTTER(10)
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BALL-JOINT,GREASELESS,STRUT
7080673
Superseded by 7061158
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET-BALL JOINT
5211121
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT-BALLJOINT,GREASELESS,STRT
5410548
Superseded by 5412658
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-3/8-24 HX CA GR5-Y
7542438
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIELD,LH.CV,BLK.
5431837
|
$28.99 | ||
|
Unavailable |
|||
|
#20
SHIELD,RH.CV,BLK.
5431838
|
$28.99 | ||
|
Unavailable |
|||
|
#21
SCREW(10)
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bushing, A-Arm, Long
5433066
Superseded by 5436973
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSHING,A-ARM SPACER(10)
5020677
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Shaft, A-Arm
5020681
Superseded by 5133806
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Kit, A-Frame, LH
2201607
Superseded by 2202280
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Kit, A-Frame, RH
2201608
Superseded by 2202281
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
ZERK,FITTING,THREADED(10)
7080433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Asm., Heavy Hubstrut
-------
|
|||
|
Unavailable |
|||
|
#28
SCREW(10)
7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER(10)
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT (10)
7517527
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT(10)
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
